A paper cup forming machine, also called a paper cup making machine or automatic paper cup forming machine, is used to produce disposable paper cups from PE-coated paper. The paper cup machine feeds paper blanks, seals the side seam, attaches the bottom, and forms the rim in one continuous process. For paper cup factories, disposable tableware manufacturers, and packaging startups, this disposable paper cup making machine provides efficient, high-volume production with consistent quality.
YG Machinery offers paper cup forming machines in low-speed (70-90 cups/min), medium-speed (90-120 cups/min), and high-speed (120-150 cups/min) configurations. Cup sizes range from 3 to 16 ounces. Both single PE and double PE coated paper are supported.
Typical specifications include:
- 70-90 / 90-120 / 120-150 cups per minute
- 3-16 oz cup size range
- Single PE / double PE coated paper
- 150-350g/m² paper weight
- Ultrasonic side sealing
Technical Parameters of Paper Cup Forming Machine
| Model | YG-DP16 | YG-Gs120 | YG-160S |
| Speed | 70-90 cups/min | 90-120 cups/min | 120-150 cups/min |
| Cup size range | 3-16 oz | 3-16 oz | 3-16 oz |
| Raw material | Single/double PE, PLA | Single/double PE, PLA | Single/double PE, PLA |
| Paper weight | 150-350g/m² | 150-350g/m² | 150-350g/m² |
| Voltage | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| Side sealing | Ultrasonic | Ultrasonic/copper strip | Ultrasonic |
| Bottom knurling | Hot air system | Hot air system | Hot air system |
| Weight | 1750kg | 2100kg | 4000kg |
| Machine size (LxWxH) | 2200x1250x1900mm | 2180x1050x1600mm | 2800x1100x1800mm |
All models feature automatic paper feeding, sealing, bottom punching, heating, knurling, curling, and cup ejection. Photoelectric detection and fault alarm are standard.
Key Features of Automatic Paper Cup Forming Machine
High production speed – Three speed options: 70-90, 90-120, and 120-150 cups per minute. Choose the speed that matches your production needs.

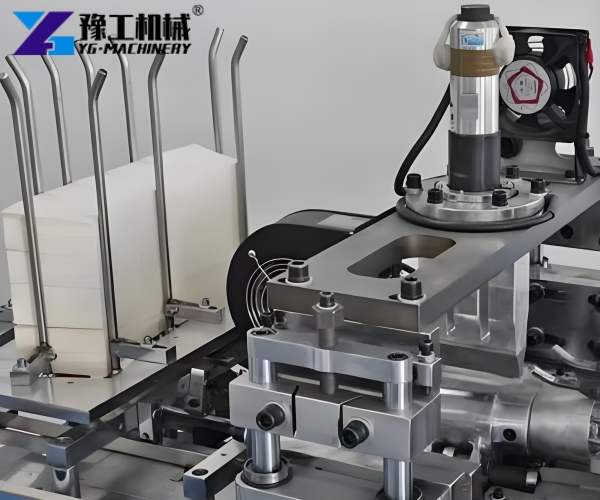

Ultrasonic side sealing – Provides strong, consistent side seams. Seals are leak-proof and smooth. Longer service life than traditional sealing methods.
Hot air bottom knurling – Ensures a tight bottom seal. Prevents leakage. Reduces scrap rate.
Automatic lubrication system – Reduces wear on mechanical parts. Extends machine life. Lowers maintenance frequency.
Photoelectric detection – Detects paper misalignment and machine faults. Stops the machine automatically when problems occur. Prevents waste.
PLC control system – Intelligent control for all machine functions. Easy to adjust settings. Reliable and stable performance.
Multi-station operation – Automatic paper feeding, sealing, bottom punching, heating, knurling, curling, and ejection. One machine completes all steps.
Stainless steel construction – Clean and sanitary. Resistant to wear and corrosion. Meets food safety standards.
Quick mold change – Change molds for different cup sizes in 30-60 minutes. Flexibility for varied production needs.
Raw Materials and Cup Sizes
Raw materials:
| Material | Description | Best for |
| Single PE coated paper | One side coated with PE film | Hot drinks (coffee, tea, hot water) |
| Double PE coated paper | Both sides coated with PE film | Cold drinks (ice cream, cold beverages) |
| PLA coated paper | Biodegradable coating | Eco-friendly, compostable cups |
Paper weight: 150-350g/m²
Cup sizes:
| Size range | Applications |
| 2-9 oz | Tasting cups, small drinks, sample cups |
| 3-16 oz | Standard cups for coffee, tea, beverages |
| 6-22 oz | Large cups, soup cups, food containers |
YG provides customized molds for special cup sizes. Tell us your cup size requirements. We will design the mold accordingly.
Export Case and Customer Feedback
Export Case: Brazil
YG exported 10 paper cup forming machines to a paper cup manufacturer in Brazil. The customer required machines with 90-120 cups/min speed for producing 8oz coffee cups. YG provided YG-Gs120 models with custom molds and operator training.
Results after 6 months:
- Production increased by 250% compared to their previous semi-automatic machines
- Labor reduced from 5 workers to 2 operators per shift
- Cup quality passed all food safety inspections
- The customer ordered 3 more machines for their second factory
Export Case: Saudi Arabia
YG supplied a complete paper cup production line to a factory in Riyadh. The line included a printing machine, die cutting machine, paper cup forming machine, and packaging equipment.
Results:
- Full production line installed and commissioned in 20 days
- Production: 100,000 cups per day
- Output covers the Saudi market demand for 7oz coffee cups
Customer Feedback
USA customer: “YG’s paper cup forming machine is easy to operate and has high production efficiency. It saves us a lot of labor costs. The paper cups produced are of excellent quality.”
Turkey customer: “We are very satisfied with the performance of the YG paper cup machine. The high degree of automation improves our production efficiency. YG’s after-sales service is responsive.”
UAE customer: “The paper cup machine is beautifully designed and produces high-quality paper cups. The multi-station operation allows us to produce large quantities in a short time.”
Frequently Asked Questions
Q: What is the difference between low, medium, and high speed paper cup forming machines?
A: The speed difference is the main distinction. YG-DP16 produces 70-90 cups/min. YG-Gs120 produces 90-120 cups/min. YG-160S produces 120-150 cups/min. Choose based on your production volume.
Q: What cup sizes can this paper cup making machine produce?
A: All three models produce 3-16 oz cups as standard. Custom molds are available for 2-9 oz and 6-22 oz cup sizes.
Q: What raw materials are compatible with the paper cup forming machine?
A: Single PE coated paper, double PE coated paper, and PLA coated paper. Paper weight should be 150-350g/m².
Q: How many workers are needed to operate the machine?
A: One operator per machine. The machine is fully automatic. The operator monitors the machine and adds raw materials.
Q: How long does it take to change the mold for a different cup size?
A: Mold change takes 30-60 minutes depending on the size difference. YG provides mold change guidance.
Q: What is the scrap rate of this automatic paper cup forming machine?
A: The scrap rate is very low. Photoelectric detection and automatic fault alarm prevent waste during production.
Q: What is the warranty?
A: The machine has a 12-month warranty. Technical support is available during the warranty period and beyond.
Q: What is the price of a paper cup forming machine?
A: Price depends on speed, configuration, and mold options. The YG-DP16 is the most affordable. The YG-160S costs more. Contact us for a quote based on your production needs.
Q: Do you provide the full paper cup production line?
A: Yes. YG provides printing machines, die cutting machines, paper cup forming machines, and packaging equipment. One-stop solution for paper cup production.
