Portable Hydraulic Rock Splitter | Rock Splitting Equipment

Indoor demolition. Narrow tunnels. Basement excavation. Rock needs to break. But blasting is not allowed. Jackhammers are too loud. A portable hydraulic rock splitter delivers the solution. No vibration. No flying debris. Just controlled splitting power. One person carries it through standard doorways. For confined spaces and sensitive environments, our portable hydraulic rock splitter gets the job done safely and quietly.

YG Machinery offers reliable portable hydraulic rock splitters for demolition and excavation projects.

Get a Free Quote

What Is a Portable Hydraulic Rock Splitter?

A portable hydraulic rock splitter is a lightweight splitting tool that uses hydraulic pressure to break rock and concrete without blasting or vibration. The machine consists of a small hydraulic pump station and a splitting gun. The operator drills a hole, inserts the gun, and activates the hydraulic system. The splitter expands and cracks the material in seconds.

Suitable for:

Indoor demolition and basement excavation
Narrow tunnels and confined spaces
Small-scale mining and quarrying
Slope stabilization and rock removal
Sensitive areas where blasting is prohibited

Advantages:

240-260kg total weight – easy to move
One-person operation – saves labor
No vibration – protects surrounding structures
No noise – works in sensitive environments
No flying debris – safe for workers
500-800T splitting force – handles hard rock

Technical Parameters of Portable Hydraulic Rock Splitter

Parameter	YG-250	YG-350	YG-450
Wedge length	250mm	350mm	450mm
Piston stroke	90/220mm	90/220mm	90/220mm
Drilling depth	>500mm	>700mm	>900mm
Drilling diameter	42mm	46mm	46mm
Crack width	10-20mm	10-20mm	10-20mm
Splitting time	10-15s	10-15s	10-15s
Splitting force	500T	800T	800T
Weight	240kg	250kg	260kg

All models feature a diesel power pack with pressure adjustable 10-60Mpa.

Get a Free Quote

Main Structure of Lightweight Rock Splitter

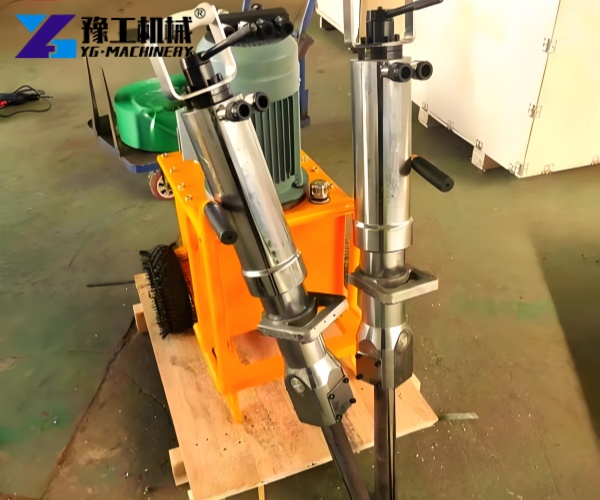

A portable hydraulic rock splitter has several main parts:

Hydraulic pump station – Powers the entire system. Diesel or electric motor options. Pressure adjustable 10-60Mpa.

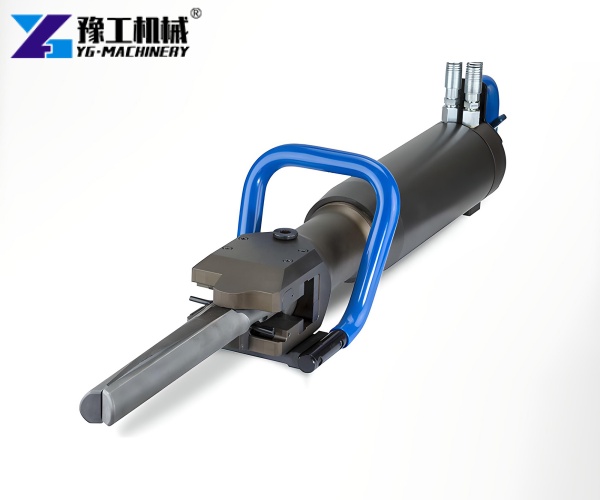

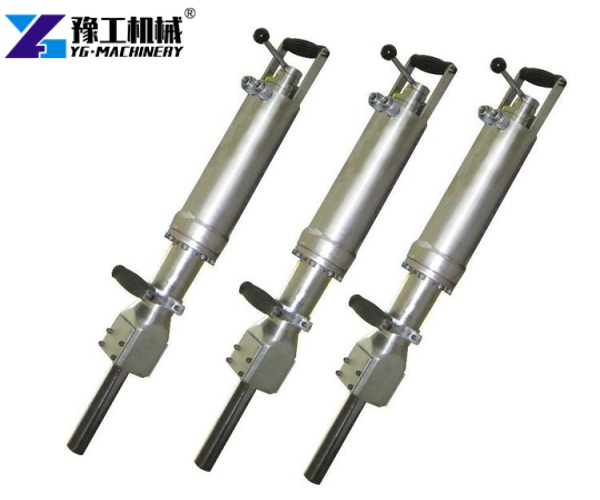

Splitting gun – The tool inserted into the drilled hole. Houses the wedge mechanism.

Wedge group – Consists of a center wedge and two side wedges. Expands under hydraulic pressure to split the rock.

High-pressure hoses – Connect the pump station to the splitting gun. Transmit hydraulic oil.

Control valve – Operated by the user. Activates and releases pressure.

Carrying handles – Allows one person to move the splitter.

Working Principle of Hydraulic Stone Splitter

Step 1: Drill the hole

Drill a hole in the rock or concrete. Hole diameter matches the splitter: 42mm or 46mm. Depth must be at least 500mm.

Step 2: Insert the splitter

Place the splitting gun into the drilled hole. Ensure the wedge is aligned with the desired splitting direction.

Step 3: Apply hydraulic pressure

The pump station sends high-pressure oil to the splitting gun. The pressure pushes the center wedge forward.

Step 4: Wedges expand

The center wedge forces the side wedges outward. Lateral pressure builds inside the hole.

Step 5: Rock splits

The rock cracks along the weak line. Splitting takes 10-15 seconds. No vibration. No noise.

Step 6: Release pressure

The center wedge retracts. The splitter is removed from the hole. Repeat the process for the next hole.

Core Advantages of Handheld Rock Splitter

Many contractors now choose portable rock splitters because they work where blasting and jackhammers cannot.

Lightweight and portable – 240-260kg total weight. One person can move the machine through doorways and narrow passages.
One-person operation – One operator drills, inserts, and splits. No crew needed. Saves labor costs.
No vibration – Protects existing structures. Works next to sensitive equipment. No cracks in adjacent walls.
No noise – Operates quietly. Works in hospitals, schools, and residential areas. No complaints.
No flying debris – Safe for workers. No protective barriers needed. Works in occupied buildings.
Controlled splitting – Splits in the predetermined direction. Precise and accurate.
Fast operation – Each split takes 10-15 seconds. Continuous operation possible.
Low maintenance – Simple design. Forged steel wedges. Long service life.

Application of Portable Rock Splitter

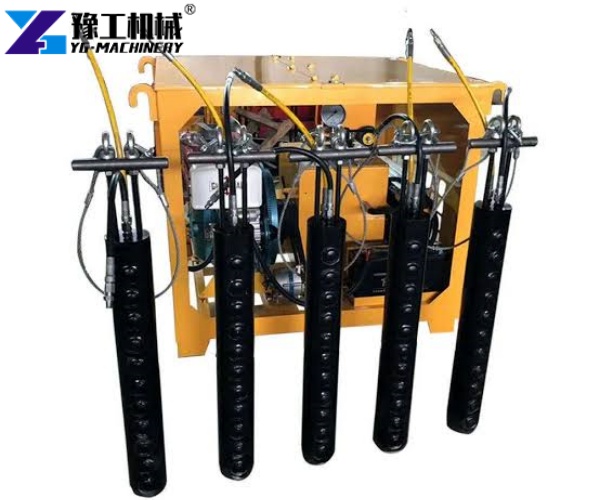

Indoor demolition – Remove concrete floors, walls, and foundations inside buildings. No vibration damage to remaining structure. No noise complaints from neighbors.

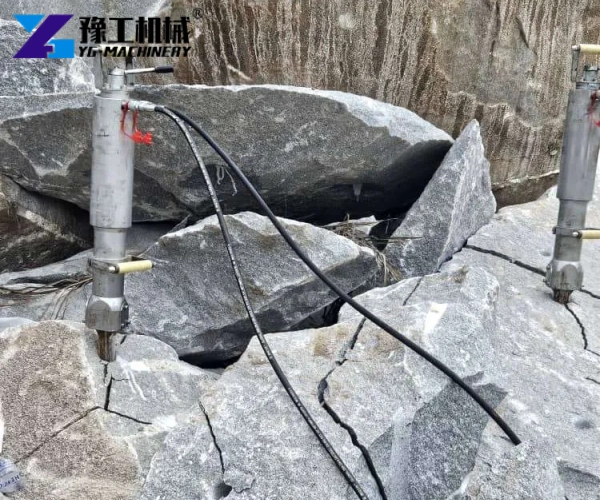

Confined spaces – Work in narrow tunnels, basements, and shafts. The splitter fits through small openings. One person operates in tight conditions.

Small-scale mining – Split rocks in small quarries and mines. No blasting permits required. Safe and economical.

Slope stabilization – Remove unstable rocks from slopes. Work near roads and buildings. No vibration to trigger further rockfall.

Reinforced concrete demolition – Split concrete with rebar. The splitter cracks the concrete; rebar can be cut separately.

Emergency rescue – Clear rocks after landslides or earthquakes. No blasting near trapped victims.

Underwater work – Work in shallow water. Split rocks for foundation or bridge repairs.

Get a Free Quote

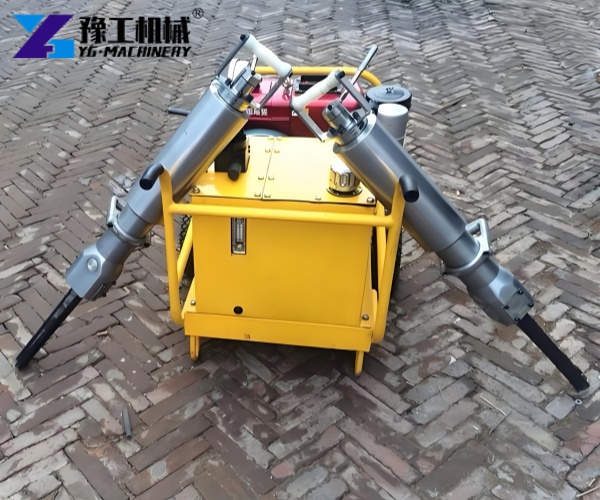

Customer Case – Basement Excavation in a City Center

A contractor in a European city needed to excavate a basement for a new building. The site was surrounded by existing structures. Blasting was not permitted. Jackhammers caused vibration complaints from neighbors.

The contractor chose YG-350 portable hydraulic rock splitters. Two machines worked simultaneously. Workers drilled holes at 500mm spacing. Each split took 12 seconds. The rock cracked along the planned lines.

The excavation was completed in 10 days. No damage to adjacent buildings. No blasting permits needed.

Results:

Excavation completed on schedule
Zero vibration damage to neighboring buildings
Zero noise complaints
Labor: 3 workers (vs 8 workers for jackhammer method)

The project manager said: “The portable hydraulic splitter is ideal for city work. Quiet. Safe. Precise. We will use it on every urban project from now on.”
