Pouring concrete on site sounds simple. But many contractors struggle with slow manual labor, uneven placement, and high fuel costs for diesel pumps. An electric concrete pump solves these problems fast. It delivers concrete smoothly through pipelines. No wheelbarrows. No heavy lifting. One machine does the work of several workers. This small concrete pump for sale is ideal for residential and commercial projects.
YG Machinery offers electric concrete pumps for residential buildings, road repair, tunnels, and infrastructure projects. Our mini concrete pump for sale is perfect for tight urban sites.
Technical Parameters of Electric Concrete Pump
| Model | YG-20 | YG-30 | YG-40 | YG-50 |
| Motor power | 22KW | 37KW | 45KW | 55kw |
| Max outlet pressure | – | 26mpa | 28mpa | 28mpa |
| Max theoretical throughput | 16-18m³/h | 16-18m³/h | 20-22m³/h | 35m³/h |
| Max aggregate size | ≤20mm | ≤20mm | ≤30mm | ≤40mm |
| Vertical distance | 40m | 80m | 120m | 150m |
| Horizontal distance | 80m | 140m | 260m | 300m |
| Pipe diameter | 80mm | φ80(100)mm | φ100(80)mm | φ125/100mm |
| Weight | 1600kg | 2200kg | 2400kg | 2500kg |
| Dimensions (mm) | 3400×1200×1600 | 3600×1500×1600 | 4000×1500×1550 | 4200×1700×1750 |
How This Concrete Delivery Pump Works?
The concrete delivery pump operates in a simple, continuous cycle.
1. Connect to power – Plug into a stable electric source. No fuel needed. No refueling stops.
2. Receive concrete – A mixer truck pours ready-mixed concrete into the hopper. The pump does not mix concrete. For on-site mixing, consider a concrete mixer and pump combination.
3. Pump through pipelines – The hydraulic system moves concrete forward with strong, stable pressure. The electric motor drives this static concrete pump continuously.
4. Precise pouring – Operators control flow and speed. Clean, even placement in molds, foundations, or tight spaces.
Key Features of Small Concrete Pump for Sale
Zero emissions – No exhaust fumes. Safe for indoor use in basements, tunnels, and enclosed spaces. No smell, no harmful gases.
Quiet operation – Electric motor runs quietly. Work at night in residential areas without complaints. Ideal for urban construction.
Low maintenance cost – No fuel engine means fewer wearing parts. No oil changes. No fuel filters. Less downtime, lower yearly cost. The mini concrete pump price is offset by long-term savings.
Long service life – Electric systems have stable performance. With proper care, the pump works for many years without major breakdowns.
High pumping efficiency – Steady pressure keeps concrete flowing reliably even through long pipelines or up high floors.
Simple operation – One worker controls the machine. Basic training is enough to start safely.

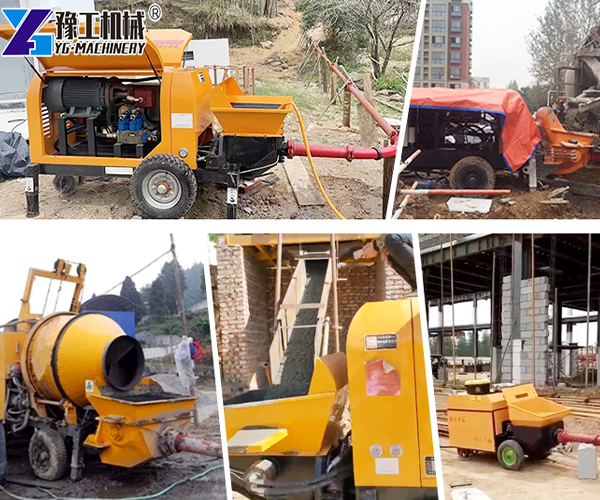

Applications of Trailer Mounted Concrete Pump
This trailer mounted concrete pump is used in many small and medium construction jobs. Its compact size, quiet operation, and zero emissions make it flexible for a wide range of tasks.
1. Indoor Floor Construction – Pour concrete for houses, warehouses, and workshops. Works safely in closed spaces because there are no exhaust fumes.
2. Basement Projects – Basements often have narrow entrances and poor ventilation. The pump’s compact size and low-noise design make it very suitable for these areas.
3. City Road Repair – Road repair in cities requires fast and clean work. The pump delivers concrete quickly without disturbing nearby residents.
4. Tunnel Engineering – Tunnels have limited space and need quiet equipment. The low-noise concrete pump helps workers complete the job safely.
5. Residential Building Construction – Pour foundations, floors, and columns for houses and small apartments. The pump reaches higher floors easily.
6. Bridge and Infrastructure Projects – Deliver concrete to abutments, piers, and deck slabs. Stable pressure ensures continuous flow.
7. Rural Housing and Farm Buildings – Work where ready-mix trucks cannot reach. The pump places concrete exactly where needed.
8. Slope Protection and Irrigation Works – Pour concrete for canals, ditches, and slope stabilization in agricultural and infrastructure projects.
Electric Concrete Pump vs Diesel Pump
| Comparison | Electric Concrete Pump | Diesel Concrete Pump |
| Emissions | Zero | Exhaust fumes |
| Noise level | Low | High |
| Fuel cost | Low (electricity) | High (diesel) |
| Maintenance | Fewer moving parts | More parts to service |
| Best for | Indoor, urban, night work | Remote sites without power |
| Indoor use | Yes | No (fumes harmful) |
| Operating cost over time | Lower | Higher |
Choose electric for city construction, indoor work, and projects near homes. Choose diesel for remote areas without power lines.
Customer Case: Mini Concrete Pump for Sale in Mexico
A contractor in Mexico City needed to pour concrete for a 5-story residential building. The site was in a dense urban area with narrow streets and noise restrictions. Neighbors complained about loud diesel pumps on previous jobs.
He chose a YG electric concrete pump. The machine ran quietly. No exhaust fumes. Neighbors did not complain. The pump delivered concrete up to the fifth floor through a 80mm pipeline. This mini concrete pump for sale proved its value on this project.
The results:
- Pumping completed in 5 days
- Zero noise complaints from neighbors
- No fumes inside the building
- Labor reduced from 6 workers to 3
- The contractor now uses electric pumps on all his city projects
The contractor said: “The electric pump is much quieter than diesel. No complaints from neighbors. No fumes for my workers. The mini concrete pump price was worth every dollar.”
How to Choose the Right Concrete Pumping Machine?
Selecting the right concrete pumping machine depends on your project size, pumping distance, and power availability.

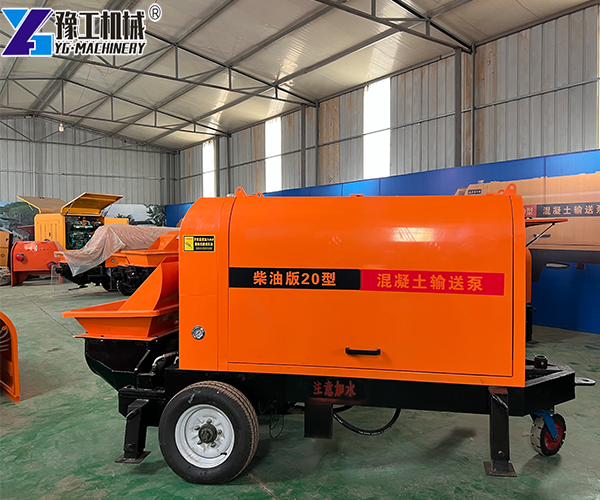

1. Small projects, tight spaces – Choose YG-20 (22KW, 16-18m³/h). Ideal for small houses, basements, and indoor work. This small concrete pump for sale fits through standard doorways.
2. Medium projects, daily use – Choose YG-30 (37KW, 16-18m³/h). Best balance of size and output. Handles 8-story buildings.
3. Large projects, high volume – Choose YG-40 or YG-50 (45-55KW, 20-35m³/h). For long distances and high-rise buildings up to 15 stories.

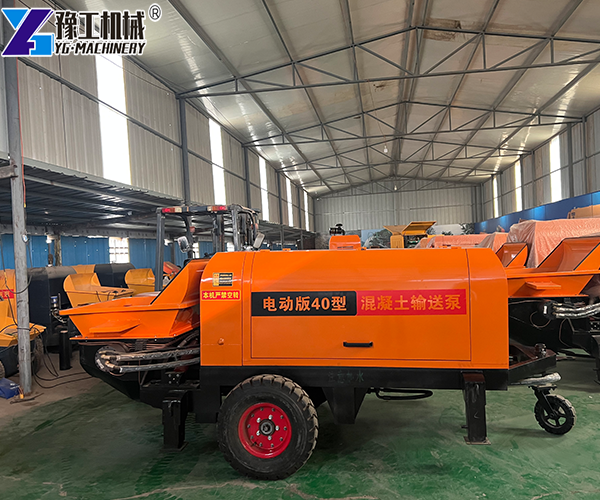

4. Need long horizontal distance – YG-40 pumps up to 260 meters horizontally. Perfect for tunnels and long foundations.

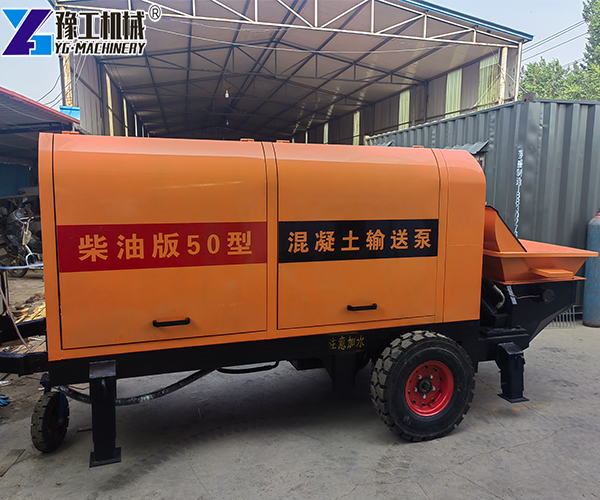

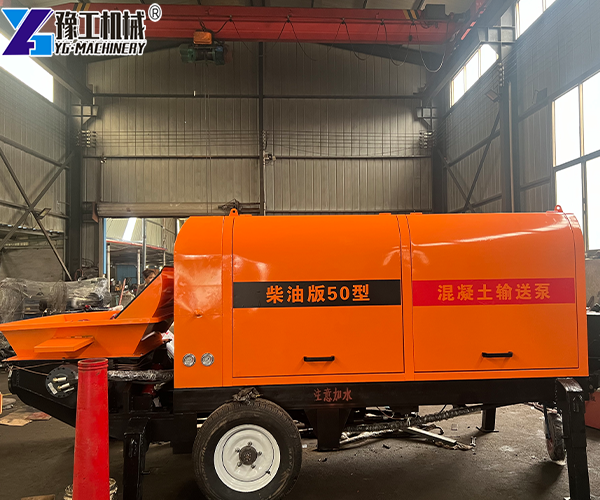

5. Need high vertical reach – YG-50 pumps up to 150 meters vertically. Suitable for high-rise construction.
Not sure? Tell us your building height and daily concrete volume. YG will recommend the right electric concrete pump for sale.
Maintenance Tips for Static Concrete Pump
Good maintenance helps extend the life of your static concrete pump and ensures safe daily operation.
1. Clean the pipeline – After each job, clean the pipeline and hopper to prevent concrete buildup. Hardened concrete causes blockages.
2. Check motor temperature – During long working hours, check the motor temperature to ensure it stays within normal limits.
3. Inspect electrical system – Look for loose wires, damaged plugs, or worn connectors. A safe electrical system ensures stable performance.
4. Check hydraulic oil level – Low oil can damage the pump. Check before each use.
5. Lubricate moving parts – Follow the manual for lubrication points and intervals. Proper lubrication prevents wear.
FAQ About Concrete Mixer and Pump Options
Q: What is the price of an electric concrete pump for sale?
A: Price depends on model (YG-20 to YG-50) and configuration. The mini concrete pump price varies by capacity. Contact us for a quote based on your project needs.
Q: Can the pump mix concrete?
A: No. This concrete delivery pump only delivers concrete. For on-site mixing, look for a concrete mixer and pump combination.
Q: How far can it pump?
A: YG-20 pumps 40m vertical, 80m horizontal. YG-50 pumps 150m vertical, 300m horizontal. This trailer mounted concrete pump handles long distances easily.
Q: Can it work underground?
A: Yes. Zero emissions and low noise make this static concrete pump perfect for basements, tunnels, and other enclosed spaces.
