Mixing concrete on remote job sites sounds simple. But many contractors struggle with no power lines, slow manual mixing, and uneven concrete quality. A diesel concrete mixer solves these problems fast. It runs on diesel fuel, not electricity. No power lines needed. One machine does the work of several workers. Mixes concrete anywhere.
YG Machinery offers diesel concrete mixers for rural housing, road repair, bridges, and irrigation projects.
Technical Parameters of Diesel Concrete Mixer
| Model | YG350 | YG400 | YG500 | YG750 |
| Discharge capacity | 350L | 400L | 500L | 750L |
| Feed capacity | 560L | 650L | 800L | 1200L |
| Productivity | 10-14m³/h | 18-28m³/h | 14-18m³/h | 20-22m³/h |
| Drum speed | 14r/min | 14r/min | 13r/min | 13r/min |
| Max aggregate size | 60mm | 60mm | 60-80mm | 60-80mm |
| Stirring motor | 5.5KW | 7.5KW | 11KW | 15KW |
| Lifting motor | 5.5KW | 7.5KW | 5.5KW | 7.5KW |
| Dimensions (mm) | 2766×2140×3000 | 3850×2200×2850 | 5226×2200×5460 | 6116×2056×6060 |
| Total weight | 1950kg | 1950kg | 3100kg | 4200kg |
Diesel engine options available. No electricity required.

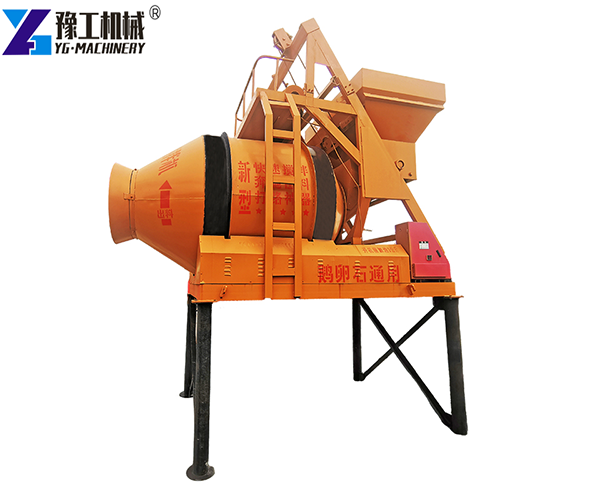

How This Concrete Mixer Equipment Works?
The concrete mixer equipment operates in a simple cycle.
1. Feed materials – Sand, cement, and gravel are loaded into the hopper. The hopper lifts and dumps materials into the drum.
2. Mix concrete – The diesel engine powers the rotating drum. The drum turns at 13-14 r/min. Materials are lifted and dropped repeatedly until fully mixed.
3. Discharge concrete – After mixing, the drum reverses direction. Concrete pours out into waiting wheelbarrows or directly onto the job site.
4. Repeat – One operator controls the whole process. The cycle takes 2-3 minutes per batch.
Key Features of Concrete Mixer Machine
No power lines needed – Runs on diesel fuel. Works anywhere. Perfect for remote mountain sites and rural construction.
Strong diesel power – The diesel engine delivers consistent torque. Handles tough mixing jobs without bogging down.
High productivity – Up to 28m³ per hour. YG350 produces 10-14m³/h. YG750 produces 20-22m³/h. Choose based on your daily needs.
Durable construction – Heavy-duty steel drum. Hardened wear-resistant blades. Built for daily use on construction sites.
Simple operation – One operator controls lifting, mixing, and discharging. No special training required.
Easy maintenance – Diesel engines are simple to service. Spare parts are readily available worldwide.
Mobile design – Moves around the job site. Can be towed between projects.
Diesel vs Electric Concrete Mixer
| Comparison | Diesel Concrete Mixer | Electric Concrete Mixer |
| Power source | Diesel fuel | Electricity (380V) |
| Best for | Remote sites, no power lines | Urban sites with power |
| Mobility | Highly mobile | Limited by cord length |
| Operating cost | Higher fuel cost | Lower electricity cost |
| Noise level | Louder | Quieter |
| Emissions | Exhaust fumes | Zero emissions |
| Indoor use | Not recommended | Yes |
Choose diesel for remote construction, mountain roads, and rural projects. Choose electric for city work and indoor use.
Applications of Mobile Concrete Mixer
This mobile concrete mixer is used in many construction jobs where power lines are not available or projects are too remote for ready-mix trucks. Its diesel power and mobility make it a flexible solution for a wide range of tasks.
1. Rural Housing Construction – Pour foundations, floors, and walls for homes in remote villages. No power lines needed. Mix concrete right where you build.
2. Road Repair and Maintenance – Fix potholes and damaged sections on rural roads. The diesel mixer moves with the repair crew.
3. Small Bridge Projects – Mix concrete for abutments and piers in remote areas. Ready-mix trucks cannot reach these locations.
4. Irrigation Canal Construction – Pour lining and structures along long canal routes. Move the mixer as the project advances.
5. Mountain Construction Sites – Work where roads are rough and power lines do not exist. Diesel power handles the altitude.
6. Emergency and Disaster Repair – Deploy quickly after floods or earthquakes. No waiting for power connection.
7. Agricultural Facility Construction – Mix concrete at the farm for barns, silos, and equipment sheds.
8. Remote Infrastructure Projects – Pour concrete for communication towers, pump stations, and solar panel bases.
Mobile Advantage: Take the Mixer Where You Need It
A diesel concrete mixer is designed for jobs where other mixers cannot go.
1. No power lines required – Works on diesel fuel. Start mixing immediately. No waiting for electricians.
2. Towable between sites – Move the mixer from one project to the next. No need to buy multiple machines.
3. Works in remote locations – Mountain roads, desert sites, jungle projects. The diesel engine runs anywhere.
4. Quick setup – Arrive on site. Add fuel. Start mixing. No assembly required.
5. Self-contained operation – Everything you need is on the machine. No external power source needed.
This concrete mixer for sale is the perfect solution for contractors who work away from power lines.
Customer Case: Mountain Road Project in Nepal
A construction company in Nepal was contracted to build a 25km mountain road connecting two remote villages. The site was in the Himalayas. No power lines. No ready-mix trucks. The only way to get concrete was to mix it on site.
Manual mixing was impossible. The project would take years. The contractor bought a YG diesel concrete mixer. The machine was towed up the mountain by a tractor.
The results:
- Concrete mixed on site using local materials
- 25km of road completed in 4 months
- 5 workers replaced by 2 operators
- No waiting for power connection
- The project finished ahead of schedule
The contractor said: “Without this diesel mixer, we could not have built this road. It runs all day on a tank of diesel. No power lines needed. It saved the project.”
How to Choose the Right Cement Mixer for Sale?
Selecting the right cement mixer for sale depends on your project size, daily concrete needs, and site conditions.
1. Small projects, tight budget – Choose YG350 (350L, 10-14m³/h). Ideal for small houses, farm buildings, and repair work.
2. Medium projects, daily use – Choose YG400 (400L, 18-28m³/h). Best balance of size and output. Most popular model.
3. Large projects, high volume – Choose YG500 or YG750 (500-750L, 14-22m³/h). For bridges, roads, and large pours.
4. Remote site, no power – Choose diesel engine. Works anywhere without electricity.
5. Need to move between sites – Choose wheeled models. Can be towed by truck or tractor.
Not sure? Tell us your project type and daily concrete volume. YG will recommend the right concrete mixer for sale.
