A fog cannon can shoot mist 20 meters or 120 meters. That is a huge difference.
Pick one too small, and dust keeps blowing past your work area. Pick one too big, and you waste money on power and water you do not need.
I have seen contractors buy the wrong size more times than I can count. A guy with a small demolition site bought a 100-meter cannon. It sat in the corner because it was overkill. Another guy with a large coal yard bought a 30-meter cannon. He ended up buying a second one six months later.
Here is how to match fog cannon spray range to your actual job site.
Quick Match – Find Your Spray Cannon Range in One Table
| Spray Range | Best For | Site Size |
| 20-30m | Small construction, indoor demolition, truck loading | Under 1 acre |
| 40-50m | Coal yard, recycling center, steel plant | 1-3 acres |
| 60-80m | Quarry, large demolition, port operation | 3-8 acres |
| 100-120m | Large mining, mega projects | 8+ acres |
Now let me walk you through each range.
20-30m Fog Cannon – Small Sites and Tight Spaces
These are for small jobs. Residential demolition on a tight lot. Indoor demolition inside a factory. A truck loading zone where dust only kicks up in one spot.
I watched a contractor use a 30m mist cannon on a small bridge demolition. The work area was half an acre. The cannon covered the whole site from one corner. He never had to move it.
Who needs this range:
- Small construction sites
- Indoor demolition projects
- Truck loading and unloading zones
- Tight spaces between buildings
What to expect:
Water flow is low enough to run from a garden hose. The machine is light enough for two people to move. Power is standard 380V or you can run it off a small generator.
If your site is smaller than one acre, start here. You will save money on the machine and on operating costs.
40-50m Spray Cannon – Coal Yard and Recycling Center Dust Control
Once your site hits 1 to 3 acres, you need more reach.
I visited a coal yard last year. Piles spread over two acres. Dust blew everywhere when loaders moved coal. They installed one 40m dust suppression cannon on a mobile trailer. They moved it to wherever the loader was working. One machine covered the whole yard.
Same thing at a recycling center. They crush concrete and sort debris. A 40m fog cannon spray mounted on a fixed pole covered the entire crushing area. The operator said dust complaints from neighbors dropped 80 percent.
Who needs this range:
- Coal yards and stockpiles
- Concrete recycling centers
- Steel plants
- Medium-sized demolition sites
You need a good water source at this range. A garden hose might not keep up. Plan for a water tank or a dedicated line.
60-80m Dust Suppression Cannon – Quarry and Port Operations
At 60 to 80 meters, you are in serious industrial territory.
A quarry operator in Saudi Arabia had a large crushing area. Dust was so thick that workers could barely see. They bought two 60m fog cannons for quarry dust suppression. Each covered a different section of the crusher. After installation, dust concentration dropped over 70 percent.
The manager told me the difference was night and day. They have since ordered more units for other projects.
Who needs this range:
- Quarries and stone crushers
- Ports and dock unloading areas
- Large building demolition
- Steel plants with multiple dust sources
For port dust control, an 80m cannon mounted on a tower works best. From up high, the mist spreads far and covers the whole unloading zone. The operator controls it from a remote cabin away from the dust.

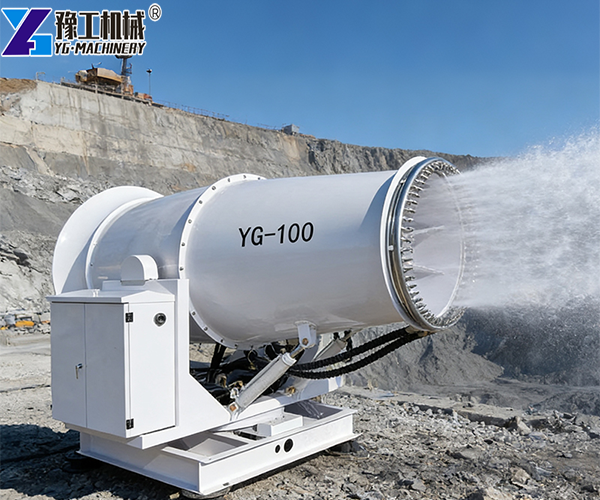

100-120m Mist Cannon – Large Mining Sites
These are for the biggest sites. Large mining operations. Mega construction projects like new airports or dams. You will not see these on small jobs.
A 100m spray cannon covers over 8 acres from one position. The mist is finer too, which means it stays in the air longer and catches more dust. For mining site dust suppression, this range is what you need.
Who needs this range:
- Large surface mines
- Mega construction projects
- Large port complexes
These machines are big and heavy. You need a concrete pad or a heavy truck to mount them. If you need this range, you probably already know. Your site is measured in hectares, not square meters.
Fixed, Mobile, or Truck-Mounted Fog Cannon?
Same range, different mobility. Here is how to choose.
Fixed fog cannon – Bolted to a concrete pad or steel tower. Best for permanent sites like ports and large quarries. Set it once and forget it.

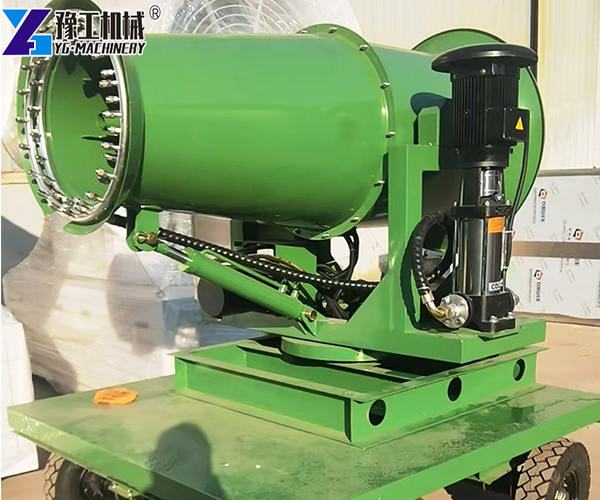

Mobile fog cannon – On a wheeled trailer. You tow it with a truck. Best for sites where the dust source moves. Coal yard piles shift. Move the cannon to where the dust is.
Truck-mounted fog cannon – On a truck bed. You drive it around. Best for road work, urban demolition, and large construction sites. Chase the dust as the work moves.
Real example: A demolition company used a truck-mounted 60m cannon. They moved it from building to building as each one came down. One truck. One operator. Covered the whole project.
Common Mistakes When Choosing Fog Cannon Range
I have seen these mistakes again and again.
Buying too small to save money – A contractor bought a 30m cannon for a 2-acre coal yard. The mist did not reach the far piles. Dust still blew off site. He bought a 60m cannon six months later. Spent more than if he had bought the right one first.
Buying too big for the space – A small demolition site bought a 100m cannon. It was huge. It blocked access. Water spray hit the street. Neighbors complained. He sold it at a loss.
Forgetting about water supply – A quarry operator bought a 60m cannon. His water tank was too small. He had to stop every 15 minutes to refill. Check your water source before picking a range.
Not planning for wind – Wind blows mist off course. A 60m cannon in calm air reaches 60 meters. In 15 mph wind, it might only reach 40 meters. If your site is windy, go up one size.
How to Choose Fog Cannon Range?
Here is a simple process.
1: Measure your work area – Walk the site. Note the farthest point from where you can place the cannon.
2: Add a buffer – Dust does not stop at a line. Add 10 to 20 meters to your measured distance.
3: Check your water supply – Can your tank or line supply the water? Bigger cannons need more water.
4: Decide on mobility – Fixed, mobile, or truck? Moving dust sources need wheels.
5: Consider the future – Will your site grow? Will you take on bigger jobs? If yes, buy one size bigger now.
6: Ask someone who knows – Tell a supplier your site size and dust type. Let them recommend a range.
One More Thing About Water for Your Dust Suppression Cannon
I mentioned this earlier, but it is important enough to repeat.
A 60m fog cannon uses a lot of water. A small one uses less. If your site has limited water, factor that into your choice.
Some customers add a water recycling system. Others use a larger holding tank. Talk to your supplier about water options before you buy.
Final Checklist Before You Buy
- Measured my site size
- Added a buffer for wind and coverage
- Checked my water supply
- Decided between fixed, mobile, or truck-mounted
- Thought about future job sizes
- Talked to a supplier about my specific site
Still Not Sure Which Spray Cannon Range Fits Your Site?
Tell YG Machinery your site size, what creates the dust, and how often you run. They will recommend a range. They have sold fog cannons to construction sites, coal yards, quarries, ports, and mines all over the world.
Get the right size the first time. Save money. Keep dust under control.
