Moving heavy loads in a warehouse sounds simple, but many business owners struggle with high fuel costs, exhaust fumes indoors, and noisy operation. An electric forklift truck solves these problems fast. It gives you a quiet, zero-emission lifting solution that works for warehouses, food processing plants, and retail back rooms. With 1-1.5 ton capacity and 3m lift height, our electric forklift trucks for sale help you move more goods with less cost and no fumes.
YG Machinery offers reliable electric forklift trucks for warehouse, logistics, and industrial applications.
Technical Parameters of Electric Forklift Truck
| Parameter | YG10 | YG15 | YG15F09 |
| Power type | Battery | Battery | Battery |
| Operation type | Driving style | Driving style | Driving style |
| Rated capacity | 1000kg | 1500kg | 1500kg |
| Load center | 500mm | 500mm | 500mm |
| Front overhang | 168mm | 168mm | 175mm |
| Wheelbase | 975-1020mm | 1127-1172mm | 996-1060mm |
| Service weight | 1700kg | 1990kg | 2250kg |
| Lift height | 3000mm | 3000mm | 3000mm |
| Mast extended height | 3530mm | 3530mm | 3560mm |
| Overhead guard height | 1965mm | 1965mm | 1965mm |
| Seat height | 930mm | 930mm | 930mm |
All models feature AC drive system, Curtis controller, and pure electric steering.

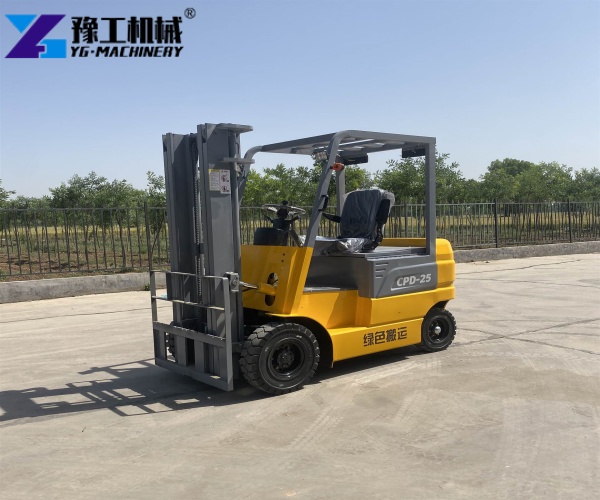

Main Structure of Small Electric Forklift
An electric forklift truck has several main parts:
Battery – Powers the entire machine. Converts chemical energy into electrical energy. Different battery types affect performance and price.
Drive motor – Moves the forklift forward and backward. AC motor provides quick response and accurate control.
Hydraulic system – Powers the lifting mechanism. Controls mast lift and fork tilt. Smooth and stable operation.
Mast – Vertical structure that guides the forks up and down. Standard 3m lift height. Higher options available.
Forks – Load lifting arms. Insert into pallets to lift and move goods.
Overhead guard – Protects the operator from falling objects. Standard height 1965mm.
Control lever – Multi-way valve controls lift and tilt. High control accuracy.
Steering system – Pure electric steering. Small steering force. Comfortable and energy saving.
Display screen – Shows battery level, speed, and operating hours.
Tires – Small-diameter load-bearing wheels. Reduce front overhang. Safer operation.

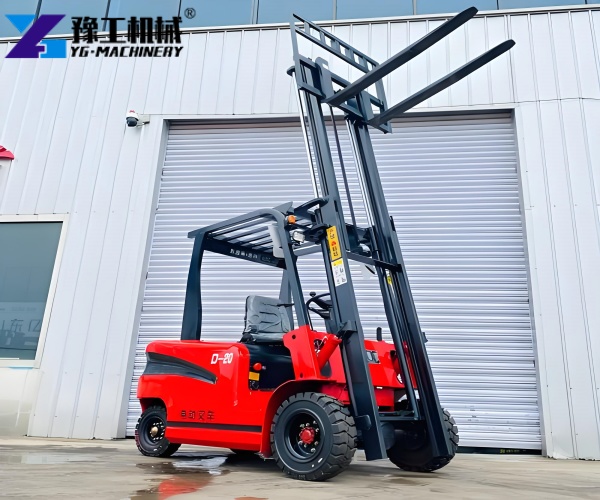

Core Advantages of Compact Electric Forklift
Zero emissions – Battery powered. No exhaust fumes. Safe for indoor use and enclosed spaces.
Quiet operation – Much quieter than diesel or gas forklifts. No roaring sound. Good for noise-sensitive environments.
Low operating cost – Electricity costs less than fuel. Saves money over time.
Low maintenance – No engine oil changes. No fuel filters. Fewer parts to maintain.
Easy to operate – Electric control system. Simple lever design. Novices learn quickly.
Smooth and stable – Advanced Curtis controller. Stable and safe performance.
Pure electric steering – Small steering force. Comfortable operation. Energy saving.
Speed limit protection – Turning speed limit. High lift speed limit. Standard safety features.
Compact design – Short wheelbase options. Turns in narrow aisles. Fits tight spaces.
Long service life – Advanced battery technology. Reliable motor system. Built to last.

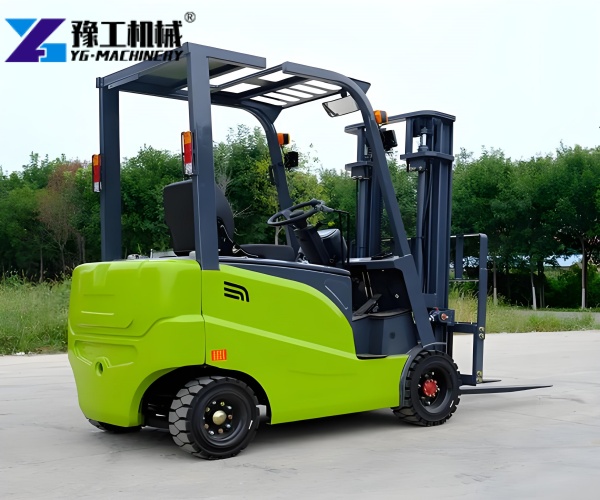

Application of Electric Lift Truck
This electric forklift works well in many environments:
- Food processing plants – Zero emissions keep products safe. No exhaust fumes in clean workshops.
- Supermarkets and retail back rooms – YG15F09 has shorter wheelbase. Moves easily between narrow racks.
- Logistics facilities – Quick loading and unloading. High daily cargo flow.
- Manufacturing warehouses – Supply materials to production lines. Stack finished goods.
- E-commerce fulfillment centers – Handle high volume of small to medium packages.
- Cold storage facilities – Battery power works in low temperatures.
- Recycling centers – Move bales and sorted materials.
Anywhere goods need to be moved indoors, this electric lift truck gets the job done.
Customer Case
A food distribution center in Toronto handled fresh and frozen goods. The warehouse used propane forklifts. Workers complained about fumes. The smell affected food quality. Ventilation was expensive.
The manager switched to YG15 electric forklift trucks. Zero emissions. No more fumes. Quiet operation. Workers were happier. Food quality improved.
The warehouse manager said: “The electric forklifts pay for themselves in fuel savings alone. No more propane bills. No more fume complaints. Cleaner and quieter.”
FAQ
Q: How long does the battery last on one charge?
A: A full charge supports a full work shift under normal operation. Charge overnight.
Q: How long does it take to charge?
A: Standard charging takes 6-8 hours. Fast charging options available.
Q: What is the turning radius?
A: YG10: 975-1020mm wheelbase. YG15F09 has the shortest turning radius for tight spaces.
Q: Can it be used outdoors?
A: Yes, on flat, paved surfaces. For rough terrain, consider other options.
Q: What safety features are included?
A: Overhead guard, turning speed limit, high lift speed limit, emergency stop.
Q: How much does an electric forklift truck cost?
A: Price depends on capacity, battery type, lift height, and attachments. Contact us for a quote.
Q: Do you offer lithium battery options?
A: Yes. Lithium batteries cost more but offer faster charging and no maintenance.
Why Choose YG Electric Forklift Truck
YG has been making electric forklifts for many years. Our forklifts feature maintenance-free AC drive systems for quick and accurate response. Advanced Curtis controllers ensure stable and safe operation. Pure electric steering is comfortable and energy saving.
YG electric forklift trucks have been exported to Canada, Germany, the United States, Australia, and many other countries. Customers choose YG for quality, performance, and value.
