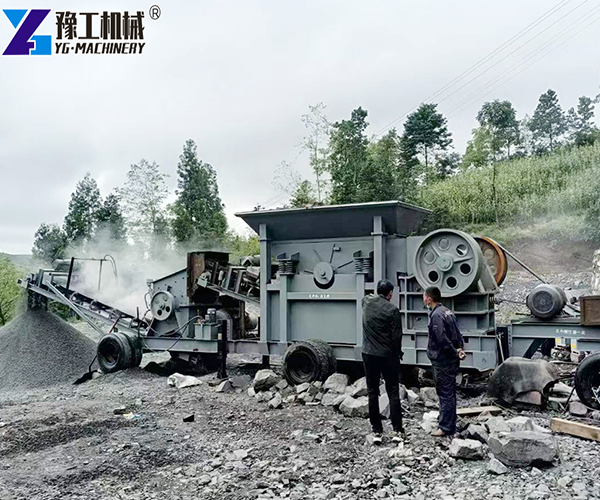

Crushing rocks and concrete sounds simple. But many contractors struggle with high transport costs, long wait times for material delivery, and the hassle of moving material to a fixed crushing plant. A mobile stone crusher plant solves these problems fast. This portable rock crusher moves to your job site, crushes material on location, and produces aggregate where you need it. No trucking fees. No waiting.
Technical Parameters of Mobile Stone Crusher Plant
| Model | 800×800 | 800×1000 | 1000×1200 | 1200×1200 | 1200×1500 | 1400×1600 |
| Motor power | 90kw×4G | 110kw×4G | 132kw×4G | 160kw×4G | 185kw×4G | 250kw×4G |
| Diesel power | 195HP | 195HP | 260HP | 330HP | 330HP | 400HP |
| Stone capacity | 50t/h | 70t/h | 80t/h | 90t/h | 120t/h | 180t/h |
| Sand capacity | 30t/h | 45t/h | 55t/h | 65t/h | 80t/h | 100t/h |
| Total weight | 10t | 12.5t | 14t | 19t | 21t | 26t |
| Overall size | 10×2.8×3.5m | 11×2.8×3.5m | 11.5×2.8×3.5m | 12×3×3.6m | 12×3×3.6m | 13×3.2×3.7m |
All models include hopper, belt conveyor, and wheels for site mobility.
For rough terrain and muddy sites, a tracked crusher for rough terrain offers better stability.
Types of Mobile Crusher Machine
YG offers three main types of mobile crusher plants. Each suits different job site conditions.

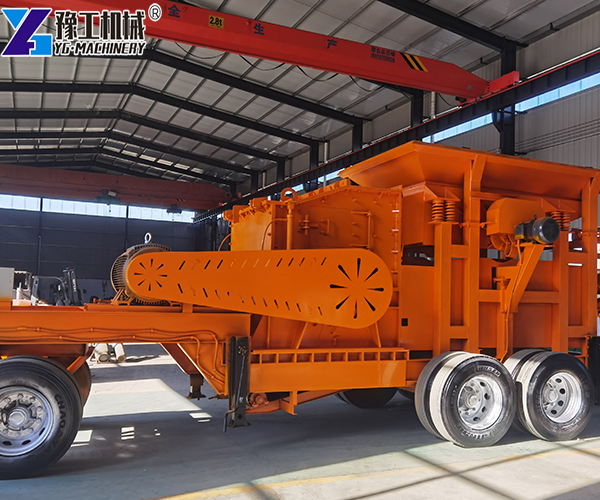

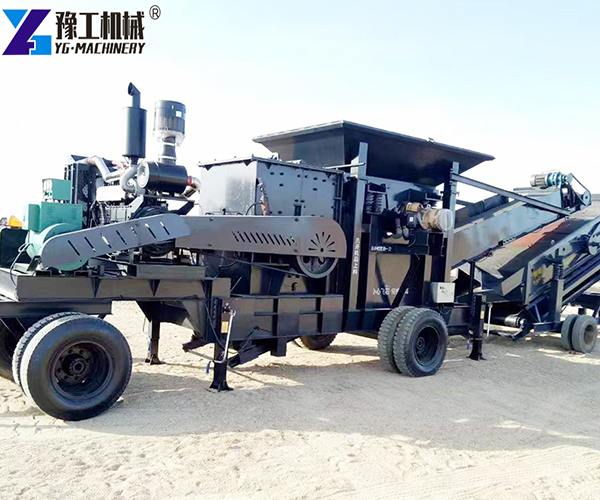

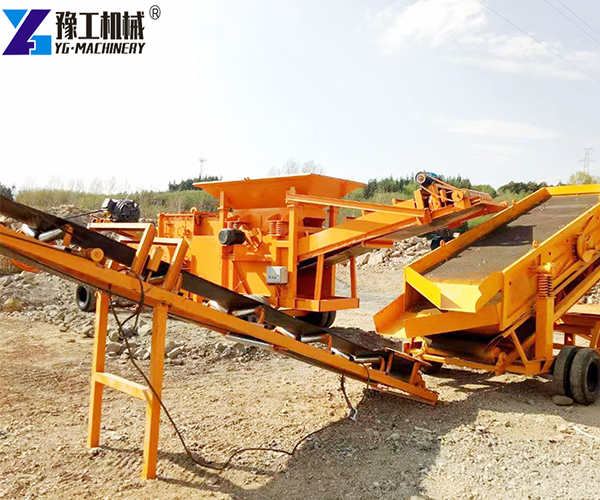

Wheeled mobile crusher – Moves on tires. Best for sites with good roads. Easy to tow between jobs. Setup takes hours, not days.

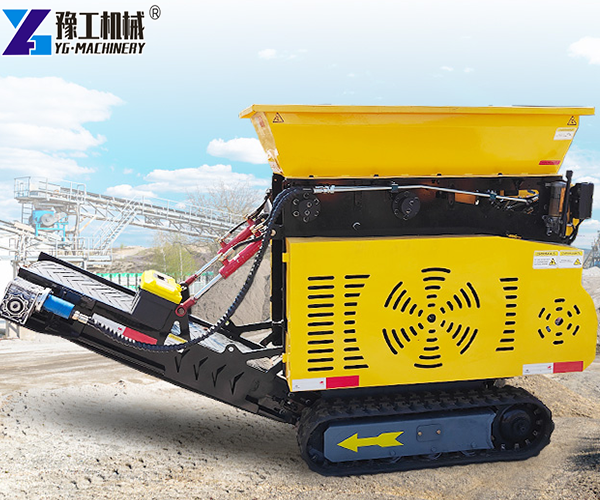

Tracked mobile crusher – Runs on crawler tracks. Best for rough terrain, muddy sites, and steep slopes. The tracks provide grip and stability. No road needed.

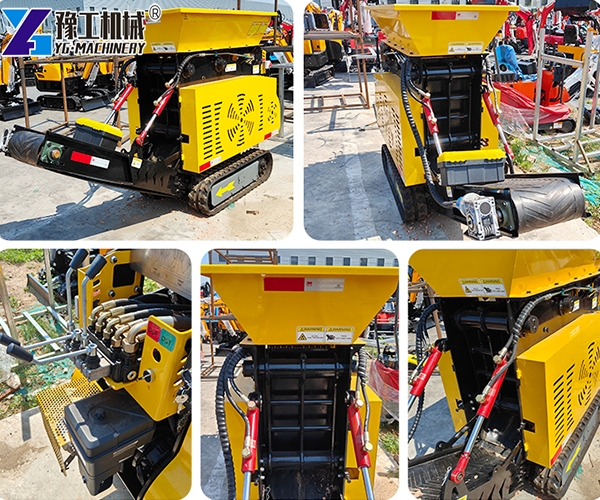

Small mini crusher – Compact size for tight spaces. Works in basements, narrow alleys, and indoor demolition. Fits through standard doorways.
Choose wheeled for road construction and quarry work. Choose tracked for mountain sites and demolition yards.
What Materials Can You Crush
This portable stone crusher handles many types of materials. It works on river rock, granite, basalt, limestone, and concrete waste. It also crushes asphalt, brick, and construction debris for recycling.
Output sizes you can produce:
- 0-5 mm – Fine sand for plaster and paving
- 5-10 mm – Small aggregate for concrete blocks
- 10-20 mm – Standard base material for roads
- 20-40 mm – Large stone for drainage and fill
Change the screen to change the size. One machine produces multiple products. You sell to different markets from the same site.
How a Mobile Rock Crusher Works
The mobile rock crusher works in a simple flow.

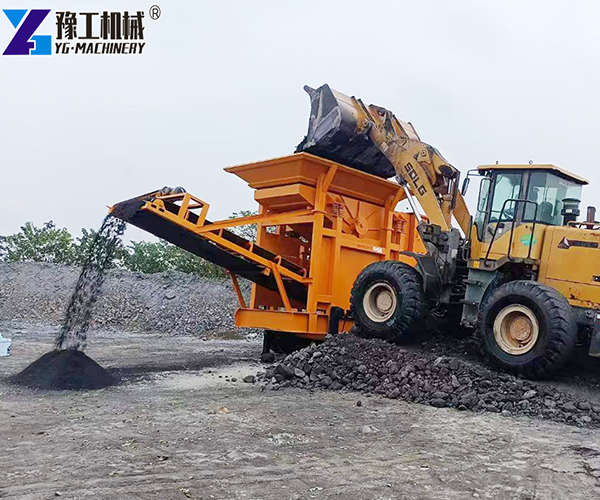

Step 1: Feeding – Load material into the hopper with an excavator or loader. The hopper feeds material onto the belt at a steady rate.
Step 2: Primary crushing – Material enters the crusher chamber. The moving jaw presses against the fixed jaw. Rocks break into smaller pieces.
Step 3: Screening – Crushed material moves to the vibrating screen. The screen separates material by size. Small pieces pass through. Large pieces go back for more crushing.

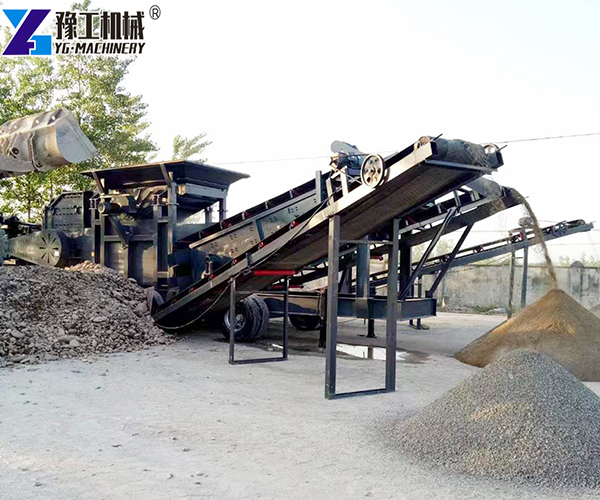

Step 4: Conveying – Finished aggregate drops onto the discharge belt. The belt loads directly into trucks or creates a stockpile.
The whole process runs continuously. One operator manages the machine from the control panel. Diesel or electric power options are available.
Key Advantages of Mobile Crushing Plant
Crush on site, save trucking – No need to haul rocks to a fixed crusher. No need to truck aggregate from a quarry. Save $5-10 per ton on transport.
Move between jobs fast – A wheeled mobile crusher tows behind a truck. Setup takes hours, not weeks. When one job ends, move to the next.
Works in tight spaces – The small footprint fits in demolition yards, basements, and narrow quarry faces. No large foundation needed.
Lower operating cost – One machine does crushing, screening, and conveying. No multiple machines. No extra loaders.
Diesel or electric power – Diesel for remote sites without power lines. Electric for lower operating cost where power is available.
Produces multiple sizes – Change the screen mesh to change output size. One machine makes sand, base course, and drainage stone.

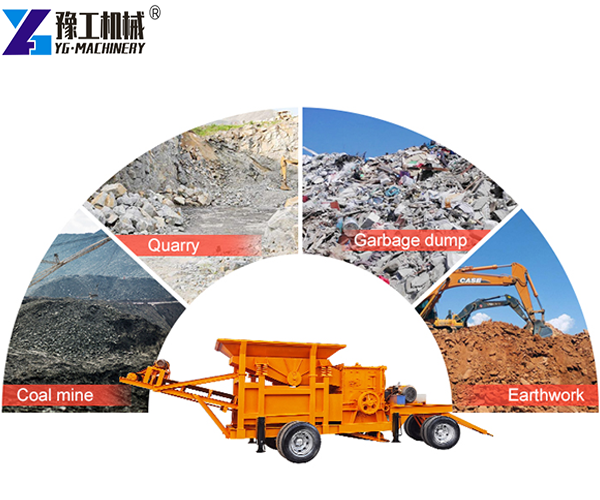

Applications of Portable Crusher Plant
Road and bridge construction – Produce base material, sub-base, and asphalt aggregate right at the job site. No waiting for quarry deliveries.
Concrete recycling – Crush old concrete slabs, foundations, and pavement into reusable aggregate. Sell it back to the same job.
Quarry and mining – Process rock at the face. Move the crusher as the quarry expands. No long conveyor belts.
Demolition projects – Crush building rubble on site. Remove rebar with a magnet. Turn waste into valuable fill material.
Municipal infrastructure – Produce aggregate for sidewalks, bike paths, and drainage ditches. Keep the project moving without outside suppliers.
Emergency road repair – Bring the crusher to landslide or flood sites. Produce repair material from local rock. No waiting for distant quarries.
For dust control at the crushing site, a fog cannon machine keeps the air clean.
Customer Case 1: Highway Project in the Philippines
A road construction company in the Philippines won a contract to rebuild 25km of mountain highway. The nearest quarry was 80km away. Trucking aggregate would cost $12 per ton and take 2 hours per load. The project timeline was tight.
The company bought a YG wheeled mobile stone crusher plant with 120t/h capacity. They set up the crusher at a riverbed 5km from the road site. Local river rock was free for the taking.
The results:
- Trucking distance cut from 80km to 5km. Transport cost dropped by 90%
- No waiting for quarry delivery. Crusher produced material as needed
- The road was finished on time, under budget
- After the road job, the crusher moved to a new project
The project manager said: “This mobile crusher saved our schedule. No waiting for trucks from the quarry. We made our own material right next to the road.”
Customer Case 2: Concrete Recycling in Australia
A demolition contractor in Sydney specialized in tearing down old industrial buildings. Each job produced thousands of tons of concrete rubble. Disposal cost was high. Landfill fees were rising.
The contractor bought a YG tracked mobile crusher plant. They set it up at each demolition site. Concrete rubble went in one end. Crushed aggregate came out the other.
The results:
- Landfill disposal cost dropped to near zero. Rubble became product, not waste
- The crushed concrete sold as road base to local contractors
- The machine paid for itself in 8 months
- The contractor won more bids because they offered lower demolition prices
The owner said: “We used to pay to get rid of concrete. Now we sell it. The mobile crusher turned our waste into profit.”
For placing crushed concrete on site, a small concrete pump moves material efficiently.
How to Choose the Right Mobile Stone Crusher
| Your job requirement | Recommended model |
| Small job, tight space, low volume | Mini crusher (3-10 tons/day) |
| Medium road work, 50-80 tons/hour | 800×1000 model |
| Large quarry, 80-120 tons/hour | 1000×1200 or 1200×1200 model |
| High production, over 150 tons/hour | 1400×1600 model |
| Rough terrain, no roads | Tracked model |
| Good roads, move between sites | Wheeled model |
Still not sure? Tell us your material type, required output per hour, and job site conditions. YG will recommend the right mobile crusher for sale.
Frequently Asked Questions
Q: What is the price of a mobile stone crusher plant for sale?
A: Price depends on model, capacity, and power type (diesel or electric). Contact us for a quote based on your needs.
Q: Can it crush reinforced concrete?
A: Yes. A magnetic separator can be added to remove steel rebar from the crushed material.
Q: How long does setup take?
A: A wheeled model sets up in 4-8 hours. A tracked model is ready to crush in 1-2 hours.
Q: What is the difference between wheeled and tracked?
A: Wheeled units are cheaper and tow on roads. Tracked units work on soft ground and steep slopes.
Q: What wears out fastest?
A: Jaw plates and hammer heads. YG keeps spare parts in stock for fast shipping.
Q: Does it need a concrete foundation?
A: No. Mobile crushers work on compacted ground. No foundation cost.
Q: Can I use it for sand making?
A: Yes. With the right crusher chamber and screen, it produces 0-5mm sand.
Q: Do you ship worldwide?
A: Yes. YG has exported mobile crusher plants to Australia, Philippines, Mexico, Canada, Spain, and more.
