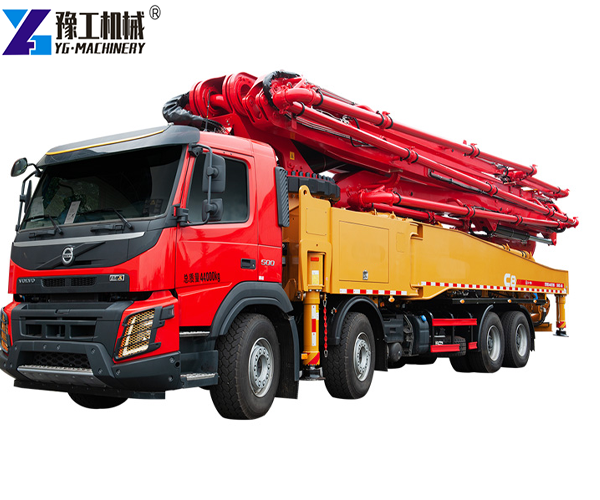

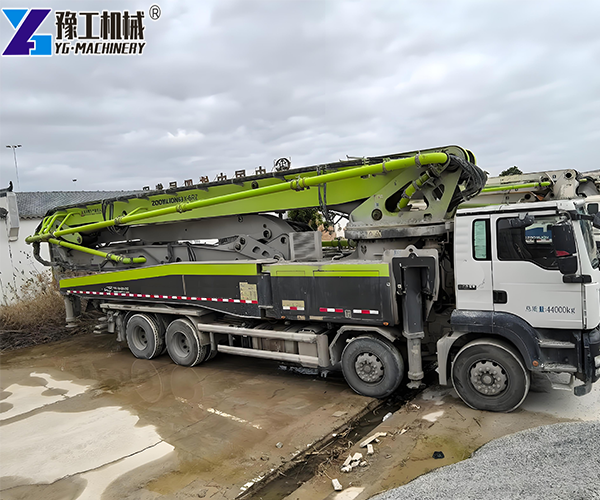

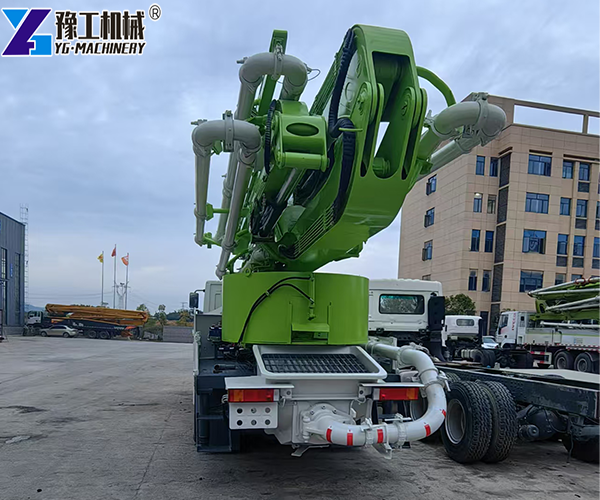

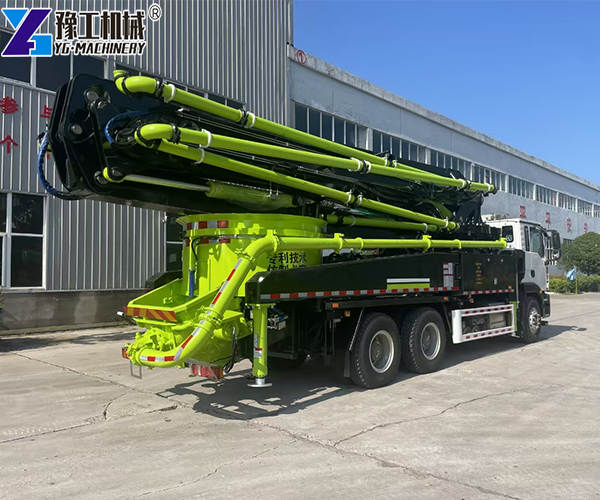

A truck mounted concrete pump is a mobile machine that mixes and pumps concrete on one truck chassis. It combines a mixer drum, pumping system, and boom arm on a single vehicle. The boom delivers concrete directly to the pouring point without manual pipe installation.
Suitable for:
- High-rise building floor pouring
- Large foundation slabs
- Bridge decks and abutments
- Commercial complex construction
- Rural and urban construction sites
Advantages:
- Fast pumping speed up to 120m³/h
- Wide working range up to 46m height
- Reduced labor costs, one operator
- Legal road travel, no overweight
- Excellent mobility between job sites
YG Machinery offers truck mounted concrete pumps from 33 to 46 meters. Six models cover different project scales. All models feature hydraulic mixing, X-5RZ boom systems, and 359° rotation.
Technical Parameters of Truck Mounted Concrete Pump
| Item | Unit | 33m | 34m | 37m | 38m | 44m | 46m |
| Chassis brand | – | Sinotruk/Dongfeng | Sinotruk/Dongfeng | Sinotruk/Dongfeng | Sinotruk/Dongfeng | Sinotruk/Dongfeng | Sinotruk/Dongfeng |
| Engine brand | – | MAN/Yuchai | MAN/Yuchai | MAN/Yuchai | MAN/Yuchai | MAN/Yuchai | MAN/Yuchai |
| Engine power | ps | 240/290 | 240/290 | 240/290 | 350 | 350 | 350 |
| Axles | – | 2 | 2 | 2 | 3 | 3 | 3 |
| Overall length | mm | 9700 | 9200 | 9600 | 10500 | 11000 | 11500 |
| Overall height | mm | 3750 | 3500 | 3550 | 3700 | 3850 | 3900 |
| Max. placing height | m | 32.2 | 33.2 | 36.1 | 37.2 | 43.3 | 45.3 |
| Max. placing radius | m | 27.5 | 28.5 | 32.8 | 33.0 | 38.1 | 40.2 |
| Boom structure | – | X-5RZ | X-5RZ | X-5RZ | X-5RZ | X-5RZ | X-5RZ |
| Rotation angle | ° | ±359 | ±359 | ±359 | ±359 | ±359 | ±359 |
| Max. output | m³/h | 100 | 100 | 110 | 120 | 140 | 140 |
| Max. pressure | Mpa | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 |
| Cylinder bore | mm | 230 | 230 | 230 | 230 | 260 | 260 |
| Cylinder stroke | mm | 1450 | 1450 | 1450 | 1600 | 1800 | 1800 |
| Mixer type | – | Forced | Disc | Disc | Disc/Forced | Disc/Forced | Disc/Forced |
| Mixing capacity | m³ | 0.75 | 2 | 2 | 2/0.75 | 2/0.75 | 2/0.75 |
| Productivity | m³/h | 25-35 | 25-35 | 25-35 | 25-35 | 25-35 | 25-35 |
| Total weight | kg | 18000 | 18000 | 18000 | 31000 | 33000 | 35000 |
If your project requires a more compact solution for residential buildings or narrow construction sites, you can also explore our Trailer Mounted Concrete Pump for Sale . For contractors looking for a machine that combines mixing and pumping, the Concrete Mixer with Pump is another popular option.
Six Core Advantages of Concrete Boom Pump Truck
Many contractors now prefer a truck mounted concrete boom pump because it improves both project management and concrete placement quality.
Advantage 1: Hydraulic lifting hopper saves 1 hour per shift
The machine uses hydraulic non-rail lifting technology, replacing traditional rail and wire rope systems. No installation. No track maintenance. This design saves 1 hour of setup time every shift.
Advantage 2: Easy access to rural and narrow sites
The truck is built compact. Total length is only 11 meters. Total height is 3.9 meters. Shortest wheelbase is 4.4 meters. This is the smallest in its class. The machine navigates rural roads, narrow village streets, and tight construction sites.
Advantage 3: Strong pumping, no clogging
The pumping system handles different aggregate types. No clogging. No rework. The forced mixer prepares 0.75 cubic meters per batch. Productivity reaches 30 cubic meters per hour. Maximum output reaches 120 cubic meters per hour.
Advantage 4: Legal road travel, fast relocation
The truck is fully compliant with road weight regulations. No overweight permits needed. No legal issues. The hydraulic hopper eliminates track installation. Each job saves setup time and transport coordination.
Advantage 5: One machine, multiple uses
The boom pump pumps ready-mix concrete from trucks at 90 cubic meters per hour. On tight sites or when the boom cannot reach, connect a hose to the tail outlet. The machine turns into a trailer pump. Horizontal pumping reaches 300 meters. This handles any job condition.
Advantage 6: Energy efficient and reliable
The mixer runs on grid power when available. A backup generator works at remote sites. Pumping speed and engine power adjust automatically. This reduces fuel consumption by 10%. The electronic control system connects to the cloud. Track machine status and working hours in real time.
Not every project requires the same pumping equipment. Choosing the correct boom length, output capacity, and pumping distance is essential for improving efficiency. You can read our complete guide on How to Choose a Concrete Pump before selecting a model.
Application of Concrete Boom Pump Truck
This concrete boom pump truck works well in many jobs:
High-rise buildings – Pour concrete on upper floors. 46m height covers most residential and commercial buildings.
Large foundation slabs – Spread concrete over big foundation areas. Fast output reduces cold joints and sets time.
Bridge construction – Place concrete on bridge decks and abutments. Reach over obstacles with the articulated boom.
Commercial complex construction – Pour large floor slabs on shopping centers and parking structures. 360° rotation covers wide areas.
Urban construction sites – Tight city roads and compact sites. Short wheelbase and legal road travel make access easy.
Industrial facility construction – Pour concrete for factories and warehouses. High output keeps large projects on schedule.
Rural construction – Narrow village roads and remote sites. Compact size and on-site mixing eliminate supply delays.
For projects with lower concrete volumes or limited budgets, many contractors choose a Small Concrete Pump or Portable Concrete Pump instead of a truck-mounted boom pump. These models are easier to transport and suitable for residential construction, rural projects, and foundation work.
How to Choose the Right Truck Mounted Concrete Pump?
| Your project type | Recommended model | Why |
| 5-10 story residential buildings | 33m or 34m | 32-33m height, compact, lower cost |
| 10-15 story residential buildings | 37m or 38m | 36-37m height, good coverage |
| 15-20 story high-rise buildings | 44m or 46m | 43-45m height, max reach |
| Large foundation slabs, commercial projects | 44m or 46m | Higher output, longer radius |
| Tight rural roads, small towns | 33m or 34m | Shorter wheelbase, more compact |
| Urban construction with limited space | 37m or 38m | Good balance of size and reach |
Still not sure? Tell us your building height, project type, and site access. We will recommend the right concrete boom pump truck for you.
Customer Cases
Case 1: Germany – Toni, 37m Boom Pump Truck
A German construction company owner, Toni, was expanding his business from small residential projects to commercial buildings. He needed a reliable concrete pump with enough height and output for 10-story buildings.
He chose a YG 37m truck mounted concrete pump. The X-5RZ boom reaches 36 meters. The 110m³/h output keeps his crew productive. The machine is compact enough for German city streets.
Results:
- Covers 10-story residential buildings
- 30 cubic meters per hour on-site mixing
- Legal road travel, no special permits
- One operator runs the entire job
Toni said: “This machine fits my business perfectly. I can now take on bigger projects without adding a second team. The hydraulic hopper saves me an hour every day.”
Case 2: Russia – 58m Boom Pump Truck Export
A Russian construction company needed a heavy-duty pump for large commercial projects in Moscow. The job required 40+ meter reach and high output for continuous pours.
They bought a YG 58m boom pump truck. The machine handles large-volume pours on commercial and high-rise projects.
Results:
- 58m boom covers tall commercial buildings
- 140m³/h output for fast pours
- Reliable in cold Russian winters
- Continuous operation on large sites
The project manager said: “The 58m boom gives us the reach we need. The output keeps our pours moving. We have used it on three major projects with no downtime.”
FAQs
Q: What is the difference between 33m, 37m, and 44m models?
A: The numbers indicate maximum placing height. 33m covers 5-10 story buildings. 37m covers 10-15 stories. 44m covers 15-20 stories.
Q: Can this truck mounted concrete pump use ready-mix concrete?
A: Yes. The machine works with ready-mix from trucks or on-site mixing. Use the boom for large areas. Connect the tail outlet for trailer pump mode.
Q: Is it legal to drive on public roads?
A: Yes. The truck is fully compliant with road weight regulations. No special permits needed for most routes.
Q: How does the hydraulic hopper save time?
A: Traditional mixers use rail and wire rope hoppers. They need setup and maintenance. The hydraulic hopper has no rails. No installation. No disassembly. Saves 1 hour per shift.
Q: How long does it take to set up on site?
A: Setup takes 15-30 minutes. No track installation needed. Just connect the hose and unfold the boom.
Q: Can I pump concrete 300 meters horizontally?
A: Yes. When the boom cannot reach, connect a hose to the tail outlet. The machine becomes a trailer pump. Horizontal pumping reaches 300 meters.
Q: What is the warranty?
A: The main structure has a 24-month warranty. Chassis, pump, and hydraulic components have a 12-month warranty. Wear parts are not covered.
Q: What is the price of a truck mounted concrete pump?
A: Price depends on boom length, output capacity, and chassis options. 33m models are the most affordable. 46m models cost more. Contact us for a quote based on your project.
Q: Do you offer custom voltage and frequency options?
A: Yes. We offer customization for voltage, frequency, corrosion protection, and special sizes. Meet different project and regional requirements.
