plitting firewood by hand sounds simple, but many homeowners and forestry workers struggle with back-breaking labor, slow production, and safety risks. A wood cutter splitter solves these problems fast. It gives you a machine that cuts and splits in one pass that works for home firewood, farm use, and forestry operations. With 15-20 tons of splitting force and 4-5m³ per hour output, our wood cutter splitter for sale helps you process more wood in less time with less effort.

YG Machinery offers reliable wood cutter splitters for home, farm, and commercial use.

Technical Parameters of Wood Cutter Splitter

Parameter	15T Model	20T Model
Max splitting force	15 tons	20 tons
Cycle time	7 seconds	8 seconds
Max splitting length	610mm	610mm
Max splitting diameter	380mm	400mm
Work efficiency	4m³/h	5m³/h
Power	15HP gasoline engine	15HP gasoline engine
Engine displacement	420cc	420cc
Fuel tank capacity	6.5L	6.5L
Engine oil capacity	1.1L	1.1L
Firewood conveyor length	3.2m	3.2m
Belt width	250mm	250mm
Chain saw length	1.2m	1.2m
Oil tank capacity	50L	50L
Knife	4-way (6-way optional)	4-way (6-way optional)
Weight	480kg	510kg
Machine package size	2200x900x1100mm	2200x900x1100mm

Both models feature hydraulic splitting, adjustable 4-way knife, and a 3.2m firewood conveyor belt.

Main Structure of Firewood Processor Machine

A wood cutter splitter has several main parts:

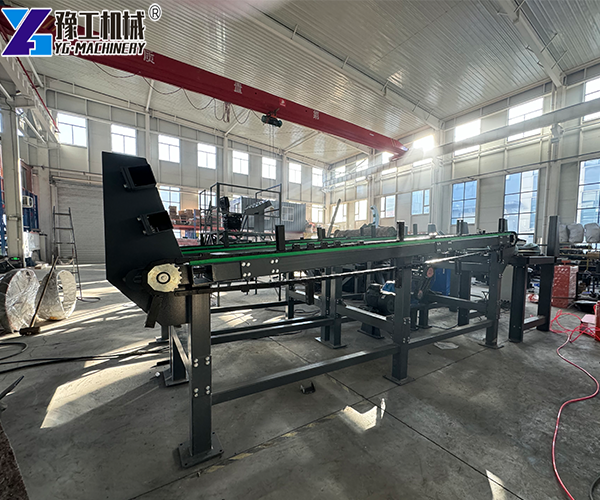

Feeding conveyor – Moves logs toward the chainsaw. Belt width is 250mm. Conveyor length is 3.2m.

Chainsaw – Cuts logs to the preset length. Chain saw length is 1.2m. Rotates at 5600rpm.

Hydraulic splitting cylinder – Pushes the log through the splitting wedge. Cycle time is 7-8 seconds.

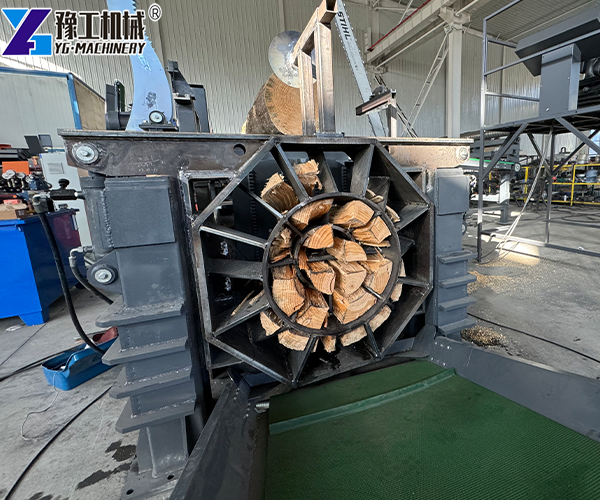

Splitting wedge – Splits the log into 4 or 6 pieces. Height is adjustable. 4-way knife is standard. 6-way is optional.

Discharge conveyor – Carries split wood away from the machine.

Hydraulic oil tank – Holds 50L of hydraulic oil. Keeps the system running smoothly.

Gasoline engine – 15HP engine powers the entire machine. Electric start. 420cc displacement.

Control valve – One-handle or multi-directional control. Simple operation.

Tires – 12″ tires for easy movement around the job site.

Tow hitch – Allows the machine to be towed behind a truck or tractor.

Core Advantages of Wood Cutter Splitter

Cuts and splits in one pass – No need for separate cutting and splitting. One machine does both jobs.

High output – Processes 4-5 cubic meters per hour. Much faster than manual splitting.

Powerful splitting force – 15-20 tons of force. Splits hardwoods like oak and maple easily.

Adjustable 4-way knife – Splits logs into 4 pieces in one pass. 6-way knife optional for smaller pieces.

Hydraulic system – Smooth and powerful. Low maintenance. Long service life.

Easy to move – Tires and tow hitch included. Move it around the property or between job sites.

Electric start – No pulling a starter cord. Turn the key and go.

Adjustable cutting length – Set the chainsaw to cut at the length you want. Consistent pieces every time.

Saves labor – One person can operate the machine. No need for a crew.

Safer than manual splitting – No swinging axes. No flying wood chips. The machine does the work.

Application of Log Splitter Machine

This wood cutter splitter works well in many situations:

Home firewood – Split a season’s worth of firewood in a weekend. No more back pain.
Farm use – Process firewood for barns, workshops, and farmhouses. Fast and efficient.
Forestry operations – Clear logging waste. Process timber into firewood on site.
Wood processing plants – Prepare raw materials for wood-based panels, paper making, and wood pulp.
Biomass energy production – Process wood chips for biomass boilers and power plants.
Landscaping – Handle tree removal waste. Turn logs into usable firewood.
Campgrounds and resorts – Keep guests warm with a steady supply of split firewood.
Rental business – Rent the machine to homeowners and small contractors.

Anywhere wood needs to be split, this machine gets the job done fast.

Customer Case – Family Farm in Canada

A family farm in Alberta, Canada heated their farmhouse with firewood every winter. They spent entire weekends splitting logs by hand. The work was exhausting. The father had back problems. The children were too young to help much.

They bought a YG 20T wood cutter splitter. The machine sits on their property. One person feeds logs onto the conveyor. The chainsaw cuts them to length. The hydraulic cylinder pushes the logs through the splitter. Split wood drops onto the discharge conveyor.

The farm owner said: “We used to spend two full days every weekend splitting wood. Now we finish in three hours. No more back pain. The whole family can help. Best investment we ever made.”
