Starting a paper coffee cup business sounds simple. But many buyers struggle with machines that cannot handle daily volume, cups that leak at the seams, and investments that take too long to pay back. A paper coffee cup making machine solves these problems fast. It turns PE-coated paper into finished cups at 70-150 cups per minute. Ultrasonic sealing keeps every cup leak-proof. One machine produces cups for coffee shops, fast food chains, and beverage brands. For a cup manufacturer, this means meeting high demand with consistent quality.
YG Machinery offers paper coffee cup making machines for 3-16oz cups with speeds from 70-150 cups per minute.
Technical Parameters of Paper Coffee Cup Making Machine
| Model | YG-DP16 | YG-Gs120 | YG-160S | YG-M100 | YG-M22S |
| Production speed | 70-90 pcs/min | 90-120 pcs/min | 120-150 pcs/min | 80-100 pcs/min | 60-90 pcs/min |
| Cup size range | 3-16 oz | 3-16 oz | 3-16 oz | 3-16 oz | 6-22 oz |
| Raw material | Single/Double PE | Single/Double PE | Single/Double PE | Single/Double PE | Single/Double PE |
| Paper weight | 160-350 g/m² | 150-350 g/m² | 150-350 g/m² | 160-260 g/m² | 160-300 g/m² |
| Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Cup side sealing | Ultrasonic | Ultrasonic | Ultrasonic | Ultrasonic | Ultrasonic |
| Weight | 1750kg | 2100kg | 4000kg | 1500kg | 2200kg |
We can customize machine and mold according to your cup requirements.
Key Advantages of Paper Coffee Cup Making Machine
Ultrasonic side sealing – Cups stay leak-proof. No glue required. Safe for hot drinks up to 90°C.
High production speed – 70-150 cups per minute. Meet high-volume orders from coffee chains and beverage brands.
Food-grade materials – Single PE for hot drinks. Double PE for cold drinks. Safe and hygienic.
Versatile cup sizes – 3-16oz standard range. Custom sizes available up to 22oz.
Automatic lubrication – Mechanical parts run smoothly. Less wear. Longer machine life.

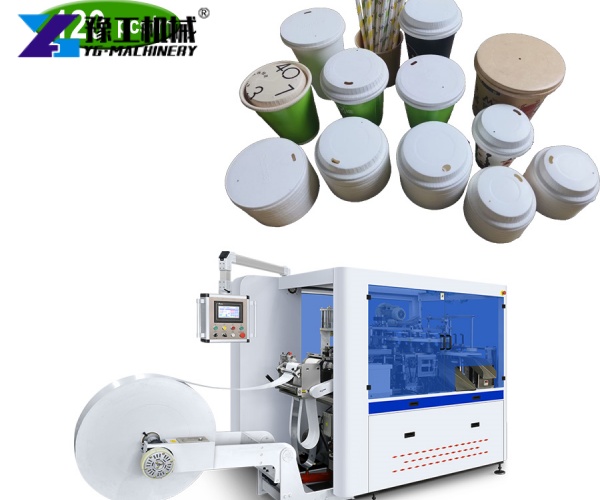

Photoelectric detection – Fault alarms stop the machine automatically. Reduce waste. Protect the machine.
Stable electrical performance – Imported frequency converter and control components. Unstable voltage does not affect production.
Stainless steel construction – Clean and sanitary. Anti-pollution. Wear-resistant.
Coffee Cup Machine Special Features
This paper coffee cup making machine is designed specifically for coffee cups, not just general paper cups.

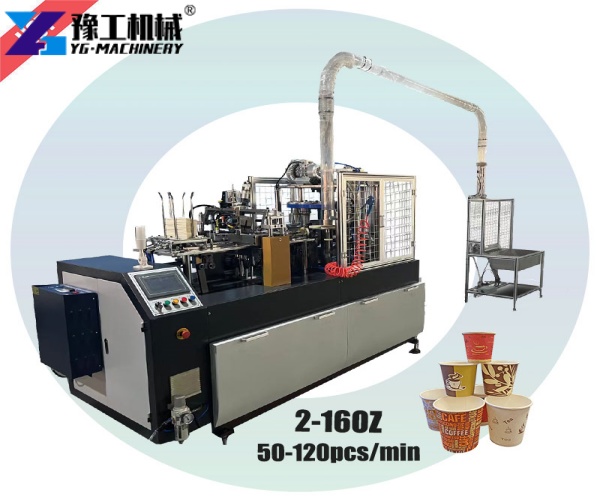

High temperature resistance – Coffee cups must hold hot drinks at 80-90°C. The PE coating and ultrasonic sealing ensure the cup stays intact.
Single PE vs Double PE – Single PE coated paper (PE on the inside) is for hot drinks. The inner coating prevents leakage and keeps the cup rigid. Double PE coated paper (PE on both sides) is for cold drinks and prevents condensation.
Leak-proof sealing – Ultrasonic sealing bonds the side seam and bottom without glue. No leaks. No bad cups.
Smooth drinking rim – The top curling process creates a smooth, comfortable drinking edge. No sharp paper edges.
Branding ready – The cups accept custom printing. Coffee shops and chains can print their logos and designs.

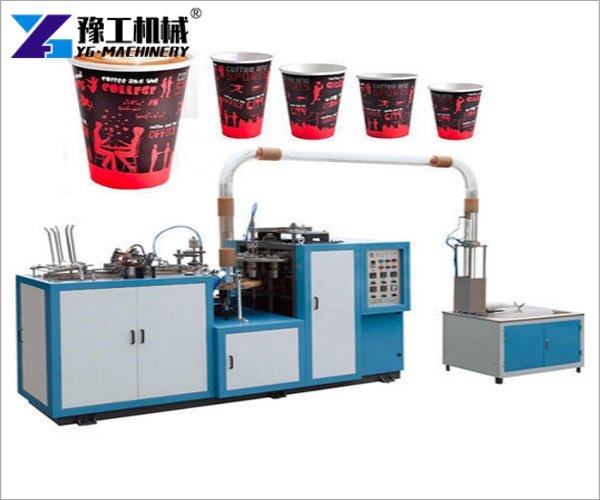

3-16oz standard range – 3oz tasting cups, 8oz small, 12oz medium, and 16oz large. Perfect for coffee shop menus.
This disposable coffee cup machine produces cups that are safe and hygienic for single use.
Paper Coffee Cup Sizes and Types
Standard coffee cup sizes:
- 3oz – Tasting cups, sample cups
- 8oz – Small coffee, tea
- 12oz – Medium coffee, latte
- 16oz – Large coffee, specialty drinks
- 22oz – Extra large (custom)
Cup types this machine can produce:

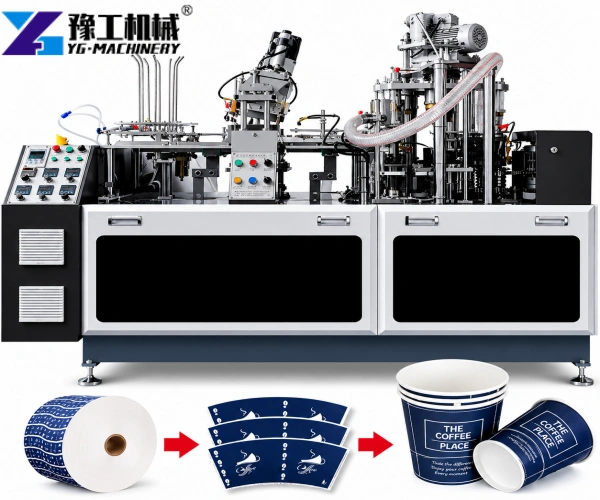

- Single wall cups – Standard coffee cups
- Double wall cups – Insulated for hot drinks (add a sleeve or second layer)

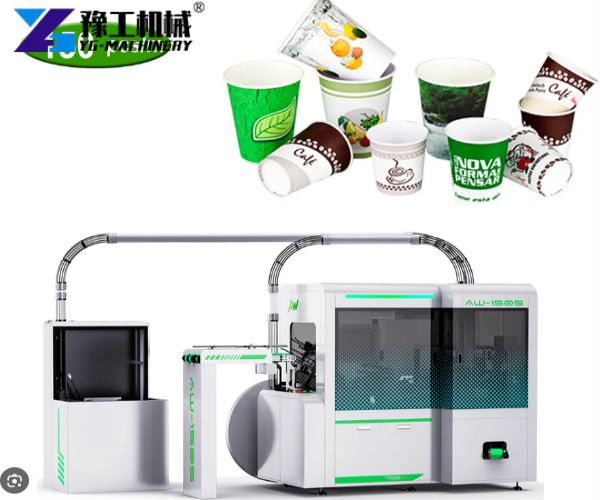

- Ripple wall cups – Corrugated insulation, no sleeve needed
- Custom printed cups – Logo, brand name, design
Material options:
- Single PE coated paper – For hot drinks
- Double PE coated paper – For cold drinks
- PLA coated paper – Biodegradable option
All cups are food-grade and recyclable.
Custom Printing for Coffee Cup Making Machine
Coffee cups are a brand’s calling card. The paper coffee cup making machine supports custom printed cups.
Printing options:
- Flexo printing – Standard for high-volume cup orders
- Digital printing – For smaller runs and detailed designs
- Custom colors and logos – Match your brand identity
Why printing matters:
- Brand recognition – Your logo on every cup
- Marketing tool – Every cup is free advertising
- Premium feel – Custom design elevates the drinking experience
With a custom printed coffee cup machine, your brand logo appears on every cup your customers hold. YG can recommend printing equipment to complete your paper cup production line. Flexo printing machines and digital printers are available.
Paper Coffee Cup Making Machine Customer Case: Brazil
A Brazilian entrepreneur saw the growing coffee culture in South America. Cafes were opening everywhere. Demand for paper coffee cups was rising fast. He decided to start a paper cup manufacturing business but needed reliable machines at a good price.
He ordered 10 YG paper coffee cup making machines. The machines were shipped together in a container. YG provided installation guidance and operator training.
The results:
- Production started quickly after delivery
- Each machine produced 80-100 cups per minute
- The factory supplied cups to local coffee chains
- The business expanded within the first year
- The customer placed a second order for more machines
The customer said: “YG machines are reliable and fast. We started production right away. The coffee cups are high quality and our customers love them.”
How to Choose the Right Coffee Cup Making Machine Speed?
| Your daily order volume | Recommended speed | Model |

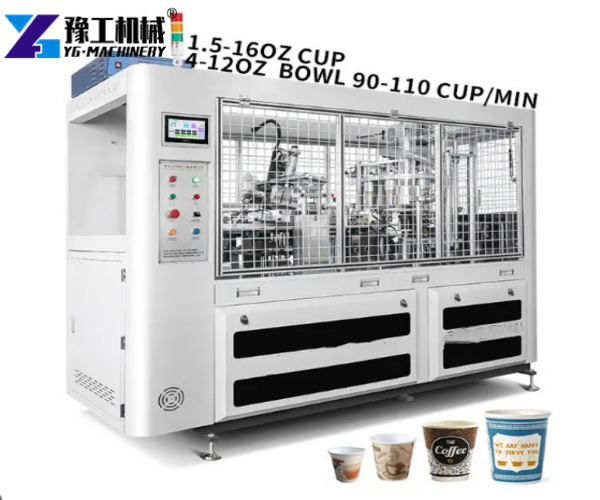

| Low volume, starting business | 70-90 cups/min | YG-DP16 |
| Medium volume, established business | 90-120 cups/min | YG-Gs120 |
| High volume, supplying chains | 120-150 cups/min | YG-160S |
| Large cups (up to 22oz) | 60-90 cups/min | YG-M22S |
| Standard 3-16oz cups | 80-100 cups/min | YG-M100 |
Consider these factors:
- Daily cup demand from customers
- Number of shifts per day
- Cup sizes you need to produce
- Budget for equipment
Still not sure? Tell us your daily cup target and cup sizes. YG will recommend the right paper coffee cup making machine for sale.
FAQ
Q: What is the price of a paper coffee cup making machine?
A: Price depends on speed, cup size range, and customization. Contact us for a quote based on your production needs.
Q: What paper material can this coffee cup making machine use?
A: Single PE coated paper (for hot drinks) and double PE coated paper (for cold drinks). PLA coated paper is also available for biodegradable cups.
Q: What cup sizes can this coffee cup machine produce?
A: Standard models produce 3-16oz cups. The YG-M22S produces up to 22oz cups. Custom sizes available on request.
Q: Does the paper coffee cup making machine print on cups?
A: The forming machine does not print. You need a separate printing machine (flexo or digital). YG can supply complete production lines.
Q: Is the paper coffee cup making machine easy to operate?
A: Yes. One operator controls the machine. The PLC control system is user-friendly. YG provides training and manuals.
Q: What is the warranty on this coffee cup making machine?
A: One-year warranty on the machine. YG provides spare parts and technical support.
