Toilet paper. Every home needs it. Every hotel supplies it. Producing it requires the right equipment. A tissue production machine turns raw jumbo rolls into finished toilet paper rolls. Rewinding. Cutting. Packaging. Three machines work together. Fully automatic. One operator runs the line.
For paper mills and converting plants, our tissue production machine delivers consistent quality and high output.
YG Machinery offers complete tissue production lines for toilet paper manufacturing.
What Is a Tissue Production Machine?

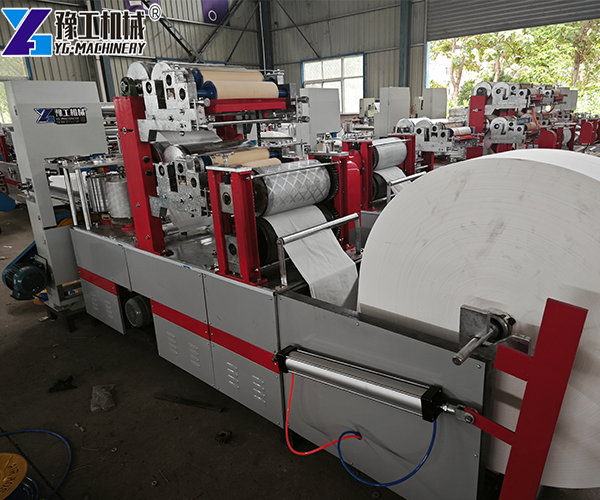

A tissue production machine is a complete production line that converts large jumbo paper rolls into finished toilet paper rolls. The line consists of three core machines working together: a paper rewinding machine, a roll cutting machine, and a paper packaging machine. The entire process is fully automatic. One operator can run the entire line.
Suitable for:
- Toilet paper rolls for households
- Commercial toilet paper for hotels and restaurants
- Jumbo rolls for industrial supply
- Coreless toilet paper rolls
- Multi-ply toilet paper products
Advantages:
- 0-200 m/min rewinding speed
- 110-150 cuts per minute
- Fully automatic operation
- PLC intelligent control
- One operator runs the entire line
- Consistent product quality
- Low labor cost
Technical Parameters of Tissue Production Machine
Paper Rewinding Machine
| Parameter | Specification |
| Raw paper width | ≤2100mm |
| Finished product diameter | Φ60-150mm (adjustable) |
| Finished paper core inner diameter | Φ32-50mm |
| Base paper diameter | Φ1100mm |
| Base paper core inner diameter | 3″ |
| Perforation pitch | 90-180mm (mechanical adjustment) |
| Rewinding speed | 0-200 m/min |
| Perforation method | Pneumatic separation |
| Paper ejection frame | 1-3 layers |
| Dimensions (L×W×H) | 6500×3100×2600mm |
| Machine weight | 3500kg |
| Total power | 4kW |
| Air supply | 3HP air compressor |
Roll Paper Cutting Machine
| Parameter | Specification |
| Rated speed | 150 cuts/min |
| Design speed | 170 cuts/min |
| Cutting diameter | Φ60-130mm |
| Total power | 6.2kW |
| Cutter motor | 2.2kW |
| Conveying servo motor | 1kW |
| Rotary cutter motor | 3kW |
| Machine noise | ≤65dB |
| Compressed air | 0.5-0.8MPa |
| Dimensions (L×W×H) | 5350×1500×1850mm |
| Machine net weight | 1500kg |
Paper Packaging Machine
| Parameter | Specification |
| Rated speed | 110 bags/min |
| Design speed | 120 bags/min |
| Packaging specifications | Length 100-140mm, diameter Φ60-140mm |
| Total power | 4.24kW |
| Machine noise | ≤70dB |
| Machine net weight | ~1500kg |
| Dimensions (L×W×H) | 6730×1310×1480mm |
| Packaging materials | BOPP, PE/OPP, CPP, PP |
Working Principle of Tissue Paper Production Machine
The complete production process works continuously:
Step 1: Unwinding
Large jumbo paper rolls (up to Φ1100mm) are loaded onto the unwinding stands. Paper feeds into the rewinding machine continuously. 1-3 layers can be combined.
Step 2: Embossing
The paper passes through double-sided embossing rollers. Patterns are pressed into the paper. The paper becomes softer and more absorbent.
Step 3: Rewinding
The paper winds onto cores at speeds up to 200 m/min. Tension is controlled automatically. Glue seals the paper tail. Perforations are cut for easy tearing.
Step 4: Ejection
Finished rolls are pushed off the rewinding shaft. They move to the cutting machine conveyor.
Step 5: Cutting
The cutting machine cuts the long rolls into individual toilet paper rolls. Up to 150 cuts per minute. Each roll is cut to the exact length.
Step 6: Packaging
Cut rolls move into the packaging machine. The machine makes bags from roll film. Each roll is bagged and sealed. Side ironing gives a neat finish.
Step 7: Output
Finished, packaged toilet paper rolls exit the line. Ready for cartoning and shipping.
The entire process is fully automatic from start to finish.
Core Advantages of Tissue Paper Making Equipment
Many paper manufacturers now choose fully automatic tissue production lines because they reduce labor costs and increase output.
- High Production Speed – Rewinds at 0-200 m/min. Cuts at 150 cuts/min. Meets high-volume orders.
- Fully Automatic Operation – From jumbo roll to packaged product. No manual handling required.
- One Operator, One Line – One person monitors the entire line. Saves 80% labor compared to semi-automatic lines.
- PLC Intelligent Control – Omron or Panasonic PLC. Touch screen interface. Easy to operate and monitor.
- Automatic Perforation – Pneumatic separation. Adjustable pitch. Clean tear-off every time.
- Automatic Glue Sealing – Sprays glue and seals the roll tail automatically. No loose ends.
- Automatic Blade Sharpening – Cutter blades sharpen automatically. Consistent cutting quality. Reduced downtime.
- Two-Way Photoelectric Tracking – Ensures film is cut at the right position. Accurate packaging every time.
- Automatic Positioning and Stop – Protects the film when the machine stops. No film waste.
- Low Maintenance – Simple design. Easy to clean and maintain. Long service life.
Application of Toilet Paper Production Line
This tissue production line produces toilet paper for various markets:
- Household toilet paper – Standard rolls for homes and apartments. Various ply options.
- Hotel and restaurant supply – Commercial rolls for hospitality industry. Larger diameter, longer-lasting.
- Jumbo roll production – Large rolls for industrial and institutional use.
- Coreless toilet paper – Rolls without cardboard cores. Environmentally friendly option.
- Colored and scented toilet paper – Specialized products for premium markets.
- Private label manufacturing – Custom packaging for retail brands.
Customer Case – Toilet Paper Factory Expansion in Africa
A paper converting company in Nigeria supplied toilet paper to local supermarkets and hotels. Demand was growing. The existing semi-automatic line could not keep up. Labor costs were high. Quality was inconsistent.
They purchased a complete YG tissue production line. The line includes a rewinding machine, cutting machine, and packaging machine. One operator runs the entire line. Speed is 0-200 m/min. Output increased by 200%.
Results after installation:
- Production increased 200%
- Labor reduced from 8 workers to 1 operator
- Product quality consistent – uniform roll size and weight
- Packaging neat and professional – improved retail appeal
- Payback period: less than 12 months
The plant manager said: “The YG tissue production line changed our business. We now produce more in one shift than we used to produce in three. The machines run without problems. We are expanding our factory and ordering a second line.”
FAQ
Q: What is the production speed?
A: Rewinding speed up to 200 m/min. Cutting speed up to 150 cuts/min. Packaging speed up to 120 bags/min.
Q: What is the daily output?
A: 5-30 tons per day depending on model and configuration.
Q: What raw material does it use?
A: Large jumbo paper rolls (parent rolls). Base paper width up to 2100mm. Diameter up to Φ1100mm.
Q: How many operators are needed?
A: One operator can run the entire production line.
Q: What is the finished roll diameter?
A: Φ60-150mm. Adjustable to meet different market requirements.
Q: Does it produce coreless rolls?
A: Yes. Both cored and coreless rolls are supported.
Q: What packaging material does it use?
A: BOPP, PE/OPP, CPP, PP film. Standard roll film packaging.
Q: What is the warranty?
A: One-year warranty on manufacturing defects. Technical support included.
Why Choose YG Tissue Production Machine
YG has been manufacturing tissue production machines for many years. Our tissue production lines feature Omron PLC control, automatic perforation, and high-speed cutting. Each machine is tested before shipping.
Why customers choose YG:
- Complete production line – rewinder, cutter, and packer from one supplier
- 0-200 m/min rewinding speed – high efficiency
- 150 cuts/min – consistent cutting quality
- PLC intelligent control – easy operation
- Automatic glue sealing – secure roll tails
- Automatic blade sharpening – low maintenance
- CE certified – compliant for international export
- Custom configurations – available for your specific needs
- 24/7 technical support – installation and training assistance
YG tissue production machines have been exported to Nigeria, South Africa, Brazil, Saudi Arabia, the United States, and many other countries. Customers choose YG for quality, reliability, and value.
