A tissue maker machine is a complete production line that converts jumbo paper rolls into finished tissue products. This tissue making machine includes three core machines: a paper rewinding machine, a roll paper cutting machine, and a paper packaging machine.
Together, they produce toilet rolls, facial tissues, and kitchen towels. For tissue paper factories, startup investors, and existing paper mills expanding capacity, this tissue paper making machine provides efficient, automated production with low labor costs.
YG Machinery offers tissue maker machines for 5-30 tons per day production capacity. Factory direct pricing. Custom configurations available for different output needs and budgets.
Typical specifications include:
- 5-30 tons per day capacity
- ≤2100mm raw paper width
- 0-200 m/min rewinding speed
- Fully automatic or semi-automatic options
- PLC control system
What Is a Tissue Maker Machine?
A tissue maker machine is a production line that processes large jumbo paper rolls into finished tissue products. The line consists of three main machines working together:

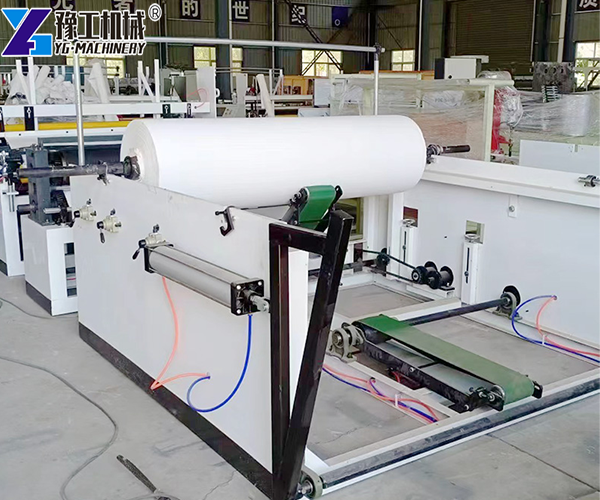

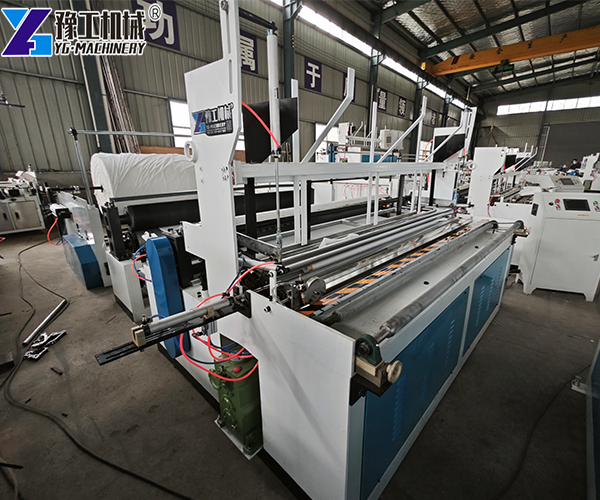

Paper Rewinding Machine
- Converts jumbo rolls into smaller rolls
- Trims edges, slits width, controls roll diameter
- Speed: 0-200 m/min
- Handles 1-3 layers of paper
Roll Paper Cutting Machine
- Cuts large rolls into individual tissue rolls
- Accurate cutting with clean edges
- Speed: 150 cuts/min
- Handles φ60-130mm diameter rolls
Paper Packaging Machine
- Automatically bags and seals finished rolls
- Uses BOPP, PE/OPP, CPP, PP films
- Speed: 110-120 bags/min
- Automatic sorting and feeding
Together, these three machines form a complete tissue paper production line. One operator monitors the entire process.
Factors Affecting Tissue Maker Machine Price
Several factors influence the tissue maker machine price. Understanding these helps you choose the right configuration for your budget.
Automation level
- Fully automatic: Higher cost, lower labor, higher output
- Semi-automatic: Lower cost, more manual labor
- PLC controlled systems cost more but reduce operator error
Production capacity
- 5 tons/day: Entry-level, lower cost
- 10 tons/day: Medium capacity, balanced cost
- 30 tons/day: High capacity, higher cost
Configuration options
- Number of paper layers (1-3 layers)
- Embossing rollers (cotton, wool, steel)
- Perforation pitch (90-180mm adjustable)
- Paper core diameter options (φ32-50mm)
Branded components
- Omron/Siemens PLC controllers
- Panasonic inverters
- SICK sensors
- Servo motors
- Branded components cost more but offer better reliability
Customization level
- Standard sizes: Lower cost
- Custom widths or specifications: Higher cost
- Special packaging requirements: Additional cost
Shipping and installation
- Sea freight (LCL or FCL)
- Installation guidance (remote or on-site)
- Operator training (video or in-person)
How to Choose the Right Production Capacity?
Choosing the right capacity depends on your target market and investment budget.
Small factory / Startup (5 tons/day)
- Best for: Local market, small towns, new business
- Investment: Lowest
- Labor: 2-3 workers per shift
- Space: Small workshop
- Payback: Fastest due to low investment
- Ideal for beginners testing the market
Medium factory (10 tons/day)
- Best for: Regional market, established business
- Investment: Moderate
- Labor: 3-4 workers per shift
- Space: Medium workshop
- Payback: 12-18 months
- Ideal for growing businesses
Large factory (30 tons/day)
- Best for: National market, wholesale supply
- Investment: Highest
- Labor: 5-6 workers per shift
- Space: Large factory building
- Payback: 18-24 months
- Ideal for established manufacturers
New to the industry?
If you are new to tissue paper manufacturing, we recommend starting with purchased jumbo rolls as raw material. This requires only a rewinder, cutter, and packaging machine. Lower investment, lower risk, faster market entry.
Tissue Paper Production Line Process
The tissue paper production line follows these steps:
1: Raw material preparation
- Jumbo paper rolls loaded onto the rewinder
- 2-3 layers of paper fed simultaneously
- Paper width: up to 2100mm
2: Rewinding
- Jumbo rolls rewound into smaller rolls
- Edges trimmed for clean finish
- Perforation added for easy tearing
- Core inserted (φ32-50mm)
- Roll diameter controlled (φ60-150mm)
3: Cutting
- Long rolls cut into individual toilet rolls
- Accurate cutting with clean edges
- 150 cuts per minute capacity
4: Packaging
- Rolls automatically sorted and fed
- Film wrapped and sealed
- Bags formed from roll film
- Finished packages ready for shipment
5: Quality inspection
- Roll diameter checked
- Seal quality verified
- Packaging appearance inspected
Technical Parameters of Tissue Making Machine
Paper Rewinding Machine
| Parameter | Specification |
| Raw paper width | ≤2100mm |
| Finished product diameter | Φ60-150mm (adjustable) |
| Finished paper core inner diameter | Φ32-50mm |
| Base paper diameter | Φ1100mm |
| Base paper core inner diameter | 3″ |
| Perforation pitch | 90-180mm (adjustable) |
| Rewinding speed | 0-200 m/min |
| Paper ejection rack | 1-3 layers |
| Machine weight | 3500kg |
| Total power | 4kW |
Roll Paper Cutting Machine
| Parameter | Specification |
| Rated speed | 150 cuts/min |
| Design speed | 170 cuts/min |
| Cutting diameter | Φ60-130mm |
| Total power | 6.2kW |
| Compressed air | 0.5-0.8MPa |
| Machine weight | 1500kg |
Paper Packaging Machine
| Parameter | Specification |
| Rated speed | 110-120 bags/min |
| Packing specification | L100-140mm, Φ60-140mm |
| Total power | 4.24kW |
| Machine noise | ≤70dB |
| Machine weight | 1500kg |
| Packaging materials | BOPP, PE/OPP, CPP, PP |
Purchase Process for Tissue Maker Machine
Follow these steps to purchase your tissue maker machine:
1: Requirement confirmation
- Tell us your target production capacity
- Share your budget range
- Provide factory space dimensions
2: Solution design
- We recommend the right configuration
- We provide detailed quotation
- We share machine drawings and video
3: Order confirmation
- Review and sign contract
- Arrange payment
- Confirm delivery schedule
4: Manufacturing
- Production time: 15-30 days
- Quality inspection during production
- Factory testing before shipping
5: Shipping
- Export wooden box packaging
- Sea freight to your port
- Shipping documents provided
6: Installation and training
- Remote installation guidance (video call)
- Operation training provided
- Online technical support
We provide free factory layout planning and remote installation support. For larger orders, we can send technicians on-site.
Customer Case
Case – Zimbabwe: Tissue Paper Factory Expansion
Customer: Tissue paper manufacturer in Harare, Zimbabwe
Product: Toilet rolls, 2-ply, 3-ply
Shift: 8 hours
Challenge: The customer used an outdated production line with high power consumption and poor roll stability. Output was limited. Product quality was inconsistent.
Before: 3 tons per day, 8 workers per shift, frequent machine breakdowns, customer complaints about roll quality.
Solution: YG tissue maker machine with 10 tons/day capacity. Fully automatic rewinder, cutter, and packaging machine. PLC control system for stable operation. Remote installation guidance provided.
After: 5 tons per day (increased from 3 tons). 4 workers per shift (reduced from 8). Energy consumption reduced by 20%. Product quality stabilized.
Result: Production increased by 67%. Labor reduced by 50%. Energy cost reduced by 20%. Machine paid for itself in 8 months.
Factory manager: “The YG tissue maker machine improved our production and quality. Remote support was clear and helpful. Our output increased and we supply local retailers with confidence.”
