Paper cups are everywhere. Coffee shops. Offices. Fast food restaurants. Making them by hand is slow. An automatic paper cup machine solves that. Feed the paper. Push the button. The machine does the rest. 70 to 150 cups per minute. One operator runs multiple machines. For paper cup manufacturers, our automatic paper cup machine delivers high output with low labor.
YG Machinery offers reliable automatic paper cup machines for disposable cup production lines.
What Is an Automatic Paper Cup Machine?

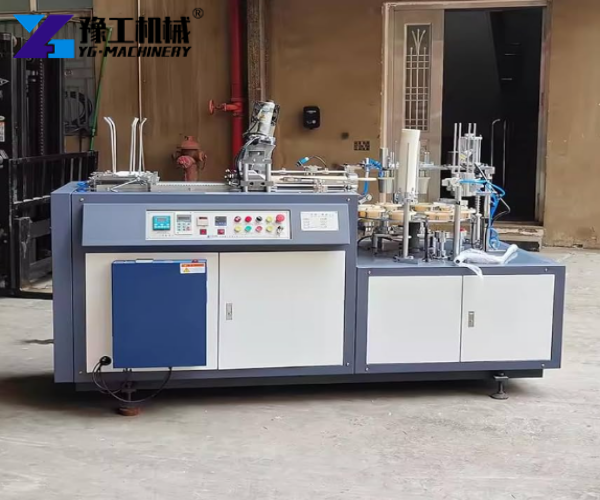

An automatic paper cup machine is a multi-station forming machine that converts PE-coated paper rolls into finished paper cups. The entire process is fully automated. From paper feeding to cup ejection, no manual intervention is needed. One operator can run multiple machines simultaneously.
Suitable for:
- Coffee and tea cups
- Advertising and promotional cups
- Ice cream cups
- Disposable drinking cups
- Food containers (paper bowls)
Advantages:
- 70-150 cups per minute output
- Fully automatic operation
- One-button control system
- 1 operator runs multiple machines
- Automatic fault detection and alarm
- Photoelectric quality monitoring
- PLC intelligent control
Technical Parameters of Automatic Paper Cup Machine
| Parameter | YG-90 | YG-120 | YG-150 |
| Production speed | 70-90 pcs/min | 90-120 pcs/min | 120-150 pcs/min |
| Cup size range | 3-16 oz | 3-16 oz | 3-16 oz |
| Raw material | Single/Double PE coated paper | Single/Double PE coated paper | Single/Double PE coated paper |
| Paper thickness | 150-350 g/㎡ | 150-350 g/㎡ | 150-350 g/㎡ |
| Voltage | 380V/50Hz 3-phase | 380V/50Hz 3-phase | 380V/50Hz 3-phase |
| Air supply | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air consumption | 0.4m³/min | 0.4m³/min | 0.5m³/min |
| Side sealing | Ultrasonic | Ultrasonic | Ultrasonic |
| Bottom knurling | Hot air system | Hot air system | Hot air system |
| Weight | 1750kg | 2100kg | 4000kg |
| Dimensions (mm) | 2150×1100×1750 | 2180×1050×1600 | 2800×1100×1800 |

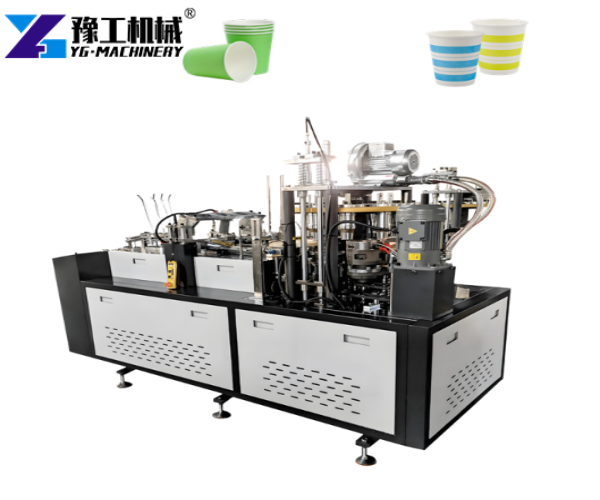

All models feature PLC control, automatic lubrication, and photoelectric detection system.
Core Advantages of Automatic Cup Forming Machine
Many paper cup manufacturers now choose fully automatic machines because they improve output and reduce labor costs.

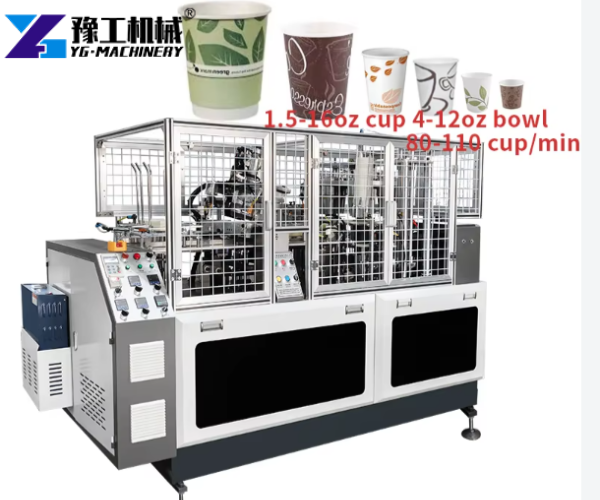

High Production Speed: 70-150 cups per minute. YG-150 produces up to 150 cups/min. Meets high-demand orders.
Fully Automatic Operation: No manual intervention needed. Paper feeding, sealing, heating, and ejection are all automatic.

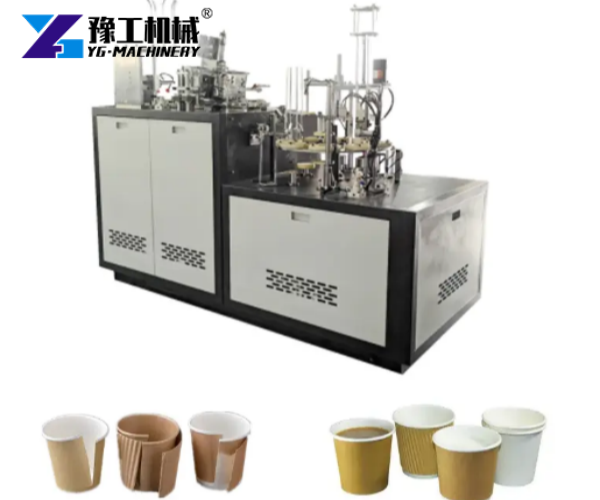

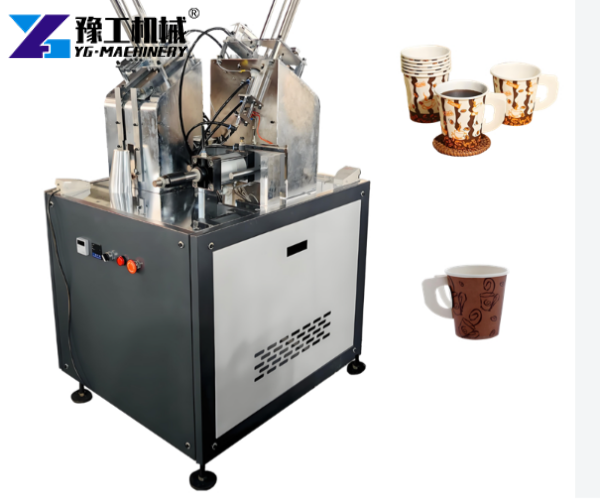

One Operator, Multiple Machines: One person can run 3-5 machines. Saves 70-80% labor costs compared to semi-automatic machines.
One-Button Control: Simple operation. Push the button. The machine runs. No special skills needed.

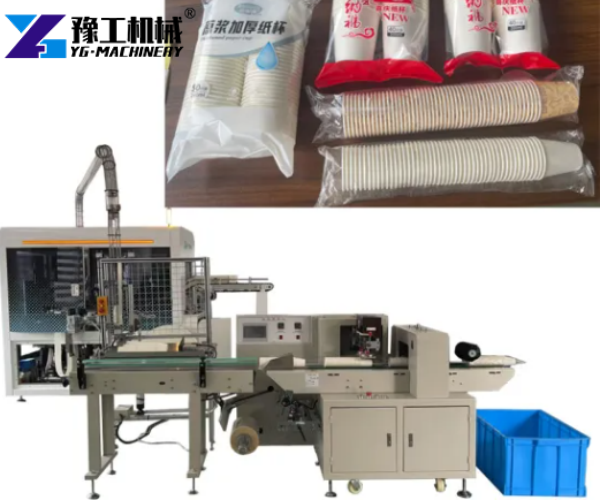

Automatic Fault Detection: Machine detects problems automatically. Stops and alarms. Prevents defective cups.
Photoelectric Quality Monitoring: Sensors check cup quality. Ensures consistent product quality.
Automatic Lubrication: Self-lubricating system. Reduces maintenance. Extends machine life.
Stable and Durable: Heavy-duty steel frame. Designed for long hours of continuous operation.
CE Certified: Meets international safety standards. Compliant for export.
Application of Paper Cup Making Machine
Coffee shops – Produce coffee cups in various sizes. Custom printing available. High demand, consistent quality.
Fast food restaurants – Beverage cups for soft drinks and hot drinks. Disposable and hygienic.
Tea shops – Tea cups for hot and cold drinks. Different sizes for different drinks.
Ice cream shops – Ice cream cups and cones. Food-grade paper material.
Office and event supplies – Disposable cups for water and beverages. Convenient for large events.
Food packaging – Paper bowls and food containers. Takeaway packaging.
Advertising and promotional cups – Custom printed cups with logos. Brand promotion through everyday items.
This automatic paper cup machine produces cups for all these applications with the same machine. Just change the mold.
Customer Case – Paper Cup Exports to Brazil and Saudi Arabia
Case 1 – Brazil
A paper cup manufacturer in Brazil needed to expand production. Local demand for disposable cups was growing. The existing semi-automatic machines could not keep up. Labor costs were high. The factory needed faster production.
They purchased YG-120 automatic paper cup machines. Each machine produces 90-120 cups per minute. One operator runs three machines. Production tripled. Labor costs dropped.
The factory owner said: “The YG automatic paper cup machines are fast and reliable. We produce what used to take three shifts in one shift. We are ordering more machines for our new factory.”
Case 2 – Saudi Arabia
A packaging company in Saudi Arabia supplied paper cups to coffee shops and restaurants across the country. They needed high-speed machines to meet growing demand. Quality had to be consistent.
They installed YG-150 high-speed paper cup machines. Production speed is 120-150 cups per minute. The ultrasonic sealing system ensures leak-proof cups. The automatic alarm system detects problems immediately.
The production manager said: “We run these machines 16 hours a day. No breakdowns. No quality issues. The cups are perfect every time. YG machines are the best investment we made.”
FAQ
Q: How many cups per minute?
A: YG-90: 70-90 cups/min. YG-120: 90-120 cups/min. YG-150: 120-150 cups/min.
Q: What cup sizes can it produce?
A: 3-16 oz standard. Custom sizes available on request.
Q: What material does it use?
A: Single-side or double-side PE-coated paper. PLA-coated paper (biodegradable) also works.
Q: Is it fully automatic?
A: Yes. Paper feeding, sealing, heating, forming, and ejection are all automatic. No manual intervention needed.
Q: How many operators are needed?
A: One operator can run 3-5 machines. Very low labor requirement.
Q: What is the machine warranty?
A: One-year warranty on manufacturing defects. Technical support included.
Q: Can it produce paper bowls?
A: Yes. With the right mold, the same machine can produce paper bowls and food containers.
Q: What certifications does it have?
A: CE certified. Meets international safety standards.
Why Choose YG Automatic Paper Cup Machine
YG has been manufacturing paper cup machines for many years. Our automatic paper cup machines feature PLC control, ultrasonic sealing, and automatic lubrication systems. Each machine is tested before shipping.
Why customers choose YG:
- 70-150 cups/min speed – choose the right speed for your production needs
- Fully automatic operation – one operator runs multiple machines
- 3-16 oz cup sizes – flexible for different cup types
- Ultrasonic sealing – strong, leak-proof seams
- PLC control system – intelligent and easy to operate
- Automatic fault detection – reduces downtime
- CE certified – compliant for international export
- Custom molds available – we design molds for your cup specifications
- 24/7 technical support – we help with installation and training
YG automatic paper cup machines have been exported to Brazil, Saudi Arabia, the United States, Turkey, UAE, Indonesia, and many other countries. Customers choose YG for quality, reliability, and value.
