Moving large glass panels into storefront frames and curtain wall openings takes careful coordination. Manual handling increases the physical demands on glazing crews and creates more opportunities for accidental contact with frames, tools, and surrounding structures. The Glass Vacuum Lifter for Sale from YG Machinery uses vacuum gripping and powered positioning to support glass handling during commercial installation.
For glazing contractors, the value lies in controlling the panel through lifting and alignment, not simply moving it off the ground. Correct equipment selection, a suitable suction cup arrangement, and a clear access route all affect installation time, handling risks, and labor requirements.
Glass Vacuum Lifter Specifications
| Parameter | YG-LD-600 |
| Model Type | YG-LD-600 |
| Load Capacity | 600kg |
| Standard Glass Size (L×W) | 3000×2000mm/3500×2000mm/customized |
| Max. Lifting Height | 3700mm |
| Rotary Table | 360° |
| Flip Angle | 90° |

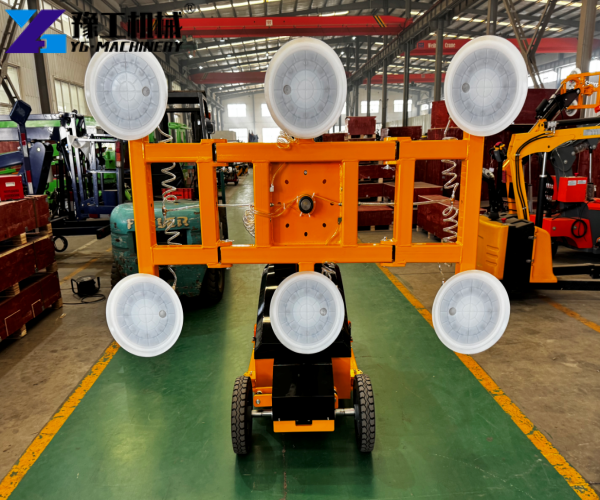

| Standard Suction Cup | 6pcs |
| Voltage | 2×12V/120Ah battery |
| Battery Capacity | 120Ah |
| Battery Charger | Smart Charger |
| Overall Dimension (L×W×H) | 2660×1050×1450mm |
| Machine Weight | 1350kg |
| Min. Turning Radius | 1500mm |
| Packing Size (L×W×H) | 2650×1050×1700mm |
| Loading Capacity | 20ft container: 1 set |
| 40ft container: 2 sets | |
| KG/W.KG | 1 set |
| Suction Cups | The suction cup flips 180° electrically |
| Structure | The pump station automatically maintains pressure |
| Hydraulic Cylinder | Hydraulic ram lift, 100-150mm incrementally optional |
| Manual | The suction cup holder can be manually rotated 360° (electrically powered option) |
| Usages | Mainly used for the handling, movement, and installation of materials in glass, metal, wood, stone, etc. |
Glass Vacuum Lifter for Storefront and Curtain Wall Installation

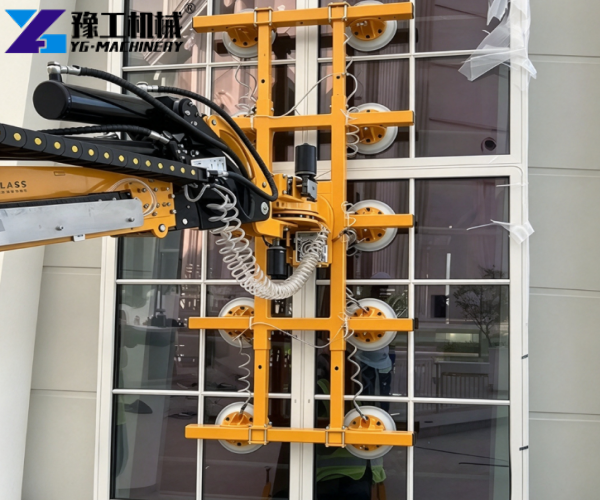

Storefront replacement and curtain wall installation often require crews to guide large panels into narrow frame openings. A panel can reach the work area without difficulty yet remain hard to align when the installation space leaves little room for manual adjustment.
The YG-LD-600 combines vacuum gripping with lifting and positioning functions. When the glass, suction arrangement, and site conditions suit the machine, powered positioning can reduce repeated manual repositioning and give the crew better control during alignment. Actual labor savings depend on panel dimensions, installation height, access conditions, and the lifting method used before the equipment arrives.
Before delivery, measure the complete route from unloading to installation. Check doorways, corridors, turning areas, floor conditions, and space for staging glass. A machine that cannot pass through the available entrance can disrupt the installation schedule even when its lifting capacity matches the panel weight.
Glass Vacuum Lifter Capacity and Suction Cup Setup
Rated load capacity is only one part of glass handling. The suction cup layout must also suit the panel’s dimensions, shape, surface condition, and center of gravity. Uneven load distribution can affect stability even when the panel weighs less than the machine’s rated capacity.
The standard six-cup arrangement should not be assumed suitable for every panel within the stated weight limit. Provide the factory with the glass drawing, dimensions, weight, surface finish, and required orientation. Ask for confirmation of the approved cup layout and operating limits for the intended application.
Glass condition matters as well. Cracked panels, damaged edges near the gripping area, porous surfaces, and surfaces that cannot maintain an adequate vacuum seal require special assessment and should not be lifted with a standard setup unless the manufacturer expressly approves the application. Laminated glass with bubbles or delamination also requires evaluation before lifting. Never use the equipment when the glass condition or seal cannot support safe handling.
Glass Vacuum Lifter Supplier for US Buyers
Contractors searching for a glass vacuum lifter supplier USA can contact YG Machinery in China for factory-direct pricing. The factory can discuss configuration, optional functions, shipping arrangements, replacement parts, and technical documentation for the selected machine.
A useful quotation should cover more than the purchase price. Ask for the final equipment configuration, packing details, freight costs, production lead time, warranty terms, spare-part availability, and the documents supplied with the machine. Confirm any requested alarms, backup systems, or certification documents in writing rather than assuming they come as standard.
For projects with fixed installation dates, also ask about replacement suction cup and seal lead times. A planned maintenance schedule and access to compatible parts can reduce the chance of avoidable delays.
Glass Vacuum Lifter Case in Austin Texas
A storefront renovation in Austin, Texas, involved replacing large glass panels inside an occupied commercial building. The crew needed to move the lifter into the work area without obstructing other trades.
The side entrance measured 36 inches wide, while the machine body measured approximately 41.3 inches wide. The equipment could not pass through that entrance. The crew therefore used a wider access point and arranged the glass staging area near the storefront before beginning installation.
Once the panels reached the work area, the crew used the suction cups to grip the glass and the machine’s lifting and positioning functions to align the panels with the storefront frame. The case highlights an important planning issue: equipment access and glass staging need to be resolved before the installation shift, not after the machine arrives.
Customer Feedback
“The entrance was our main access problem. Bringing the equipment through a wider opening and staging the glass closer to the storefront made it easier to coordinate the installation. Controlled lifting and positioning were useful when aligning the panels with the frame.”
Glass Vacuum Lifter Shipping and Spare Parts Support
The stated packing dimensions for the YG-LD-600 are 2650 × 1050 × 1700 mm. The listed loading arrangement allows one unit in a 20 ft container or two units in a 40 ft container. Confirm final packing dimensions, loading arrangements, and freight costs for the destination before shipment.
Request a spare-parts list, maintenance instructions, written warranty terms, and current lead times for replacement suction cups and seals. Confirm charger requirements and the process for obtaining technical support after delivery.
For contractors managing several projects, parts availability and maintenance instructions matter when planning equipment downtime. Identify compatible replacement components before the machine enters regular service.
Buy Glass Lifting Robot YG-LD-600
The YG-LD-600 is designed for glass handling tasks that require vacuum gripping, lifting, and controlled positioning. Its suitability depends on panel dimensions, surface condition, site access, and the functions required during installation.
Contact YG Machinery for a factory-direct quotation and request written confirmation of the proposed configuration, safety devices, technical documentation, shipping arrangements, and spare-parts support before placing an order.
