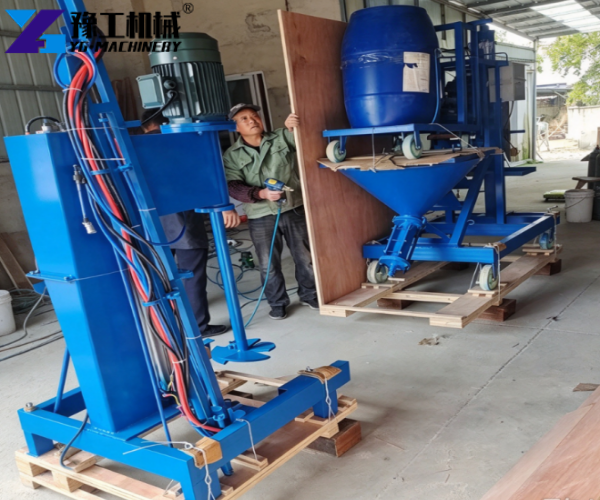

A Bahrain-based construction contractor ordered several GRC machine units from YG Machinery for architectural surface work. The project involved spraying glass fiber reinforced concrete onto building components that required a consistent surface layer and controlled material feeding. Local site conditions also influenced the working process, as high temperatures and dust require operators to keep material handling and machine cleaning under control.

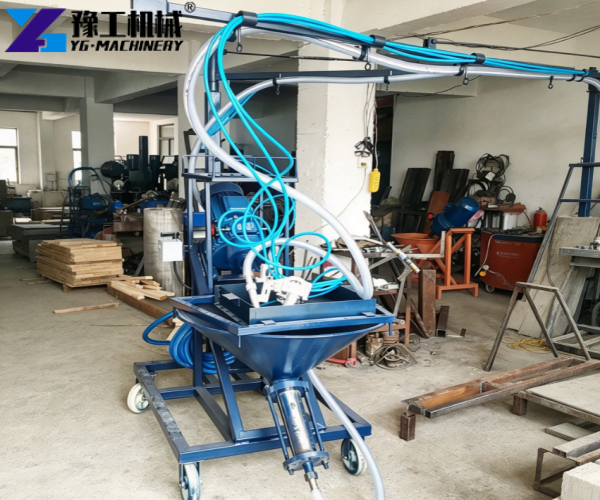

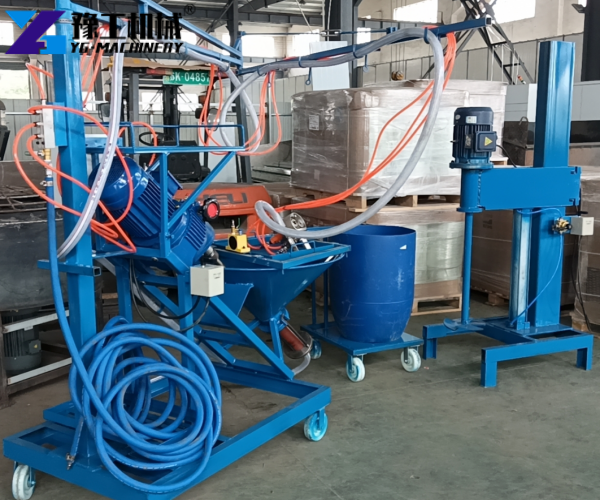

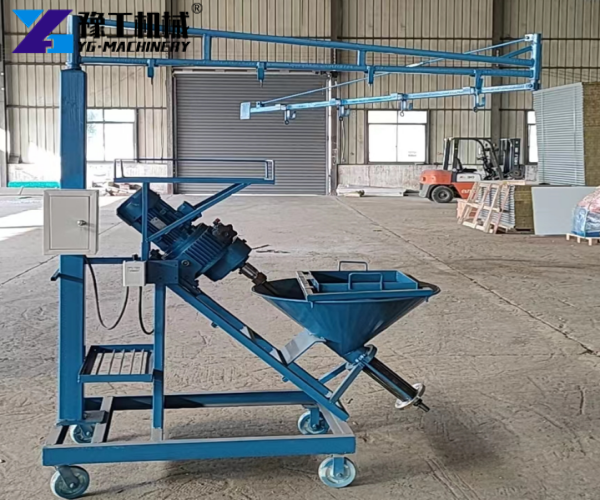

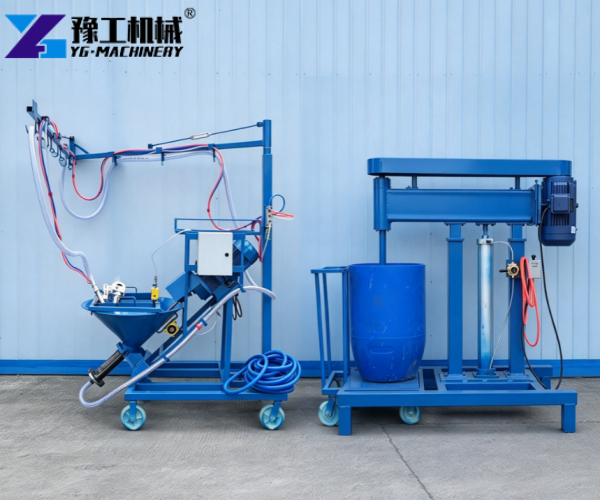

For this order, the contractor selected Screw GRC Shotcrete Machines. The machines combine screw feeding with continuous spraying, giving operators direct control over material delivery during façade and architectural concrete work. Instead of moving between separate material feeding and spraying processes, operators could handle the application through one machine.
Parameters of GRC Spray Machine
| Item | Specification |
| Machine Name | Screw GRC Shotcrete Machine |
| Voltage | 380v, 3phase |
| Frequency | 50hz |
| Power | 2.2-4.0kw step-less speed regulation motor |
| Rotating speed | 20-200r/min, speed regulation when the machine is running |
| Work area | 4.5M (Horizontal boom radius) |
| Delivery capacity | 300-1600kg/h |
| Capacity | 60L |
| Working pressure | 0.6-0.8mpa |
| Productivity | 200-400㎡/h |
| Machine size | 140010002200mm |
| Machine Weight | 220kg |
Glass Fiber Reinforced Concrete Spraying Process
For this Bahrain project, workers used the GRC shotcrete machine for architectural concrete application on building components. The spraying process starts with material preparation, followed by feeding, mixing, and continuous delivery through the spray system.
Operators need to keep material consistency stable before spraying. Uneven material preparation affects the spray pattern and may increase finishing work later. During application, workers watch the surface condition and adjust feeding speed when the shape or thickness of a section changes.
Curved surfaces require more attention than flat panels. Operators need to keep spray distance and material flow steady so that the coating remains even around edges and changes in surface direction.
A typical working sequence includes:
- Prepare and check GRC material before feeding.
- Load material into the machine hopper.
- Start screw feeding and adjust material flow.
- Direct the spray gun toward the prepared surface.
- Keep spraying movement steady across each section.
- Check the applied layer during work and finish the surface where required.
- Clean the feeding and spraying components after operation.
This process suits architectural components where workers need continuous material delivery rather than small-area manual application. It also gives operators more direct control over spray output during different stages of a project.
GRC Machine Operation in Bahrain
Bahrain construction sites often involve concrete and façade work under hot, dry conditions. Dust can enter working areas easily, while high temperatures place additional demands on daily equipment maintenance. For this reason, operators need a clear cleaning routine and regular checks before each shift.
With several machines on one project, different operators can handle separate work areas at the same time. This arrangement also reduces the need to move one machine repeatedly between distant sections.
For daily operation, workers pay particular attention to material feeding, spray consistency, hose condition, and machine cleanliness. Screw feeding also gives operators a practical way to adjust output when working through different architectural sections.
The contractor’s operators found that control over material feeding mattered most when moving from broad flat surfaces to narrower or curved sections. Rather than keeping one setting throughout the entire job, operators adjusted the machine according to the section they were spraying. This made the spraying process more manageable across different façade shapes.
Customer Feedback
After using the machines on the project, the contractor gave positive feedback about the way operators could control material delivery during spraying.
“We needed more control when moving between different façade sections. The screw feeding system gave our operators a direct way to adjust material flow during spraying. They did not need to keep the same setting for every section, which made work easier when the surface shape changed.”
The contractor also paid attention to daily cleaning because Bahrain’s dusty environment can affect equipment if material remains inside feeding or spraying components. Operators followed routine cleaning after work so the machines remained ready for the next shift.
YG Machinery also provided technical communication during the order process, helping the contractor understand machine operation and routine maintenance before use. Engineers remained available online for technical questions during the project.
For architectural concrete projects that require controlled material feeding and continuous spraying, this GRC spray machine provides a practical option for façade and decorative concrete application. YG Machinery also supplies technical support for overseas orders, helping customers select suitable configurations and operate the machines according to project requirements.
