In July 2026, a concrete renovation contractor in Monterrey, Mexico, used a concrete wire saw to section a heavily reinforced concrete structure during a renovation project. The target section measured approximately 650 mm thick and contained dense rebar. The planned cutting route covered about 18 metres, followed by lifting and removing the separated concrete section.
The contractor needed a controlled cutting method because the surrounding structure had to remain ready for the next construction stage. At the same time, limited working space made equipment positioning and operator control important throughout the job. After discussing the site conditions with YG Machinery, the contractor selected the YG-600 for the project.
Parameters Of Concrete Wire Saw
| Parameters | YG-600 |
| Max. Power | 25KW |
| Motor Cooling Method | Air cooling |
| Rated Voltage | 380V 50HZ 3phase |
| Pressure Stages | 3 |
| Max. Operating Pressure | 200bar/20Mpa |
| Oil Flow Rate | 30-80L/min |
| Dimensions (LWH) | 650mm×600mm×1150mm |
| Weight | 180kg |
| Remote Controller Parameters | Wireless control |
| Control Voltage | 24V |
| Remote Controller Dimensions (LWH) | 300×200×150mm |
| Remote Controller Weight | 2kg |
Reinforced Concrete Cutting Project in Monterrey
The contractor worked on an existing structure where the team needed to separate one defined section instead of demolishing a larger area. The concrete measured approximately 650 mm in thickness, while dense steel reinforcement increased resistance along parts of the cutting route.
Preparing the Diamond Wire Cutting Route

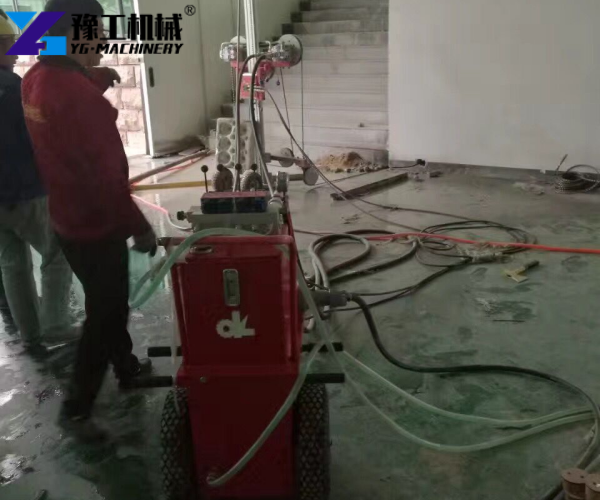

Before operation, the team positioned the YG-600 beside the target section and arranged the diamond wire around the structure. The operators checked the wire path and machine position before starting the hydraulic drive.
The team planned approximately 18 metres of cutting. Because the structure contained different levels of reinforcement density, the operators expected changes in cutting resistance along the route.
Controlling the Cutting Process
The hydraulic drive moved the diamond wire through the concrete and steel reinforcement. As the wire reached areas with denser rebar, resistance increased. The operator monitored the machine and adjusted the hydraulic working condition according to the cutting response.
Wire alignment also required attention during the operation. The team maintained the planned cutting direction and repositioned the equipment when the work area required a new setup.
Diamond Wire Cutting Through 650 mm Concrete
The main diamond wire cutting work took approximately 7 hours for the planned 18 metres. Cutting speed varied according to reinforcement density and equipment repositioning.
The continuous diamond wire created a defined separation path through the thick structural section. Unlike impact demolition, the process focused on following predetermined cutting lines rather than breaking a larger surrounding area.

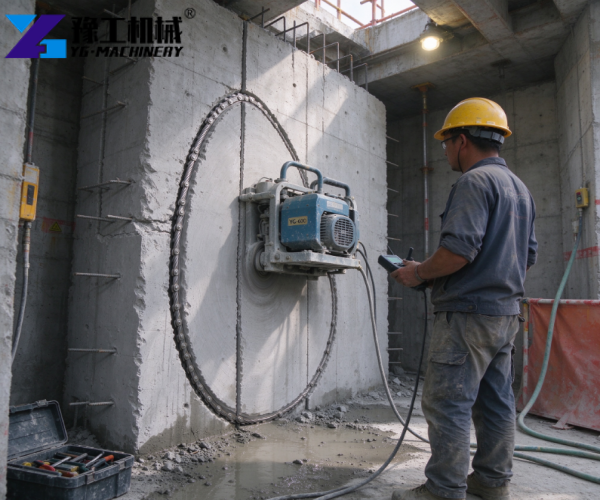

Meanwhile, the wireless controller allowed the operator to manage the machine from a suitable position. This arrangement helped the team work around the restricted renovation area while monitoring wire movement and hydraulic operation.
After the team completed the required cuts, workers separated the concrete section and connected it to lifting equipment. They then removed the section and prepared the remaining structure for the next renovation stage.
Hydraulic Concrete Wire Saw for Structural Cutting
The Mexico project combined several demanding conditions:
- 650 mm thick concrete
- Dense steel reinforcement
- Approximately 18 metres of cutting
- Restricted equipment access
- 380V three-phase power
- Lifting and removal after cutting
YG-600 handled the cutting process through its hydraulic drive and adjustable operating pressure. Its three pressure stages gave the operator additional control when the diamond wire saw encountered different levels of resistance.
In addition, the machine measures 650 × 600 × 1150 mm and weighs 180 kg. The contractor used this configuration within the available working area, while the separate wireless controller provided a practical operating position for concrete wire saw cutting in restricted spaces.
Customer Feedback on the Concrete Cutting
Carlos Hernández, project manager at a Monterrey-based concrete renovation contractor, shared his feedback after the main cutting work:
“The YG-600 gave our team good control during the cutting process. The section contained dense steel reinforcement, so the resistance changed at different points. The hydraulic adjustment and wireless controller helped us manage these changes while following the planned cutting route.”
He also noted that the equipment suited the restricted renovation area. After finishing the cutting work, his team removed the separated section with lifting equipment and continued with the following construction stage.
YG Machinery Factory Support for Concrete Wire Saws

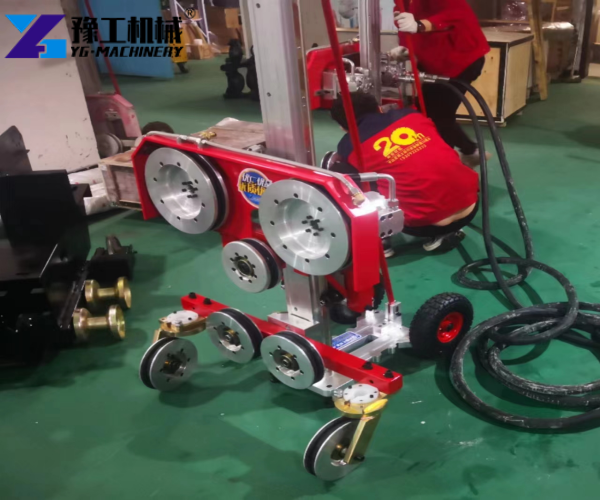

YG Machinery manufactures concrete cutting equipment for overseas construction and renovation projects. The factory combines equipment assembly, hydraulic system integration, machine testing, and export preparation within its production process.
Before shipment, YG team undergoes inspection of its hydraulic system, control components, machine dimensions, and operating functions. This process helps ensure that the delivered equipment matches the specified configuration.
YG Machinery also supports overseas customers with equipment documentation, operating guidance, spare parts supply, and after-sales technical support. With this factory-based support, the Mexico contractor received the complete cutting system for its reinforced concrete renovation work.
