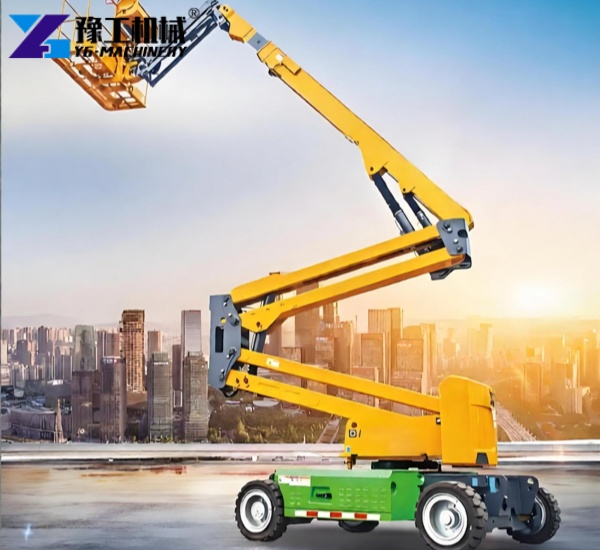

An Articulating Scissor Lift provides a working platform for installation, inspection, maintenance, and repair tasks at height. Its lifting system provides vertical access, while the horizontal extension helps reach work points away from the machine base. It can be used in warehouses, factories, commercial buildings, and outdoor work areas.
The machine reaches a 12 m maximum working height, with a 10 m maximum platform height and 5.8 m maximum horizontal extension. The platform supports up to 200 kg, and the machine has 25% gradeability. The minimum turning radius is 2.16 m, with travel speeds of 3 km/h when lowered and 0.8 km/h when raised.
Articulating Scissor Lift Specifications
| Parameter | Value |
| Maximum Working Height | 12 m |
| Maximum Platform Height | 10 m |
| Maximum Horizontal Extension | 5.8 m |
| Maximum Span Height | 4.78 m |
| Maximum Load Capacity | 200 kg |
| Gradeability | 25% |
| Minimum Turning Radius | 2.16 m |
| Travel Speed | 3 km/h / 0.8 km/h |
| Machine Length (Closed) | 4.35 m |
| Machine Width (Closed) | 1.5 m |
| Machine Height (Closed) | 1.99 m |
| Platform Size | 1.1 × 0.65 × 1.13 m |
| Turntable Rotation | 355° |
| Platform Rotation | 120° |
| Ground Clearance | 0.15 m |
| Gross Weight | 4700 kg |
Articulating Scissor Lift Power and Hydraulic System
The lift uses a 48 V / 320 Ah battery and a 48 V / 40 A charger. The control voltage is 24 V, while the hydraulic tank has a 40 L capacity.
Other power and running specifications include:
- Control Voltage: 24 V
- Battery: 48 V / 320 Ah
- Charger: 48 V / 40 A
- Hydraulic Tank: 40 L
- Wheelbase: 1.65 m
- Drive Wheel Size: 0.59 × 0.19 m / 0.66 × 0.17 m
Battery capacity should be matched to the expected working schedule. Lifting frequency, travel distance, load, and site conditions all affect power consumption.

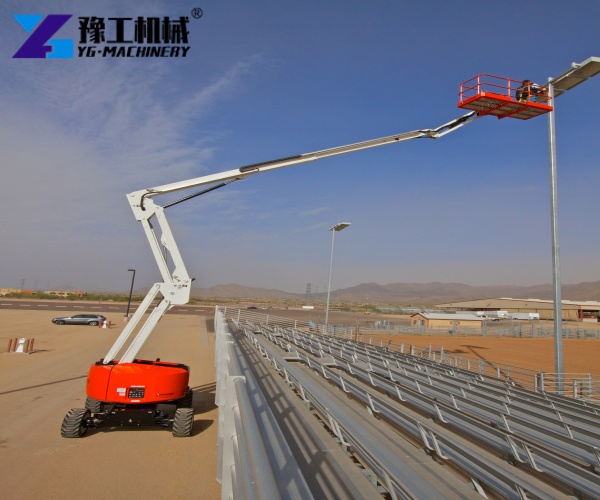

Working Height, Horizontal Reach and Platform Capacity
The 10 m platform height is suitable for elevated maintenance and installation work, while the 12 m working height provides additional reach above the platform. With a 5.8 m horizontal extension, the machine can access work points that are not directly above its base position.
The platform size is 1.1 × 0.65 × 1.13 m, with a maximum load of 200 kg. This capacity covers the workers, tools, and materials carried on the platform.
For positioning, the turntable rotates 355° and the platform rotates 120°. The operator can adjust the working position without repositioning the entire machine for every task.
Indoor and Outdoor Working Applications
The Articulating Scissor Lift can handle different elevated work requirements in indoor and outdoor areas.

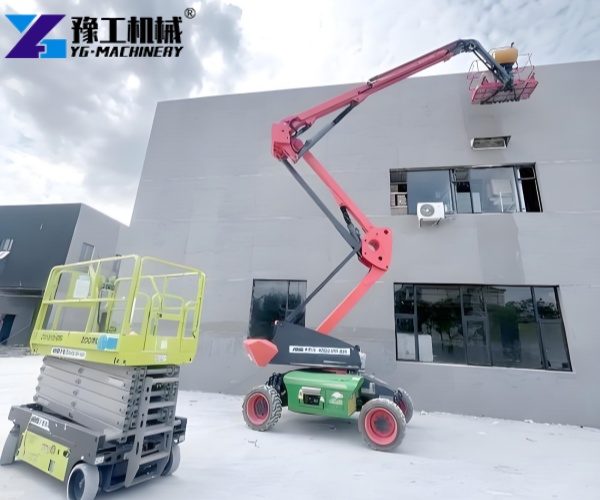

Warehouse Maintenance
The lift can be used for rack inspection, lighting work, cable installation, and maintenance above warehouse floors.
Factory Work
The platform provides access to factory beams, pipes, lighting systems, and fixed production equipment.
Building Maintenance
Typical tasks include inspection, installation, repair, and maintenance of building facilities at elevated positions.

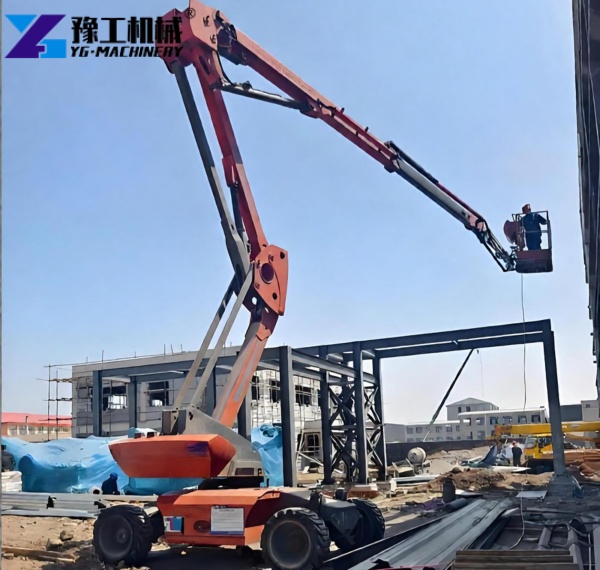

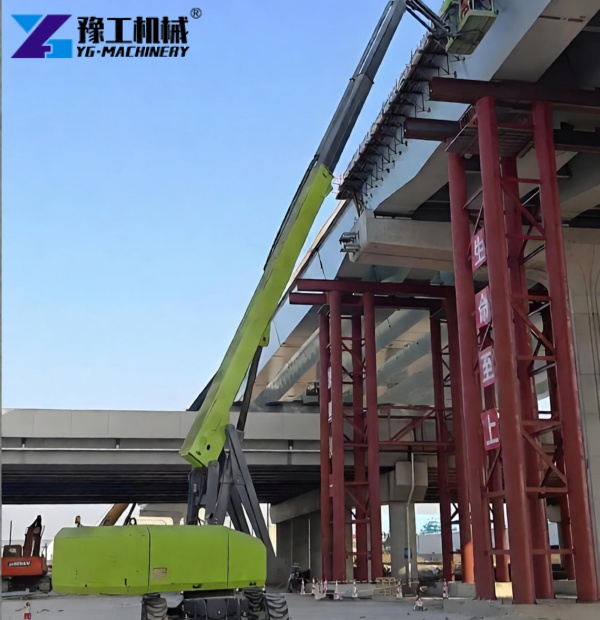

Outdoor Construction
With 25% gradeability, 0.15 m ground clearance, and the specified drive wheel configuration, the machine can be used on suitable outdoor work surfaces. The actual working area should be checked for slope and ground conditions before operation.
Machine Dimensions and Site Requirements
When closed, the machine is 4.35 m long, 1.5 m wide, and 1.99 m high. The 2.16 m minimum turning radius is also important when planning indoor routes and work areas.
Before bringing the machine to the site, check:
- Door and entrance dimensions
- Warehouse aisle width
- Turning space
- Ground slope
- Ground surface
- Charging area
- Transport and loading conditions
The gross weight is 4700 kg, so the transport vehicle and loading equipment need to support the machine weight.
Articulating Scissor Lift Selection Requirements
The required work point should be the starting point when selecting the lift. Check the following specifications together:
- Working height: Height of the highest required work point.
- Platform height: Required position of the working platform.
- Horizontal extension: Distance between the machine base and the work point.
- Load capacity: Total weight of workers, tools, and materials.
- Machine dimensions: Available doors, aisles, and turning areas.
- Ground conditions: Slope, surface type, and available ground clearance.
- Power requirements: Battery capacity and charging conditions.
For applications requiring around 10 m platform height and additional horizontal reach, these factors should be checked together rather than selecting the machine based on height alone.
Articulating Scissor Lift from YG
YG supplies this Articulating Scissor Lift for elevated maintenance, installation, inspection, and construction work. The configuration provides a 12 m maximum working height, 5.8 m horizontal extension, 200 kg load capacity, and 48 V / 320 Ah battery system.
When requesting a quotation, provide the required working height, horizontal reach, load, site dimensions, ground conditions, and expected operating schedule. These details help determine whether the listed configuration matches the working environment.
FAQ
What is the maximum working height of the Articulating Scissor Lift?
The maximum working height is 12 m, with a maximum platform height of 10 m.
What is the maximum load capacity?
The platform can carry up to 200 kg, including workers, tools, and materials.
What is the maximum horizontal extension?
The maximum horizontal extension is 5.8 m. The actual working position also depends on the required height and site conditions.
Can the Articulating Scissor Lift work on slopes?
The machine has 25% gradeability. The ground surface and slope should be checked before operation.
What battery does the lift use?
The machine uses a 48 V / 320 Ah battery with a 48 V / 40 A charger.
