Ground‑mounted solar installations keep expanding rapidly across Germany. For EPC contractors and piling subcontractors, reliable solar pile drivers are essential to set steel foundation piles for PV racking.Many German farmland PV sites come with tough constraints: dense glacial clay raises driving resistance, narrow field tracks rule out oversized rigs, and strict survey requirements leave little tolerance for crooked piles. Delays and rework quickly eat into project margins, especially on tight construction timelines. Our crawler photovoltaic pile driver is built to solve these on‑site headaches for German solar projects.

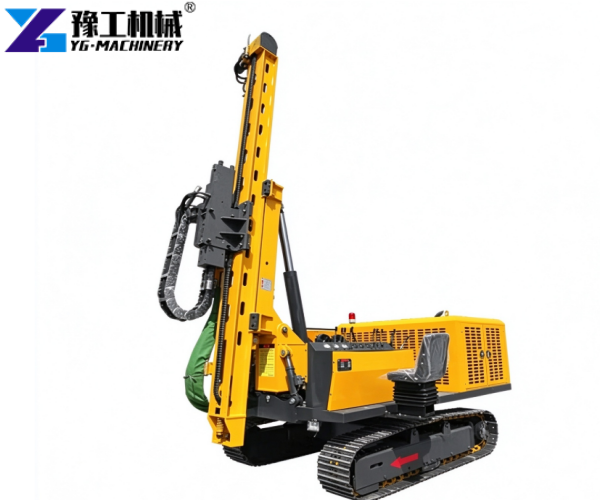

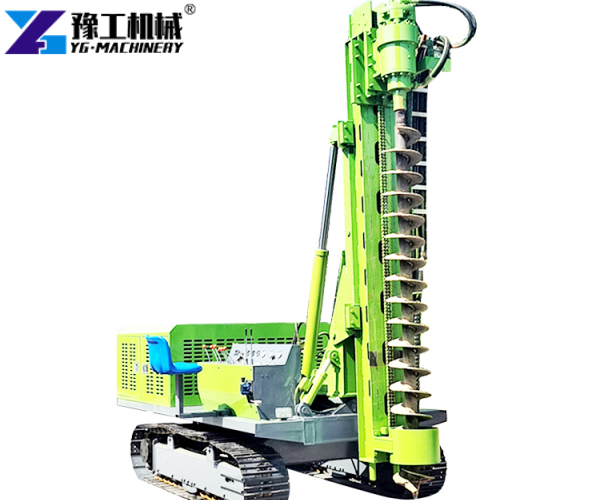

Solar Pile Driver Specifications
| Item | Parameter | Item | Parameter |
| Model | Crawler photovoltaic pile driver | Hydraulic hammer flow | 50–110 L/min |
| Overall dimensions | 4700 × 2200 × 2800 mm | Impact frequency | 350–800 BPM |
| Track shoe width | 400 mm | Hydraulic system pressure | 25 MPa |
| Motor | 4108 | Strong wind heat dissipation | Yes |
| Generator power | 88 kW Motor | Oil pump | 40/40/32 |
| Drilling depth | 0–6 m | Driving speed | 3 km/h |
| Drilling diameter | 80–600 mm |
For German solar projects, key selection factors include pile length, pile diameter, soil conditions, and site access width. The 0–6 m drilling depth and 80–600 mm drilling diameter cover a range of ground-mounted PV foundation designs. However, contractors need to match the final configuration to pile drawings and soil conditions. Check the 400 mm track shoe width and overall dimensions against site roads, working aisles, and transport restrictions before delivery.

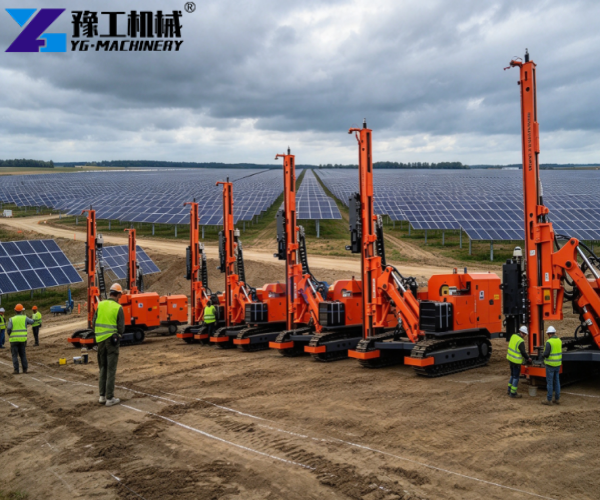

Ground-Mounted Solar Piling Project in Bavaria, Germany
Bavaria has an established solar energy sector. Ground-mounted installations across the region require extensive foundation work. Daniel Schneider, a project manager at a local solar construction company, oversees foundation installation at a solar farm in Bavaria.
The site covers several work zones, and soil conditions vary across planned pile rows. Compact clay creates greater resistance in some sections, while other areas allow direct pile driving under the foundation design. Crews must maintain pile alignment and coordinate foundation work with deliveries of steel piles and mounting structures.
Daniel’s company ordered three hydraulic hammer solar pile drivers from YG Machinery. The team planned to assign one machine to each work zone instead of moving a single machine across the entire site. This setup allowed crews to work in parallel and reduced equipment scheduling conflicts.
Some sections require pre-drilling before pile installation. Workers check ground conditions and foundation drawings before choosing the installation method. Crews also follow consistent pile positioning standards across all three zones to maintain alignment with the planned mounting structures.
On-Site Pile Installation Workflow
Crews follow foundation drawings and marked pile positions throughout installation. Workers use direct impact driving where ground conditions and design requirements permit it. In compact clay, they pre-drill to the specified depth when the approved construction method requires it. The hydraulic hammer then drives each pile into position.
After the first few impacts, the operator checks pile verticality. If a pile begins to deviate from its marked position, the operator stops and adjusts the machine before continuing. This check reduces alignment errors before workers install the solar mounting structures.
The three work zones follow a shared site procedure:
- Pile positioning: Survey marks identify each foundation pile location before installation.
- Pre-drilling: Workers prepare holes in sections where the foundation design requires them.
- Impact driving: Operators use the hydraulic hammer to drive piles according to the approved installation method.
- Progress records: The site manager records completed work, difficult ground sections, and maintenance tasks.
Long periods of impact driving in hard soil place extra demands on the hydraulic system. Operators check hydraulic oil levels, hose connections, and hammer condition at the start and end of each shift. They record oil leaks or abnormal impact frequency and report these issues to the site manager before the next shift.
Project Progress and Customer Feedback
With three crawler solar pile drivers assigned to separate zones, crews can install foundation piles across several areas without moving one machine between every section. Each crew follows its own work sequence, while the site manager coordinates pile deliveries and access routes.
Compact clay still affects daily progress because some sections require pre-drilling before impact driving. Crews change the work sequence to keep other zones moving while workers handle these sections. Operators also maintain inspection records during intensive driving periods.
Daniel Schneider described his team’s experience:
“We ordered three units because moving one machine across the site was wasting too much time. In the clay sections, we had to pre-drill before driving, so the schedule changed from zone to zone. The machines helped us run three areas in parallel, but we still had to watch hydraulic oil levels during long driving shifts in harder ground.”
Parallel installation gave the contractor more room to organize work across the site. Routine checks also remained part of daily operations, particularly during extended periods of impact driving in compact soil.
YG Factory Supply and After-Sales Support

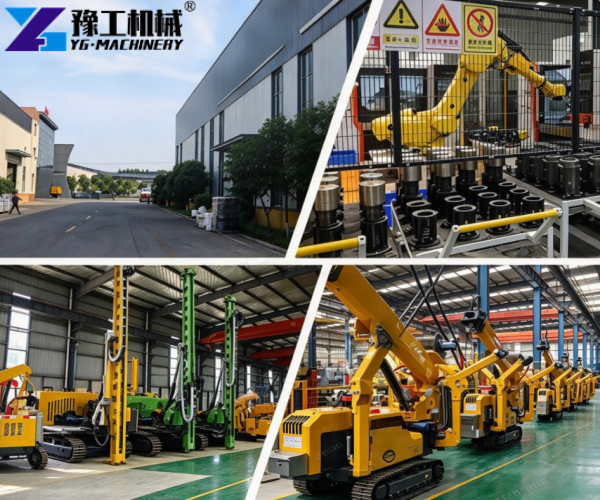

YG Machinery manufactures and exports construction machinery for overseas customers. For German contractors seeking solar pile driving equipment in Germany, the factory reviews pile dimensions, required installation depth, soil conditions, and site access before discussing machine configuration.
YG can coordinate several items with customers:
- Machine configuration: Review pile drawings, drilling requirements, and foundation specifications.
- Technical documents: Confirm available operation manuals, maintenance instructions, and applicable compliance documents for the selected machine.

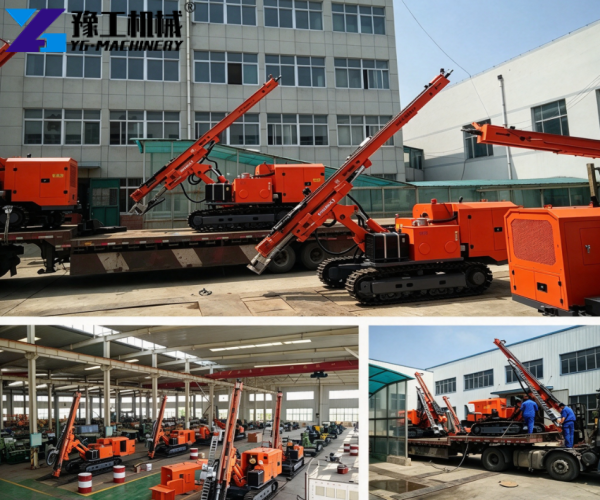

- Shipping arrangements: Discuss transport to German destinations, including Hamburg and Bremerhaven, subject to the final shipping plan.
- Spare parts and technical support: Discuss spare-parts supply, remote troubleshooting, and maintenance support before order confirmation.
- Delivery schedule: Confirm production lead time after the machine configuration and order details are agreed.
German buyers should confirm applicable CE conformity requirements and the documents supplied with the specific machine before purchase. YG can also discuss English manuals and any need for German-language technical support during the order process.
Request a Solar Pile Driver Quote
If you need a solar pile driver for sale , send YG Machinery the following project details to start the equipment selection process:
- Pile length and diameter
- Required installation depth
- Soil report or soil type
- Estimated pile quantity
- Site access width and road conditions
- Project location in Germany
