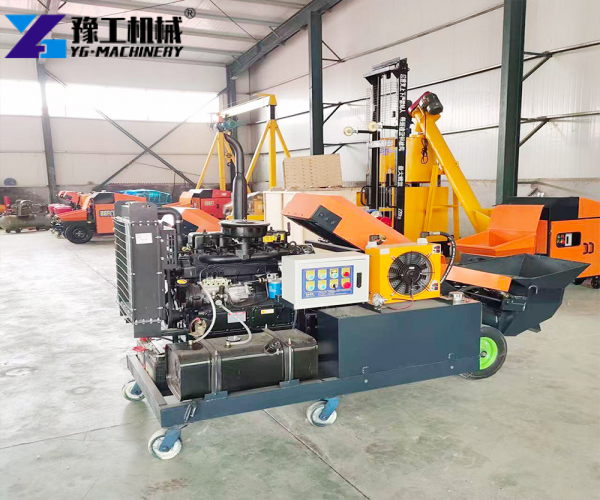

A small concrete pump machine for sale is used to transfer ready-mixed concrete through delivery pipes to foundations, floors, walls, columns, and other construction points. Its compact structure suits residential construction, small building projects, repair work, and sites where large concrete pumps are difficult to position.

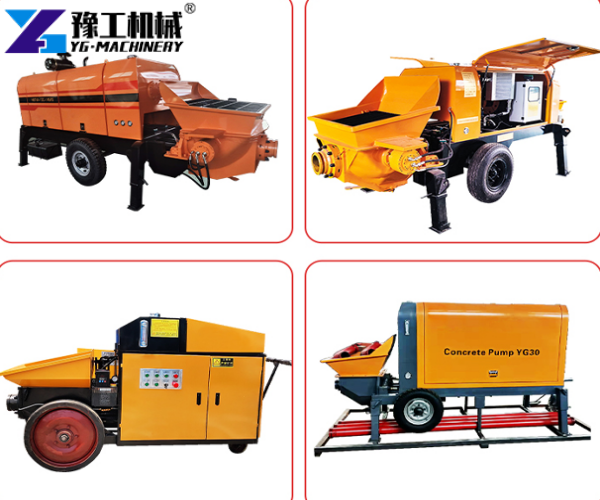

Small Concrete Pump Machine Technical Parameters
| Model | YG-10 | YG-20 | YG-30 | YG-40 | YG-50 |
| Work Efficiency | 8-10m³/h | 8-12m³/h | 13-15m³/h | 20-25m³/h | 30-35m³/h |
| Aggregate Size | 0-3cm | 0-2cm | 0-3cm | 0-4cm | 0-4cm |
| Vertical Conveying Distance | 20-30m | 40-50m | 20-60m | 30-130m | 30-150m |
| Horizontal Conveying Distance | 50-80m | 80-100m | 50-150m | 50-350m | 50-500m |
| Delivery pipe diameter | 80-100mm | 80-100mm | 80-125mm | 80-125mm | 80-125mm |
| Dimensions | 2100×890×1330 mm | 3200×1480×1600 mm | 3800×1600×1800 mm | 3880×1650×1680 mm | 4300x1600x1800mm |
Mini Concrete Pump Machine Features
- Compact structure: The pump combines the hopper, pumping system, and delivery line in one machine.
- Pipe-based delivery: Fresh concrete moves from the hopper through the delivery pipe to the required pouring point.
- Flexible site layout: The pump stays near the mixer while the pipe runs to foundations, floors, walls, or other pouring areas.
- Easy site access: The compact design suits residential projects, building extensions, repair work, and construction areas with limited working space.
- Multiple model options: The range covers different concrete output, conveying distance, aggregate size, and site requirements.
- Practical operation: Separating the mixing point from the pouring point reduces the need to move large equipment around the building site.

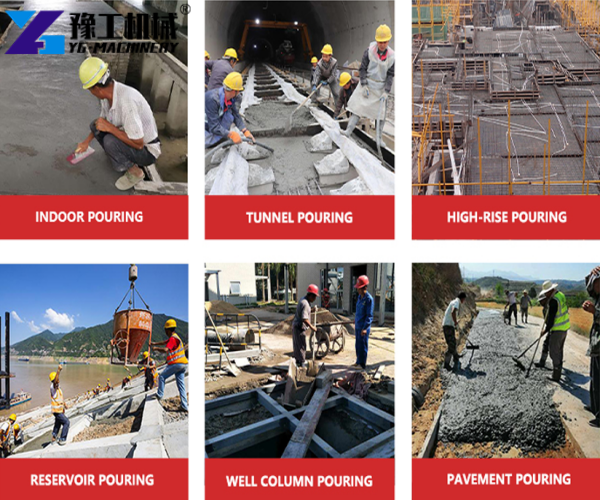

Small Concrete Pumping Machine Applications
A small concrete pumping machine handles concrete placement for:
- Residential houses and villas
- Foundations and footings
- Floor slabs
- Columns and beams
- Concrete walls
- Building extensions
- Small commercial buildings
- Repair and renovation projects
For residential construction, the mixer may stay near the site entrance while the delivery pipe reaches a rear foundation or upper floor. Meanwhile, building extensions often have limited space around the existing structure.
On repair jobs, a pipe route gives crews access to pouring points that larger equipment cannot easily reach. This layout also keeps the main pumping equipment away from areas where workers need to move materials or carry out other construction work.
Why Choose YG Machinery for a Small Concrete Pump Machine For Sale
YG Machinery provides small concrete pump solutions for residential construction, foundations, building extensions, and other projects with limited working space.
Flexible configurations: Buyers can discuss different pump configurations and pipe arrangements according to the actual construction site.
Complete pump solutions: We can supply the pump together with delivery pipes, fittings, and commonly required spare parts.
Model selection support: Our team checks the required output, aggregate size, conveying distance, pipe layout, voltage, and project location before recommending a configuration.
Factory-direct supply: YG Machinery manufactures and supplies concrete equipment directly, making it easier to confirm specifications, accessories, and order details.
Export experience: We handle overseas orders with equipment packing, shipping documents, and other export requirements.
Technical support: Our team provides guidance on equipment operation, routine maintenance, troubleshooting, and spare-parts requirements after delivery.
Small Concrete Pump Case in Nigeria
In August 2026, Daniel Okafor, a site manager in Abuja, ordered a small concrete pump for a three-storey residential building.
Located near the site entrance, the concrete mixing area sat about 80 m from the rear section of the building. Meanwhile, the highest delivery point was approximately 25 m above the pump position. Concrete with aggregate up to 20 mm required a working output of around 18–22 m³/h.
For this project, the quotation listed a YG-40 with delivery pipes and spare parts. The planned pipe route covered about 80 m horizontally and 25 m vertically.
During the main construction stages, daily concrete placement was scheduled for 6–8 hours. Routine spare parts were included in the same order.
Before shipment, the YG team checked the equipment configuration, packing details, and shipping documents for delivery to Abuja.
Small Concrete Pump Price and Buying Information
The price of a small concrete pump for sale varies according to the model, configuration, accessories, and destination. For overseas orders, freight, packing, and inland transport may also affect the delivered cost.
A quotation normally requires:
- Project location
- Required concrete output
- Aggregate size
- Horizontal conveying distance
- Vertical conveying distance
- Delivery pipe length
- Preferred model
- Spare parts requirements
For overseas orders, the quotation can include the pump, delivery pipes, spare parts, packing method, and shipping terms. Buyers can confirm these items before placing the order.
FAQ About Mini Concrete Pump
How much does a small concrete pump cost?
Pricing depends on the model, output, configuration, delivery pipes, spare parts, and shipping destination. For an accurate quotation, send the project location and required specifications to YG Machinery.
What power supply does the pump require?
Power requirements depend on the selected configuration. When requesting a quotation, provide the local voltage and frequency so YG Machinery can check the suitable setup.
What accessories come with a small concrete pump?
Delivery pipes form part of the pumping system. Depending on the project, buyers can also order pipe fittings, clamps, cleaning equipment, and spare parts.
How long does delivery take?
Lead time depends on the selected model, production schedule, order quantity, and destination. For overseas orders, YG Machinery confirms the production and shipping schedule before shipment.
Can I order spare parts with the pump?
Yes. Common replacement parts can be included in the same order. The parts list varies according to the pump model and expected working conditions.
Does YG Machinery provide after-sales support?
Yes. YG Machinery provides technical support for operation, maintenance, troubleshooting, and spare-parts requirements after delivery.
