A mini concrete pump is used for continuous concrete delivery at construction sites. It is suitable for residential construction, foundation work, road repair, floor construction, and restricted work areas. The pump delivers concrete through pipes to the required pouring location. YG provides models with different power, output, pressure, and pumping distances.
Mini Concrete Pump Technical Parameters
YG models have an output range of 8–60 m³/h. Pumping pressure ranges from 10–23 MPa. Vertical pumping distance ranges from 20–150 m. Horizontal pumping distance ranges from 50–500 m. Maximum aggregate size and pipe diameter vary by model.
| Parameter | YG-1 | YG-2 | YG-3 | YG-4 | YG-5 | YG-6 |
| Motor Power | 15 kW / 25 hp | 22 kW / Diesel 4102 | 37 kW / Diesel 4105 | 45 kW / Diesel 4108 | 55 kW / Diesel 6102 | 90 kW |
| Output | 8–10 m³/h | 8–12 m³/h | 13–15 m³/h | 20–25 m³/h | 30–35 m³/h | 55–60 m³/h |
| Pressure | 10 MPa | 15 MPa | 20 MPa | 23 MPa | 23 MPa | 23 MPa |
| Max Aggregate | 0–3 cm | 0–2 cm | 0–3 cm | 0–4 cm | 0–4 cm | 0–5 cm |
| Vertical | 20–30 m | 40–50 m | 20–60 m | 30–130 m | 30–150 m | 30–150 m |
| Horizontal | 50–80 m | 80–100 m | 50–150 m | 50–350 m | 50–500 m | 50–500 m |
| Pipe Diameter | 80–100 mm | 80–100 mm | 80–125 mm | 80–125 mm | 80–125 mm | 125 mm |
| Weight | 600 kg | 900 kg | 1600 kg | 2200 kg | 2200 kg | 3500 kg |
| Dimensions | 2100×890×1330 mm | 3200×1480×1600 mm | 3800×1600×1800 mm | 3880×1650×1680 mm | 4300×1600×1800 mm | 4300×1600×1800 mm |
Mini Concrete Pump for Different Concrete Delivery Requirements
Choose the pump according to the required output and pumping distance. For lower delivery requirements, models with 8–12 m³/h output provide the corresponding capacity. Medium requirements can use models with 13–25 m³/h output. For higher continuous delivery, 30–60 m³/h models provide a larger pumping capacity.
For long-distance pumping, pressure, pipe diameter, and pipe layout also affect the selection. In addition, maximum aggregate size ranges from 0–2 cm to 0–5 cm across the available models. Confirm the aggregate size and concrete mix before purchase to match the pump correctly.
Concrete Pumping for Narrow Construction Sites
The equipment sends concrete through delivery pipes, making it suitable for residential foundations, floors, walls, ground slabs, drainage channels, and road repair. Operators can arrange the pipes according to the required horizontal distance and vertical height. As a result, the pouring location does not need to remain directly beside the pump.
When the machine works as a concrete line pump, consider the pipe diameter, number of bends, and actual pumping distance. For narrow site entrances, check the equipment dimensions, weight, and loading conditions before transportation.
Output, Pressure and Pumping Distance
Output indicates how much concrete the pump can deliver per hour. Meanwhile, pressure determines how effectively the pump handles the required delivery distance and height. Therefore, high-level or long-distance projects need careful checks of pressure, vertical distance, and horizontal distance.
Small YG models weigh 600–900 kg, while larger models weigh 1,600–3,500 kg. Their dimensions range from 2100×890×1330 mm to 4300×1600×1800 mm. These specifications also affect transportation and site access.
Residential and Infrastructure Concrete Pumping
The equipment supports residential foundations, walls, floors, ground slabs, road repair, and drainage channels. For each project, check the concrete volume, pouring location, pumping distance, available power supply, and transport conditions.
For example, a restricted residential site may require a smaller model and flexible pipe arrangement. Larger projects may require higher output and longer pumping distances.
Electric and Diesel Power Options

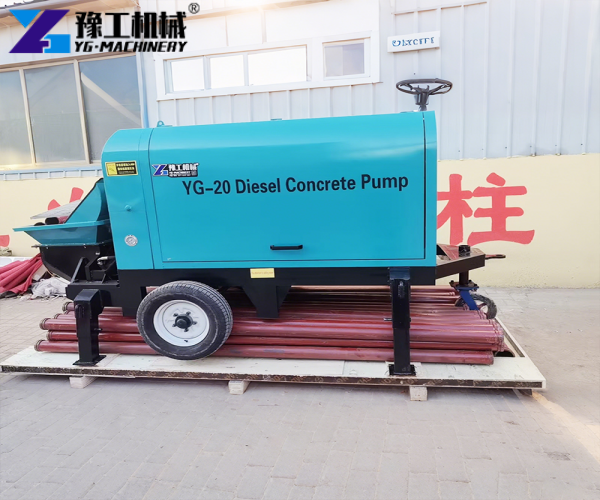

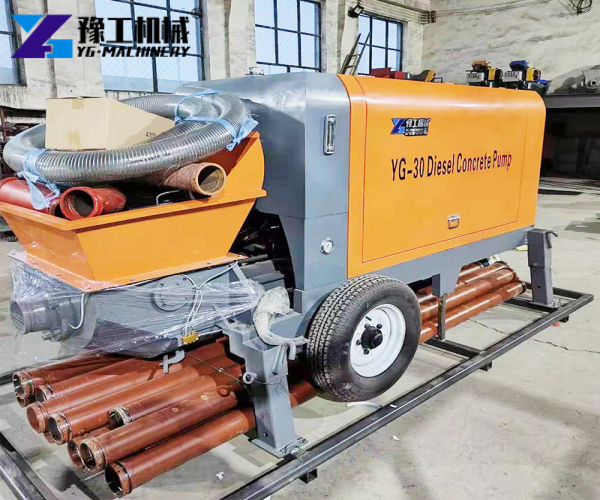

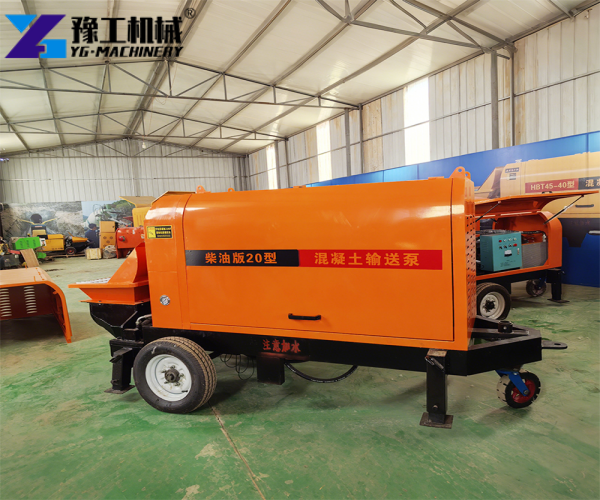

YG provides both electric and diesel-powered models. The 15 kW/25 hp model uses an electric motor. Other configurations use Diesel 4102, Diesel 4105, Diesel 4108, Diesel 6102, or 90 kW power.
Therefore, select the power configuration according to the available electricity and fuel conditions. Before ordering, confirm the voltage, power supply, or fuel requirements at the construction site.
Mini Concrete Pump vs Other Pump Types
A concrete pump trailer uses a trailer-mounted configuration, so towing requirements and available site space affect its use. In comparison, a mini concrete pump mainly delivers concrete through pipes and can serve projects where pipe-based delivery fits the site layout.

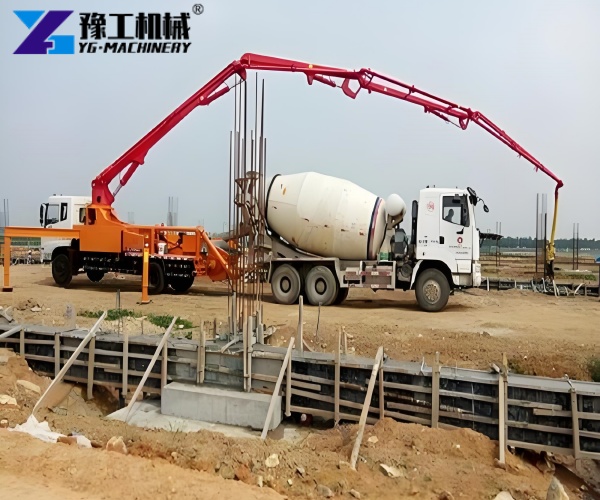

A boom concrete pump uses a boom to position the delivery line over the work area. This configuration suits projects that require boom coverage. By contrast, the mini concrete pump uses delivery pipes and fits applications with restricted access or specific pipe routes.
What to Check Before Buying
Before selecting a model, check the following points:
- Required output
- Vertical and horizontal pumping distance
- Maximum aggregate size
- Delivery pipe diameter
- Electric motor or diesel power
- Equipment weight and transport conditions

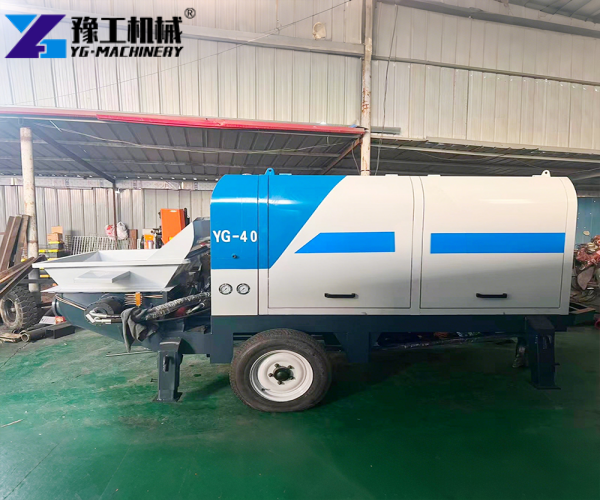

When comparing concrete pumps for sale, review the equipment configuration, wearing parts, and after-sales support. For used concrete pumps, check the pumping system, power system, hydraulic components, and maintenance records. These details help buyers assess whether the machine matches the planned working conditions.
Get a Pump Configuration for Your Project
YG can recommend a model according to the concrete volume, aggregate size, pumping distance, power supply, and transport requirements. Provide the project conditions first, and the required output, pressure, pipe diameter, and equipment model can then be determined.
Mini Concrete Pump FAQ
1. What is a mini concrete pump used for?
It delivers concrete for residential construction, foundation work, road repair, and restricted work areas.
2. What is the pumping output?
YG models provide an output range of 8–60 m³/h.
3. How far can it pump concrete?
The models provide 20–150 m vertical pumping distance and 50–500 m horizontal pumping distance.
4. What aggregate size can it handle?
The maximum aggregate size ranges from 0–2 cm to 0–5 cm, depending on the model.
5. What pipe diameter does it use?
The available models use delivery pipes with diameters from 80–125 mm.
6. Is electric or diesel power available?
YG provides both electric and diesel-powered configurations.
7. Can it pump concrete to high locations?
Yes. Some models provide a maximum vertical pumping distance of 150 m.
8. Can it work on narrow sites?
Yes. Delivery pipes can move concrete to locations that the equipment cannot reach directly.
