A paper cup producer in Surabaya, Indonesia needed to produce 8 oz and 12 oz paper cups from 250 g single PE-coated paper. The target output was 80 pcs/min, and the factory power supply was 220 V.
After checking the cup sizes, paper specification, production speed, and electrical requirement, the customer selected the YG-S800 paper cup machine with two mold sets. One mold set produces 8 oz cups, while the other produces 12 oz cups.
Technical Parameters of the YG-S800 Paper Cup Machine
The YG-S800 covers 3–16 oz paper cups and supports 160–300 g ±20 g paper. It provides 75–85 pcs/min and supports 220 V or 380 V, 50 Hz configurations. Therefore, the model covers the main requirements of the Surabaya project.
| Parameter | YG-S800 Specification |
| Cup Size Range | 3 – 16 oz |
| Paper Weight | 160 – 300 g ±20 g |
| PE Coating | Single or double PE coated |
| Production Speed | 75 – 85 pcs/min |
| Voltage | 220 V or 380 V |
| Frequency | 50 Hz |
| Customer Cup Sizes | 8 oz and 12 oz |
| Mold Quantity | 2 sets |
The customer’s 250 g paper falls within the specified range, and 80 pcs/min falls within the rated speed range. However, voltage alone does not determine electrical compatibility. Before installation, the buyer should confirm rated power, working current, phase configuration, circuit capacity, cable specification, and protection devices.
Two Mold Sets for Different Cup Sizes
The order included two paper cup machines because the customer needed both 8 oz and 12 oz cups. When changing sizes, the operator changes the corresponding mold. Buyers with frequent size changes should confirm the expected mold changeover procedure and time before ordering.

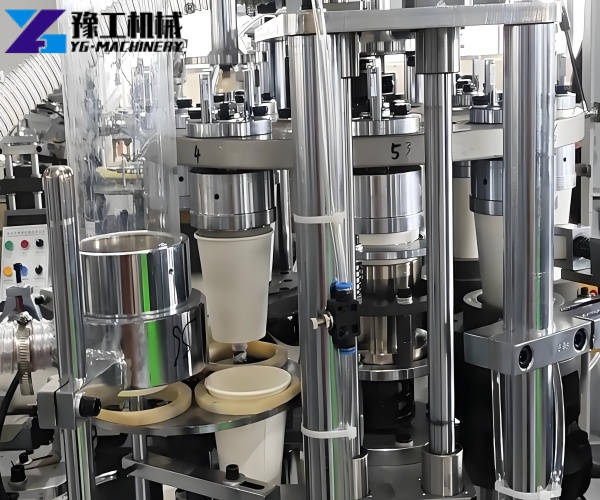

The main forming process includes:
- Paper feeding
- Cup wall forming
- Side sealing
- Bottom forming
- Bottom knurling
- Finished cup discharge
The machine uses an ultrasonic system for side sealing and a hot air system for bottom knurling. As a result, the paper specification and PE coating should match the forming and sealing requirements.
Paper and Electrical Requirements
The YG-S800 supports 250 g single PE-coated paper within its stated paper range. However, paper weight is not the only production factor. Paper stiffness, PE coating, moisture, paper quality, and cup dimensions can also affect forming and sealing.
For the electrical system, the 220 V option matches the factory voltage stated in this project. Even so, the factory should check voltage, frequency, phase, current, power capacity, and protection requirements before installation. The supplier should provide the final electrical data for the confirmed configuration.
Comparing YG-800 YG-C800 and YG-S800
YG offers several configurations for 3–16 oz cups. Their main differences include speed, paper range, and electrical configuration.
| Model | Speed | Paper | Electrical |
| YG-800 | 65 – 75 pcs/min | 150 – 180 g ± 20 g | 380 V 50 Hz |
| YG-C800 | 70 – 80 pcs/min | 150 – 300 g ± 20 g | 380 V 50 Hz |
| YG-S800 | 75 – 85 pcs/min | 160 – 300 g ± 20 g | 220 V or 380 V 50 Hz |
For the Surabaya order, YG-S800 covers the customer’s 250 g paper, 80 pcs/min target, and 220 V requirement. Therefore, buyers should compare these factors together rather than select a machine based only on rated speed.
Paper Cup Machine Price and Shipping
The price depends on the machine model, production configuration, mold quantity, electrical requirements, spare parts, packing, and shipping. For buyers searching for harga mesin gelas kertas, the complete quotation is more useful than the basic machine price alone.
The quotation should clearly state the machine, mold sets, electrical configuration, spare parts, packing, installation or training, warranty, and shipping charges. For the Surabaya project, the order includes the YG-S800, two mold sets, 220 V configuration, and shipment to Indonesia.
What Buyers Should Provide
When looking for a mesin pembuat gelas kertas, buyers should provide the cup size, cup dimensions, paper weight, PE coating type, target speed, factory voltage and frequency, phase configuration, mold quantity, and shipping destination.
With these details, YG Machinery can confirm the machine and mold configuration before preparing a quotation.
FAQ
Can one YG-S800 produce both 8 oz and 12 oz cups?
Yes. The machine can produce different sizes by using the corresponding molds. This order used two mold sets for the two required sizes.
Is 250 g single PE-coated paper suitable?
Yes. The paper falls within the stated 160–300 g ±20 g range. However, buyers should also confirm paper stiffness, coating, moisture, and other material characteristics.
Is 220 V enough for installation?
The YG-S800 supports a 220 V configuration, but the factory must also confirm current, phase, power capacity, circuit protection, and other electrical requirements before installation.
What affects the final machine price?
The model, production speed, mold quantity, electrical configuration, spare parts, packing, and shipping can all affect the final quotation.
