Concrete Pumping Machine Price depends on output, aggregate size, conveying distance, pipe diameter, and machine configuration. YG Machinery supplies brand-new YG-10 to YG-50 concrete pump machines for different pumping requirements. Buyers can compare the specifications below before checking the model, commercial terms, shipping costs, and final quotation.
Concrete Pumping Machine Technical Parameters
| Model | Work Efficiency | Aggregate Size | Vertical Conveying Distance | Horizontal Conveying Distance | Delivery Pipe Diameter | Dimensions | Recommended For |
| YG-10 | 8-10 m³/h | 0-3 cm | 20-30 m | 50-80 m | 80-100 mm | 2100×890×1330 mm | Lower-output pumping |
| YG-20 | 8-12 m³/h | 0-2 cm | 40-50 m | 80-100 m | 80-100 mm | 3200×1480×1600 mm | Compact pumping |
| YG-30 | 13-15 m³/h | 0-3 cm | 20-60 m | 50-150 m | 80-125 mm | 3800×1600×1800 mm | Medium-output work |
| YG-40 | 20-25 m³/h | 0-4 cm | 30-130 m | 50-350 m | 80-125 mm | 3880×1650×1680 mm | Higher-output pumping |
| YG-50 | 30-35 m³/h | 0-4 cm | 30-150 m | 50-500 m | 80-125 mm | 4300×1600×1800 mm | High-output, long-distance work |
Concrete Pump Machine Price List: YG-10 to YG-50
A concrete pump machine price list needs a clear commercial basis. For international orders, YG Machinery can quote brand-new machines under EXW, FOB, or CIF terms according to the destination and shipping arrangement.
| Model | Price Reference | Main Difference |
| YG-10 | EXW / FOB / CIF | Lower output |
| YG-20 | EXW / FOB / CIF | Compact configuration |
| YG-30 | EXW / FOB / CIF | Medium output |
| YG-40 | EXW / FOB / CIF | Higher output and longer reach |
| YG-50 | EXW / FOB / CIF | Highest output in the range |
The concrete pump price does not follow one fixed figure for every order. Instead, the configuration, accessories, shipping terms, and destination all affect the quotation.
For example, buyers comparing YG-10 price and YG-50 price should check machine specifications alongside the commercial quotation. Freight, customs, and local charges can also increase the final delivered cost.

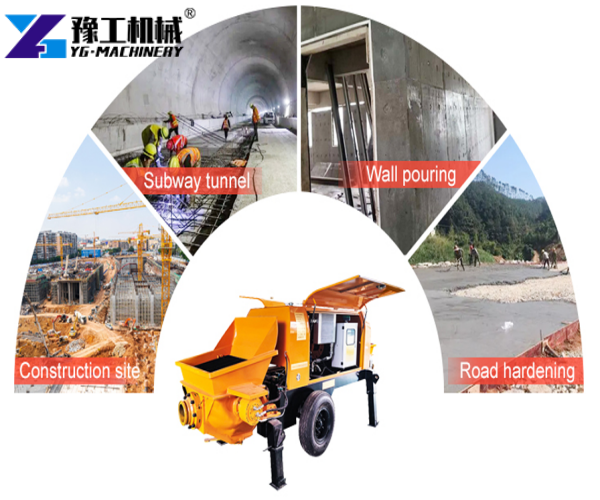

Mini Concrete Pump Applications
A mini concrete pump works well where limited space restricts equipment placement or where the required concrete volume remains moderate. Compact dimensions also make transport and positioning easier.
Typical requirements include:
- Restricted equipment access
- Smaller concrete volumes
- Shorter delivery routes
- Limited working space
- Frequent equipment movement
However, a small concrete pump for sale still needs to match the concrete mix and delivery conditions. Machine size alone does not determine whether a model can handle the required job.
How to Choose a Concrete Pumping Machine for Your Budget
A practical concrete pumping machine selection starts with the actual work requirement rather than the lowest advertised price. The following points help narrow down the suitable model:
- Output: determine the required concrete volume per hour.
- Distance: measure the maximum horizontal and vertical conveying distance.
- Aggregate: confirm the maximum aggregate size in the concrete mix.
- Pipe: select a suitable delivery pipe diameter.
- Space: check access, positioning, loading, and transport conditions.
- Power and destination: provide local power requirements and the destination country.
For instance, YG-10 and YG-20 cover lower output requirements, while YG-40 and YG-50 suit higher output and longer conveying routes. This approach helps control the concrete pump budget without paying for capacity that the job does not require.
Concrete Pump Price Quote: Shipping, Tax, and Delivery
A concrete pump price quote show both the machine cost and the agreed commercial terms. Meanwhile, EXW, FOB, and CIF assign different responsibilities to the supplier and buyer, so the quotation needs to state the selected term clearly.
The total purchase budget may include:
- Machine price
- Ocean or inland freight
- Cargo insurance
- Customs duties and import tax
- Port and customs clearance
- Installation and commissioning
- Operator training
- Spare parts and accessories
YG Machinery tests each brand-new machine before shipment. For a detailed concrete pump quotation, provide the required model or output, conveying distance, aggregate size, destination port, and preferred trade term. With these details, the supplier can prepare a quotation that matches the actual project requirements.
FAQ
How much does a concrete pump cost?
The cost varies by model, configuration, commercial term, and destination. Therefore, a specific quotation requires the machine requirements and delivery details.
Why do concrete pump prices differ between models?
Different models provide different output, conveying capacity, dimensions, and configurations. In addition, accessories, shipping terms, and destination costs can change the final quotation.
How long does delivery take?
The schedule depends on the selected configuration, production status, order quantity, and shipping arrangement. Once these details are confirmed, YG Machinery can provide the expected schedule with the quotation.
What warranty and spare parts can I get?
Warranty coverage and spare-parts arrangements follow the sales agreement. Before placing an order, buyers can request these details together with the quotation.
How can I get a concrete pump for sale quotation?
Send the required output, conveying distance, aggregate size, destination port, and preferred trade term. After reviewing these details, YG Machinery can prepare a model-specific quotation.
For a concrete pump purchase, send your technical requirements and destination to YG Machinery. We can match the model, prepare the commercial terms, and provide the Concrete Pumping Machine Price for your order.
