An Articulated Boom Lift for Sale from YG Machinery supports exterior maintenance at a commercial building in Lombardy, Italy. Marco Bianchi manages the local maintenance team. His crew handles exterior lighting, ventilation equipment, and other elevated building services. The rear side of the building has a narrow access route with a slope, while several work points sit away from the wall. The team needed a compact machine that could move around the site and reach different positions without relying on ladders or fixed access equipment.
Articulated Boom Lift for Sale Technical Parameters
The project uses a 12 m electric articulated boom lift with a 10 m maximum platform height and 5.8 m horizontal extension. Its 200 kg rated capacity suits one operator with tools for routine building maintenance.
| No. | Item | Parameter |
| 1 | Maximum Working Height | 12m |
| 2 | Maximum Platform Height | 10m |
| 3 | Maximum Horizontal Extension | 5.8m |
| 4 | Maximum Span Height | 4.78m |
| 5 | Maximum Carrying Capacity | 200kg |
| 6 | Gradeability | 25% |
| 7 | Minimum Turning Radius | 2.16m |
| 8 | Running Speed – Decline | 3km/h |
| 9 | Running Speed – Rising | 0.8km/h |
| 10 | Closing Length | 4.35m |
| 11 | Car Closing Width | 1.5m |
| 12 | Closing Height | 1.99m |
| 13 | Platform Size (Length × Width × Height) | 1.1m×0.65×1.13m |
| 14 | Turntable Rotation | 355° |
| 15 | Platform Rotation | 120° |
| 16 | Ground Clearance | 0.15m |
| 17 | Drive Wheel Size | 0.590.19/0.660.17m |
| 18 | Gross Weight | 4700kg |
| 19 | Control Voltage | 24V |
| 20 | Battery | 48V/320Ah |
| 21 | Charger | 48V/40A |
| 22 | Hydraulic Tank Volume | 40 L |
| 23 | Wheelbase | 1.65m |

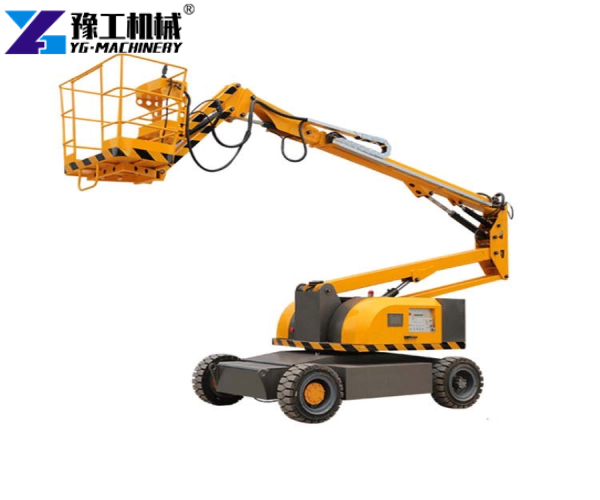

Electric Articulated Boom Lift in Lombardy
The electric articulated boom lift suits maintenance work around a commercial property because the machine can travel between work points under its own power. Marco’s team uses it around exterior lights, ventilation equipment, and other elevated components that do not sit along one straight line.
The articulated boom also changes the working position without requiring the machine to sit directly below every point. Marco said, “We can reach different sections of the building without moving the machine every time.” The 355° turntable rotation and 120° platform rotation give the operator more positioning options around the building.
Self Propelled Articulated Boom Lift for Narrow Access
Access conditions played a major role in the equipment choice. The rear route measures only 1.5 m at the narrowest usable section, so the machine’s 1.5 m closed width matters during entry. Its 2.16 m minimum turning radius also helps when the route requires changes in direction.
The site includes a slope rather than a level surface. With 25% gradeability, the self propelled articulated boom lift can handle the planned route within its rated operating conditions. The 0.15 m ground clearance adds clearance during travel.

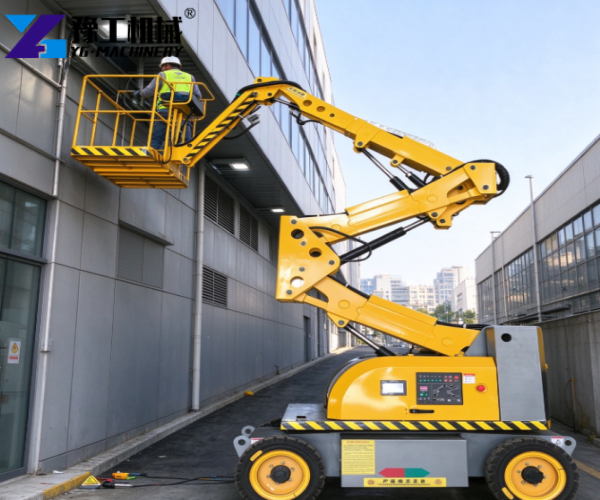

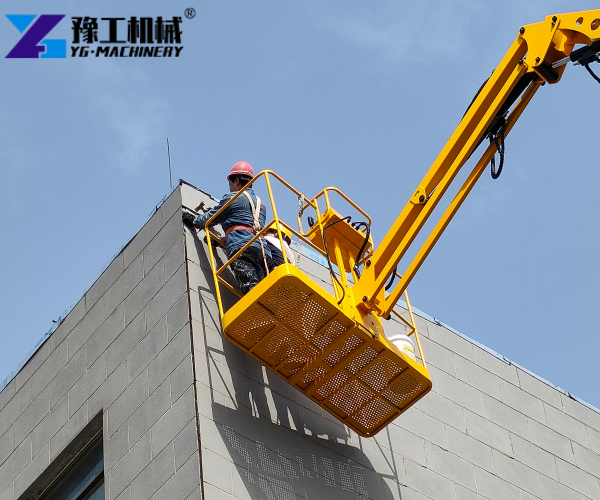

12m Articulated Boom Lift for Building Maintenance
The 12m articulated boom lift gives the maintenance crew enough working height for the building’s elevated service points. Its maximum platform height reaches 10 m, while the maximum working height reaches 12 m. The 5.8 m horizontal extension helps the crew work away from the machine’s base.
During maintenance, the operator can position the machine at a practical stopping point and adjust the boom to reach nearby work areas. The platform’s 120° rotation adds positioning flexibility. Marco commented, “The platform movement makes maintenance work easier, especially when several points are close together.”
The 200 kg platform capacity covers the operator and tools for routine inspection and repair.

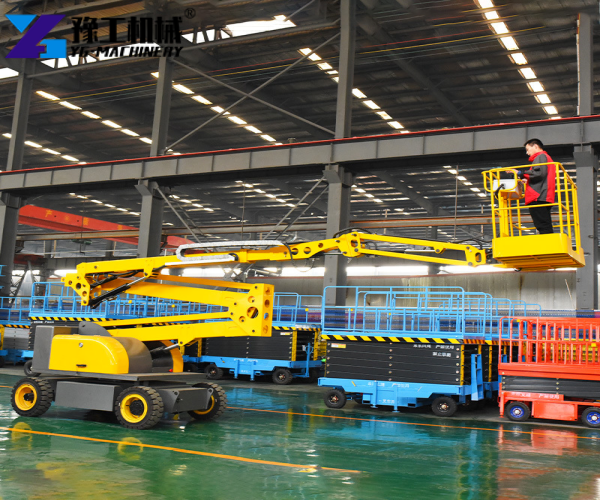

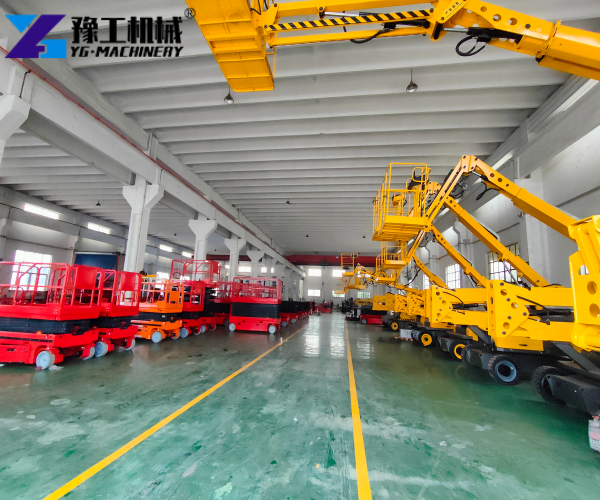

Articulated Boom Lift Manufacturer and Factory Support
At the factory, YG Machinery works under an ISO 9001 quality management system. The company can provide CE conformity documentation and relevant technical documents for the supplied machine. SGS-related inspection or documentation can also be arranged where applicable to the order.
Electric Boom Lift in Italy: Purchase and Compliance Details
Italian buyers should check the actual access route before ordering an electric boom lift in Italy. Useful measurements include entrance width, turning space, slope, working height, horizontal reach, and the distance between regular work points.
Electrical planning matters as well. This machine uses a 48 V / 320 Ah battery and a 48 V / 40 A charger, so the buyer should prepare the charging location and confirm the site’s electrical arrangement before delivery. Transport access, unloading equipment, storage space, and daily charging arrangements should form part of the purchase plan.
For use in Italy, the buyer should also check the machinery and workplace-safety requirements that apply to the specific worksite and operating conditions. YG Machinery can provide the relevant technical and conformity documentation for the supplied equipment, while the employer or responsible site professional should verify the requirements that apply to the actual application.

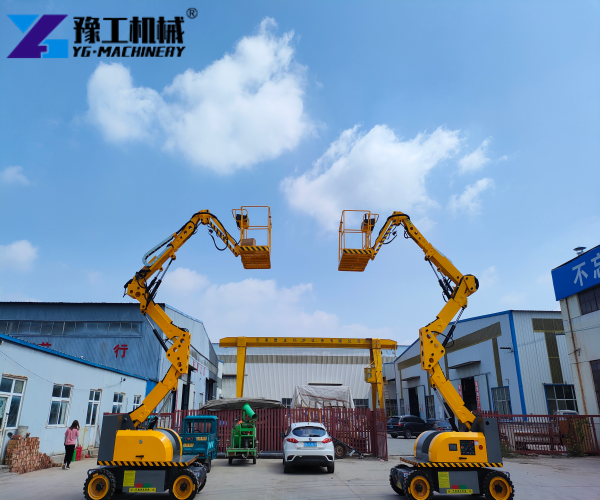

Articulated Boom Lift for Construction and Maintenance
This Lombardy project shows how an articulated boom lift can support recurring building maintenance where access is narrow and work points sit at different positions. The combination of 12 m working height, 5.8 m horizontal extension, self-propelled travel, and electric power matches the site’s main operating needs.
YG Machinery completes the machine production and pre-shipment checks before arranging export to Italy. For buyers comparing an articulated boom lift for sale, the key points include working height, outreach, machine width, turning radius, gradeability, platform capacity, battery system, transport weight, and the documents required for the intended site.
