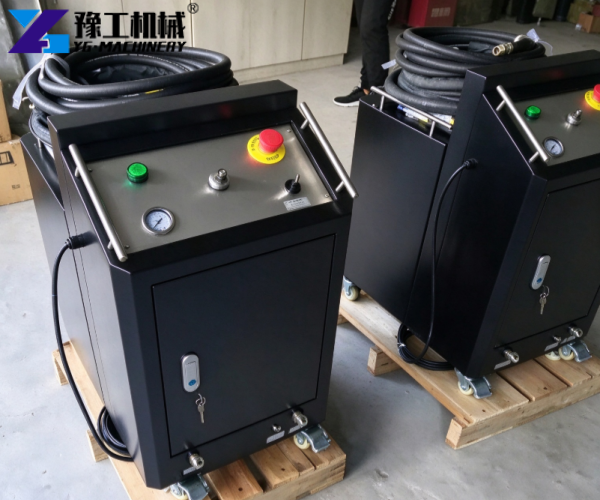

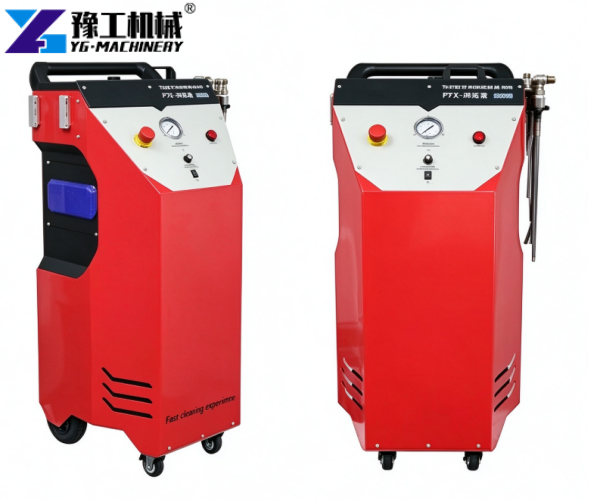

A portable dry Ice cleaning machine uses compressed air to propel dry ice granules onto contaminated surfaces. This dry ice blasting machine removes grease, ink, adhesive residue, carbon deposits, and other industrial dirt. Its compact design suits equipment maintenance, mold cleaning, and production line cleaning.
Traditional cleaning methods often require extra work. Abrasive blasting may scratch surfaces, chemical cleaning involves cleaning agents and residue management, and water jetting produces wastewater and requires drying. Dry ice turns directly from a solid into gas during cleaning. This process leaves no liquid residue from the dry ice itself and reduces the need for additional cleaning media.
Portable Dry Ice Cleaning Machine Parameters
| Item | YGP7X | YGP6 |
| Model | YGP7X | YGP6 |
| Motor power | ＜500W | ＜500W |
| Voltage | AC220V, 50-60HZ | AC220V/50-60HZ |
| Air consumption | 28-106 CFM (0.8-3.0m³/min) adjustable | 28-106 CFM (0.8-3.0m³/min) adjustable |
| Air supply pressure | 0.1-0.9Mpa (1-9bar adjustable) | 0.1-0.9Mpa (1-9bar adjustable) |
| Ice delivery speed | 0-0.75kg/min(adjustable) | 0-1.65 lbs/min (0-0.75kg/min) adjustable |
| Hopper capacity | 10.5kg (23.5 lbs) | 23.5 lbs(10.5kg) |
| Degree of protection | IP54 | IP54 |
| Machine weight | 121 lbs(55kg) | 110 lbs(50kg) |
| Dry ice state | 2.5-3mm (granular) | 2.5-3mm(granular) |
| Drive mode | Direct connection | Direct connection |
| Machine size | (L)510*(W)460*(H)960mm | (L)600x(W)400x(H)860mm |
Advantages of a Portable Dry Ice Cleaning Machine
1. Fewer Rejects and Less Rework
Ink buildup, mold residue, and production deposits can affect product quality. Regular cleaning keeps machine surfaces free from accumulated contaminants and reduces cleaning-related interruptions. In printing, molding, and packaging plants, consistent equipment cleaning can also reduce defects caused by surface contamination.
2. No Water and No Drying Required
The dry ice blasting machine uses solid carbon dioxide instead of water. The process creates no wastewater from the cleaning medium and eliminates water-based drying after treatment. Production teams can return compatible equipment to the next stage without waiting for moisture to evaporate.
3. Food-Grade Cleaning Medium
Food-grade CO₂ dry ice suits cleaning tasks in food processing and selected precision manufacturing operations. It removes certain deposits without introducing liquid cleaning agents. This feature makes it useful for equipment with complex surfaces and areas where moisture creates additional cleaning work.
4. Portable and Flexible Operation

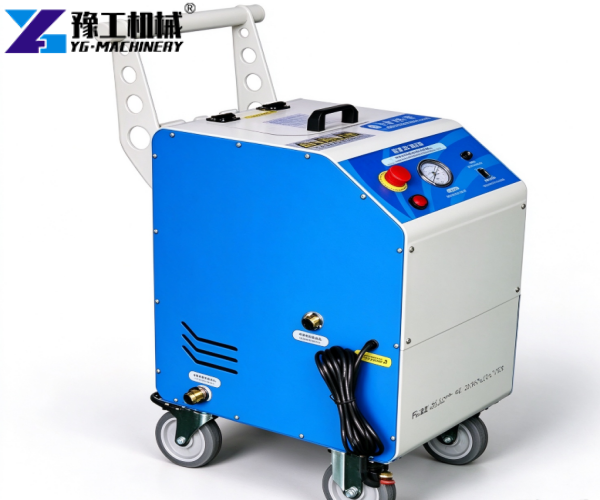

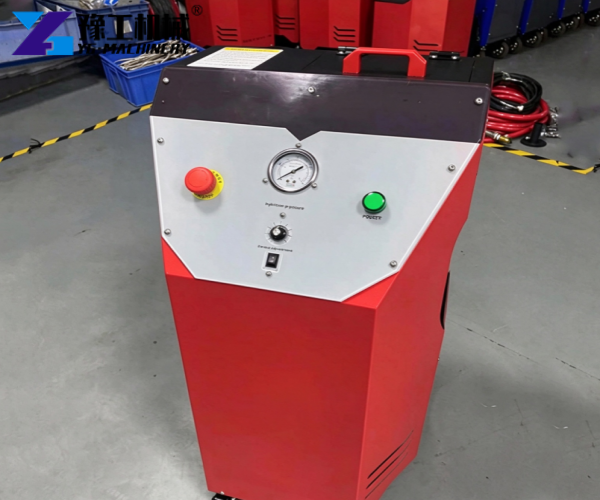

A portable dry ice blaster can move between workstations and serve multiple maintenance teams. The YGP7X weighs 55 kg, while the YGP6 weighs 50 kg. Their compact structures suit workshops, production areas, and equipment maintenance locations.
5. Easy Maintenance
The machine uses a direct-drive configuration and a straightforward operating structure. Routine cleaning and inspection of the air lines, connections, and spray components keep daily maintenance manageable. Regular servicing also helps maintain stable operation over time.
6. On-Site Dry Ice Production
A dry ice blasting system can include a dry ice pelletizer for on-site pellet production. This setup combines pellet preparation with cleaning operations in one workflow. It suits facilities that use dry ice regularly and want greater control over their pellet supply.
7. Reduced Chemical and Water Use
Dry ice cleaning reduces the need for chemical cleaners and water in suitable industrial tasks. The process also avoids large amounts of spent solid blasting media from the dry ice itself. These features make it a practical option for factories seeking to reduce conventional cleaning materials.
Industrial Uses of Dry Ice Cleaning Equipment
1. Printing and Packaging
Dry ice cleaning for printing machinery removes ink deposits, adhesive residue, and accumulated dust from printing presses, ink rollers, label machines, and packaging equipment. Regular cleaning keeps rollers and machine surfaces ready for subsequent production runs.
2. Petrochemical, Oil and Gas
Dry ice cleaning can remove selected oil deposits, grease, and process residue from valves, heat exchanger components, storage tanks, and refinery equipment. It also suits maintenance work on complex equipment surfaces where manual cleaning takes considerable time.
3. Power Generation and Utilities
Power plants use industrial cleaning equipment to maintain generators, turbine components, transformer exteriors, and switchgear enclosures. Dry ice cleaning can remove accumulated dirt and grease from suitable components without introducing wash water.
4. Marine and Railway Maintenance
Industrial dry ice cleaning equipment serves maintenance tasks involving marine engines, railway vehicles, bogies, and selected brake components. It removes grease, oil, and other deposits from equipment surfaces and supports cleaning work during overhaul and repair.
5. Pharmaceutical and Cleanroom Facilities
Dry ice cleaning suits selected production equipment, including compatible mixers, tablet presses, and machinery surfaces. Its dry cleaning process reduces moisture introduction during equipment maintenance and can form part of a controlled cleaning procedure.
6. Building and Facility Maintenance
Dry ice blasting can remove selected dirt, coatings, and graffiti from suitable walls and facility surfaces. Other uses include cleaning HVAC components, elevator parts, and workshop equipment. The method also suits maintenance tasks where conventional washing creates extra cleanup work.
7. Equipment Overhaul and Repair
Before equipment refurbishment, dry ice cleaning for industrial equipment removes grease, oil, and accumulated production residue from accessible surfaces. Cleaner components make visual inspections easier and give maintenance teams a clearer view of surface condition.
How to Choose a Portable Dry Ice Blasting Machine
Air supply: Both YGP7X and YGP6 require 0.8–3.0 m³/min of compressed air, with an adjustable pressure range of 0.1–0.9 MPa.
Cleaning task: Match the machine to the type of equipment, the contaminant, and the required cleaning result.
Dry ice supply: Both models use 2.5–3 mm granules and feature a 10.5 kg hopper.
Factory-Direct Price: YG Dry Ice Cleaning Machine
The dry ice cleaning machine price varies with the selected model, accessories, and delivery arrangements. Operating expenses mainly include dry ice consumption, compressed air, and routine maintenance.
YG provides factory-direct quotations for customers seeking a dry ice cleaning machine for sale. Share your cleaning application, destination country, power supply, and accessory requirements with our team. We can then recommend a suitable configuration and provide pricing and shipping details.
For industrial projects requiring a portable dry ice cleaning machine, contact YG to discuss your equipment requirements and obtain a project-specific quotation.
Frequently Asked Questions
What dry ice granules do YGP7X and YGP6 use?
Both models use granular dry ice with a diameter of 2.5–3 mm.
What is the maximum dry ice feed rate?
Both machines provide an adjustable feed rate of up to 0.75 kg/min.
What power supply do these machines require?
Both models use AC 220 V power at 50–60 Hz, with motor power below 500 W.
Can a dry ice cleaning machine work with a pelletizer?
Yes. A compatible dry ice pelletizer can supply granules for cleaning operations. An integrated setup combines dry ice production and surface cleaning at the same facility.
