A log splitter is a machine that splits large logs into smaller firewood pieces using hydraulic force. It replaces manual axe swinging and makes the job faster, safer, and easier. This equipment is used by homeowners, farmers, and forestry workers. Many people also call it a wood splitter.
Log Splitter Parameters (YG Two Models)
Below are real specifications from YG company product documents. Two models are available.
| Max Splitting Force | 15 tons | 20 tons |
| Cycle Time | 7 seconds | 8 seconds |
| Max Splitting Length | 610 mm | 610 mm |
| Max Splitting Diameter | 380 mm | 400 mm |
| Work Efficiency | 4 m³/h | 5 m³/h |
| Power | 15HP gasoline engine | 15HP gasoline engine |
| Engine Displacement | 420 cc | 420 cc |
| Fuel Tank Capacity | 6.5 L | 6.5 L |
| Engine Oil Capacity | 1.1 L | 1.1 L |
| Gross Torque | 25 N.m/2500 rpm | 25 N.m/2500 rpm |
| Firewood Conveyor | Length 3.2m, belt 250mm, chute 400mm, hydraulic rotator 1 set | Same |
| Chain Saw Length | 1.2 m | 1.2 m |
| Chain Saw Rotate Speed | 5600 rpm | 5600 rpm |
| Sawing Speed | Adjustable | Adjustable |
| Oil Pump | 22 GMP, 2 stage | 22 GMP, 2 stage |
| Oil Tank Capacity | 50 L | 50 L |
| Control Valve | One handle, 4 directional | One handle, 4 directional |
| Tyre | 12 inch | 12 inch |
| Knife | 4 ways (6 ways optional) | 4 ways (6 ways optional) |
| Weight | 480 kg | 510 kg |
| Main Machine Package Size | 2200*900*1100 mm | 2200*900*1100 mm |
| Conveyor Package Size | 2260*960*1170 mm | 2260*960*1170 mm |
Wood Splitter Advantages
- High splitting force: 15 to 20 tons of force splits hardwood and softwood easily.
- Fast cycle time: Only 7 to 8 seconds per log. You can process hundreds of logs per hour.
- Built in conveyor: The 3.2m firewood conveyor moves split wood away automatically. No manual stacking.
- Chain saw attachment: A 1.2m chain saw cuts long logs before splitting. Saw speed is adjustable.
- Large log capacity: Handles logs up to 610mm long and 400mm wide (20T model).
Many buyers look for a wood splitter with a conveyor and chain saw because it saves even more labor. For smooth operation, use Hydraulic Oil (internal link) in the hydraulic system.
Electric Log Splitter And Hydraulic Log Splitter Applications
- Home firewood preparation: Split logs for winter heating quickly.
- Farm wood processing: Turn trees into animal bedding or fence posts.
- Forestry operations: Process cut trees into sellable firewood.
- Commercial firewood production: Produce large volumes for sale.

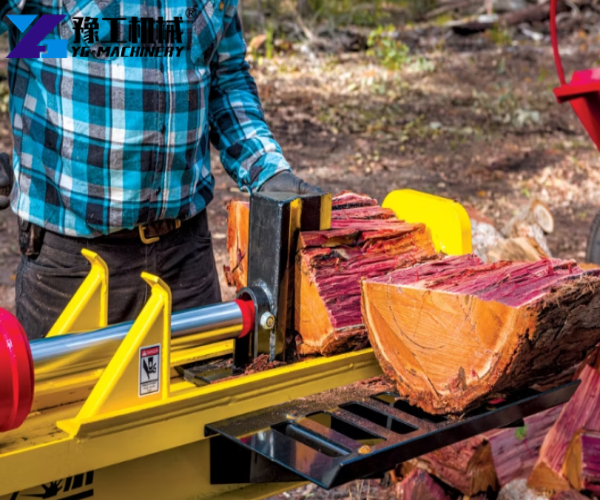

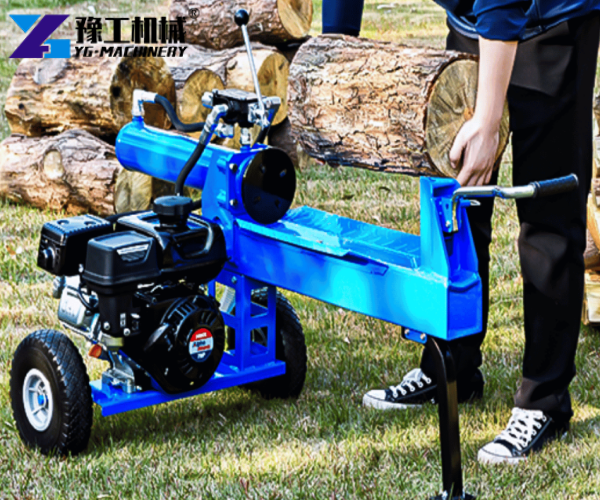

This model is a hydraulic log splitter powered by a gasoline engine. It is portable with 12 inch tyres. For a quieter indoor option, you can also consider an electric log splitter. But for heavy outdoor work, the hydraulic version is best. You can add a Log Splitter Stand to adjust working height.
Core Functions Of Hydraulic Log Splitter
- Hydraulic splitting: The 2 stage oil pump (22 GMP) pushes the cylinder with 15 or 20 tons of force.
- Automatic conveyor: The hydraulic rotator and belt move split wood to a pile or truck.
- Chain saw cutting: The 1.2m chain saw rotates at 5600 rpm to cut long logs into splitter friendly lengths.
- Adjustable knife: The 4 way knife splits logs into four pieces. A 6 way knife is optional for even smaller pieces.
- One handle control: The 4 directional valve lets you control forward, reverse, and stop with one hand.
As a hydraulic log splitter, it is built for heavy duty daily use. The 50L oil tank keeps the system cool during long hours.
Customer FAQs About Log Splitter
Q1: What is the biggest log this machine can split?
A: The 20T model splits logs up to 400mm in diameter and 610mm long. The 15T model splits up to 380mm diameter.
Q2: How fast does it work?
A: Cycle time is 7 to 8 seconds per log. Work efficiency is 4 to 5 cubic meters per hour.
Q3: Does it come with a conveyor?
A: Yes. Both models include a 3.2m long firewood conveyor with a hydraulic rotator.
Q4: Can I split logs into more than two pieces?
A: Yes. The standard knife is 4 way, so one stroke makes four pieces. A 6 way knife is optional.
Q5: What fuel does it use?
A: Gasoline. The engine is 15HP with 420cc displacement. Fuel tank holds 6.5 liters.
We also sell Replacement Knives (4 way and 6 way) and Conveyor Belts for this machine. Keep spares ready for continuous work.
Hydraulic Log Splitter In USA And Germany
A firewood business in Oregon bought the 20T hydraulic log splitter with conveyor. They needed to split 400mm oak logs into firewood for 2000 homes. The machine ran 8 hours daily for three months.
Customer feedback: “The conveyor alone saves us two workers. Splitting is smooth and fast.”
Another buyer in Bavaria used the 15T model for a farm. They also added a Log Lift to feed heavy logs onto the conveyor. The customer said, “The chain saw attachment is a game changer. We cut and split in one pass.”
Why Choose YG Log Splitter
YG company has produced log splitters for many years. We focus on real specifications, strong build quality, and easy operation. Our machines are tested before delivery. We offer spare parts and online support worldwide. YG stands out because we provide clear data without fake claims. Our 15T and 20T splitting forces are honest and verified. We also have fast shipping and competitive factory prices. Whether you need a 15T model for farm use or a 20T model for commercial production, we have the right log splitter for you. Contact us today to get a quote and free splitting advice.
