An electric mini loader uses battery power to load, carry, and discharge loose materials. Its front bucket handles soil, gravel, sand, and construction debris. A compact chassis suits sites with limited access, while battery drive avoids diesel exhaust during operation. Landscaping crews, builders, and farm workers use these machines for short-distance material transport.
Electric Mini Loader Parameters
| Parameter Item | Model YG-500E | Model YG-800E | Model YG-1200E | Model YG-1500E |
| Rated Load Capacity | 500 kg | 800 kg | 1200 kg | 1500 kg |
| Bucket Capacity | 0.2 m³ | 0.4 m³ | 0.6 m³ | 0.8 m³ |
| Drive Motor Power | 4.0 kW | 6.5 kW | 10.0 kW | 15.0 kW |
| Battery Voltage & Type | 48V Lead-Acid / LiFePO4 | 60V / 72V Lithium | 72V High-Cap Lithium | 80V High-Cap Lithium |
| Working Hours per Charge | 6 – 8 Hours | 6 – 8 Hours | 7 – 9 Hours | 8 Hours |
| Charging Time | 3 – 5 Hours | 2 – 4 Hours (Fast Charge) | 2 – 3 Hours | 2 – 3 Hours |
| Max Dump Height | 2100 mm | 2450 mm | 2750 mm | 3000 mm |
| Travel Speed | 0 – 12 km/h | 0 – 16 km/h | 0 – 18 km/h | 0 – 20 km/h |
| Operating Weight | 1100 kg | 1850 kg | 2700 kg | 3400 kg |
| Overall Dimensions (mm) | 2800×1100×2100 | 3450×1250×2300 | 4100×1500×2450 | 4500×1650×2550 |
Working Principle of a Mini Electric Loader
A mini electric loader uses a battery-powered drive motor to move the machine. Its loading mechanism raises and lowers the front bucket.
Travel: The drive system moves the loader between the material pile and the unloading point.
Collection: The operator lowers the bucket and drives into loose material.
Transport: The loading mechanism raises the filled bucket for movement.
Discharge: The operator tips the bucket to release material at the required location.
The loader repeats this cycle to move material around a work site. The bucket size and rated load determine how much material each cycle can carry.
Electric Drive and Product Features
A compact electric loader runs on battery power rather than a diesel engine. It avoids diesel exhaust during loading and transport, making it useful for work near buildings and in designated indoor areas.
The four models have different dimensions and operating weights. The YG-500E measures 2800 × 1100 × 2100 mm and weighs 1100 kg. The larger YG-1500E measures 4500 × 1650 × 2550 mm and weighs 3400 kg. Check access width, turning space, and floor or ground capacity before choosing a model.
Battery power removes routine diesel-engine servicing, such as engine oil and exhaust-system maintenance. Operators still need to inspect the battery, electrical connections, tires, bucket, and loading mechanism.
The listed working time ranges from 6 to 9 hours per charge. Heavy loads, frequent lifting, and long travel distances increase energy use. Plan charging around the work schedule.
Bucket Loading and Material Handling
Bucket capacity measures volume; rated load capacity sets the specified weight limit. These values are not interchangeable. A bucket filled with dense gravel can reach the load limit before it reaches full volume.
Material density also changes with moisture. Wet soil can weigh more than dry soil in the same bucket. Operators need to account for material weight when loading.
Dump height matters when unloading into a truck, bin, or raised storage point. The YG models list maximum dump heights from 2100 mm to 3000 mm. Check the receiving point’s height and the machine’s rated load before unloading.
Choose YG Electric Mini Loader for Your Project
YG electric mini loaders combine battery-powered travel with front-bucket loading. Their compact dimensions support work in restricted areas, and the model range covers rated loads from 500 kg to 1500 kg. Select by material weight, access space, bucket volume, and required dump height.
- Construction sites: Move soil, sand, gravel, and debris around buildings. The higher-capacity models handle heavier loads, while the smaller units fit tighter work areas.
- Landscaping and garden work: Carry topsoil, mulch, stones, and green waste. A bucket reduces repeated wheelbarrow trips, and the narrower models suit restricted entrances.

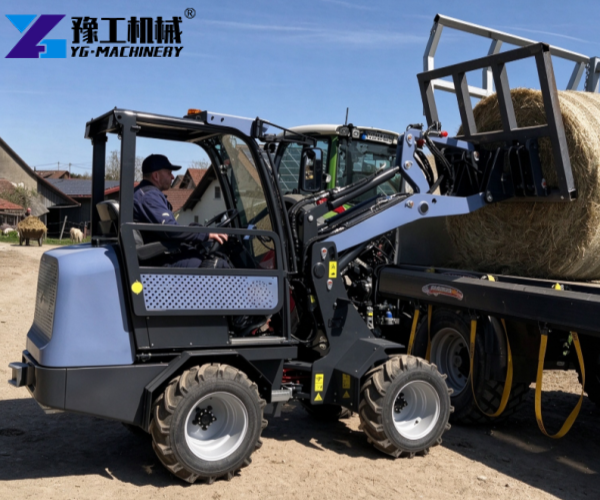

- Farms and agricultural buildings: Transport feed, compost, and other bulk materials over short distances. Battery drive avoids diesel exhaust during indoor material handling.
- Warehouses and property maintenance: Move loose materials and collect waste. Check floor capacity, turning space, and charging arrangements before indoor use.
- Road and site maintenance: Shift soil and gravel during cleanup and surface preparation. Match the rated load and dump height to the materials and unloading point.
Some small skid loaders perform similar material-handling tasks, but steering systems, dimensions, and attachment interfaces vary by model. To select equipment for your site, compare these specifications with your material-handling needs, then contact YG Machinery for electric mini loader model details, pricing, and delivery information.
Germany Case: YG-800E for Garden Renovation
A landscaping crew in Hamburg used the YG-800E during a residential garden renovation. The entrance restricted access for larger equipment, and the crew needed to move excavated soil and fresh gravel between work areas.
The YG-800E’s 1250 mm width fit the access route. Its 0.4 m³ bucket carried material across the garden and reduced repeated wheelbarrow trips. The crew checked turning space and ground conditions before starting.
Customer feedback:
“The YG-800E made soil and gravel transport easier in the garden. We moved materials with the bucket and reduced repeated wheelbarrow trips. Its compact size worked well for our access route.”
FAQ
Which YG model has the highest rated load?
YG-1500E has the highest listed rated load at 1500 kg. It also has the largest bucket in this range, at 0.8 m³. Check material density as well as bucket volume when planning each load.
Which model has the greatest dump height?
The YG-1500E lists a maximum dump height of 3000 mm. The YG-1200E lists 2750 mm, the YG-800E 2450 mm, and the YG-500E 2100 mm. Compare these figures with the height of your receiving truck or bin.
What battery options does the YG-500E have?
The listed YG-500E battery options are 48V lead-acid and LiFePO4. The other models use lithium battery configurations, with voltage specifications shown in the parameter table. Confirm the exact battery configuration for the selected unit.
Can I choose a model by bucket volume alone?
No. Bucket volume indicates how much space the bucket holds, not the weight of its contents. Compare rated load, material density, dump height, and site access before selecting a model.
