Working on a construction site means moving different materials to different heights. Bricks need to go up. Pallets need to move across. Heavy equipment needs placement. Using separate machines for each job costs time and money. A telehandler forklift for sale solves these problems. It reaches forward and upward. It lifts pallets, grabs loose materials, and hooks heavy loads. One machine does the work of a forklift, a crane, and a loader. Our telehandler forklift helps you finish more jobs with fewer machines.
YG Machinery offers reliable telehandler forklifts for construction, warehouse, and rental applications.
Technical Parameters of Telehandler Forklift
| Model | YG-TS1035 | YG-TS1440 | YG-TS1850 |
| Rated load | 3500kg | 4000kg | 5000kg |
| Maximum lift height | 10000mm | 13500mm | 17550mm |
| Maximum reach | 5000mm | 8500mm | 13080mm |
| Maximum traction force | ≥70kN | ≥70kN | ≥70kN |
| Minimum ground clearance | 420mm | 420mm | 420mm |
| Overall dimensions | 5700x2230x2400mm | 7000x2350x2550mm | 7500x2430x2550mm |
| Wheelbase | 3670mm | 3670mm | 3670mm |
| Engine type | CUMMINS/Yuchai | Yuchai | Yunnei |
All models feature 4WD, telescopic boom, and multi-attachment compatibility.
Main Structure of Telescopic Forklift
A telehandler forklift has several main parts:
Chassis – Heavy-duty frame with 4WD. Provides stability for lifting and moving.
Power system – Diesel engine from CUMMINS, Yuchai, or Yunnei. Strong power for heavy loads.
Telescopic boom – Extends forward and upward. Reaches where standard forklifts cannot.
Hydraulic system – Powers the boom extension, lifting, and attachment movement.
Cab – Enclosed cab with pilot controls. Comfortable for long work shifts.
Attachments – Quick-change system. Swap forks, buckets, hooks in minutes.
Counterweight – Rear weight for balance when lifting heavy loads.
Working Principle of Boom Forklift
The diesel engine powers the hydraulic pump. The pump sends oil to the hydraulic cylinders. The telescopic cylinder extends the boom forward. The lift cylinder raises the boom. The attachments connect to the boom end. The operator controls everything from the cab. The leveling cylinder keeps the forks horizontal during lifting. This design lets you lift loads high and reach over obstacles.
Core Advantages of Telehandler
Strong Lifting Capacity
Up to 5000kg load. Up to 17.5m lift height. Handles most construction materials.
Replace Multiple Machines
Does the work of a forklift, crane, and loader. Less equipment to buy and maintain.

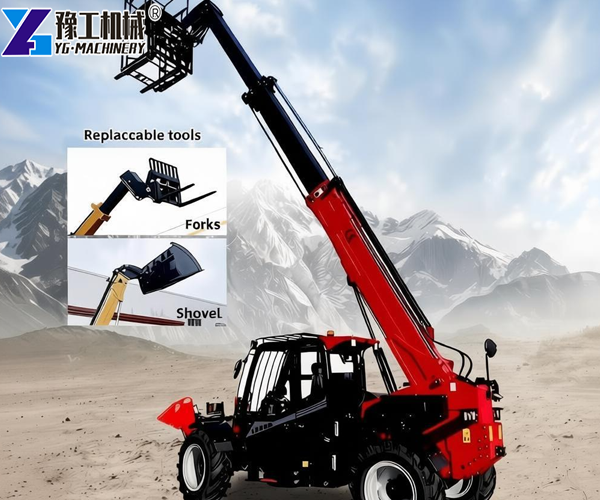

Quick Attachment Change
Swap forks for bucket or hook in minutes. Switch between tasks fast.
Reach Forward, Not Just Up
The boom extends forward. Place materials exactly where needed. No need to reposition the machine.
4WD for Rough Terrain
Works on mud, gravel, and uneven ground. Not limited to paved surfaces.
Higher Equipment Utilization
One machine does many jobs. No idle time waiting for the right equipment.
Stable and Safe
Wide wheelbase and counterweight. Overload protection system.
One Operator, Many Tasks
No need for multiple specialist operators. One person runs the machine for different jobs.
Attachments for Multi Attachment Telehandler
This telehandler works with many attachments:
| Attachment | Use | Best for |
| Standard forks | Pallet handling, bricks, blocks | General construction |
| Rotary forks | 360° rotation for precise placement | Tight spots |

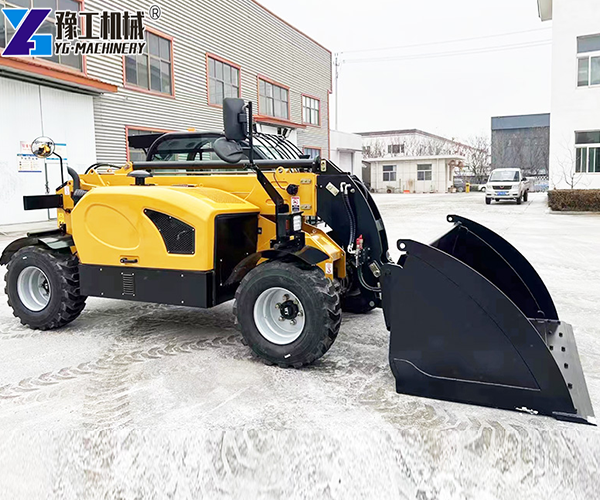

| Bucket | Sand, gravel, dirt | Site cleanup, material loading |
| Gripper | Irregular objects, logs, pipes | Demolition, forestry |
| Hook | Heavy suspended loads | Equipment placement |
| Work platform | Personnel lift | High access, maintenance |
| Timber clamp | Logs, lumber | Forestry, lumber yards |
One machine. Many attachments. One investment. Multiple returns.
Telehandler vs Traditional Forklift
| Aspect | Telehandler Forklift | Traditional Forklift |
| Lift direction | Vertical + forward | Vertical only |
| Reach over obstacles | Yes | No |
| Terrain ability | 4WD, rough terrain | Paved surfaces only |
| Attachments | 10+ types | 2-3 types |
| Best for | Construction sites, outdoors | Warehouses, loading docks |
| Lifting height | Up to 17.5m | Usually under 6m |
Choose a telehandler when your job needs reach, rough terrain, and multiple tasks.
Application of Construction Telehandler
This telehandler forklift works well in many industries:

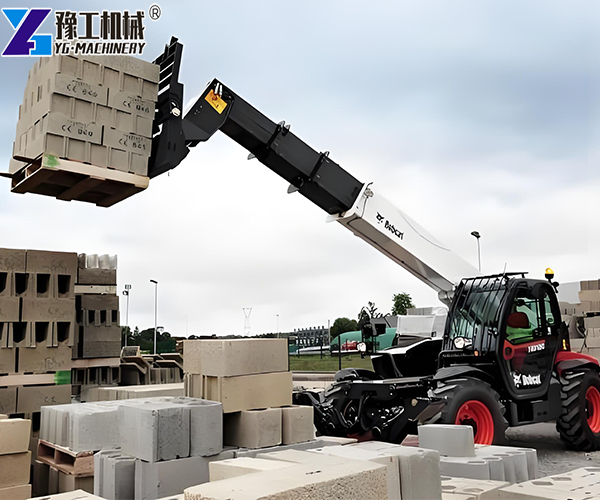

Construction sites – Move bricks, steel, concrete blocks to upper floors. Reach over scaffolding and obstacles.
Building material yards – Load and unload trucks. Stack materials in high racks.
Equipment rental businesses – One machine rents to contractors for many different jobs. High demand, good returns.
Warehouses – Load trailers. Access high racks. Move pallets across large spaces.
Docks and ports – Load containers. Move materials between ships and storage.
Industrial plants – Transport heavy components. Position equipment.
Infrastructure projects – Bridges, roads, tunnels. Materials need to reach hard-to-access areas.
Any job that needs lifting, reaching, and moving, this machine delivers.
Customer Case 1 – Construction Contractor, Texas
A general contractor in Texas was building a multi-story commercial building. The site had limited space. Materials needed to reach the second and third floors. A forklift could lift materials but could not reach over the building edge. A crane was too expensive for the project size.
The contractor bought a YG-TS1035 telehandler forklift. The telescopic boom reached 10m high and 5m forward. Materials went directly to the work area. No manual carrying. No waiting for a crane.
The project manager said: “We finished framing two weeks ahead of schedule. The telehandler paid for itself on this one job. We will use it on every project now.”
Customer Case 2 – Equipment Rental Company, Australia
An equipment rental company in Sydney needed to expand their fleet. Customers kept asking for telehandlers. The owner decided to add telehandler forklifts to the rental inventory.
They bought three YG-TS1440 units. Each unit rents out for construction, landscaping, and farm work. Different attachments go with each rental. Forks for pallet work. Bucket for site cleanup. Hook for lifting equipment. The same machine serves many customer needs.
The rental company owner said: “The telehandler is our most rented machine. Contractors love it because one machine does so many jobs. The ROI is better than any other equipment we own. We are ordering two more.”
FAQ
Q: How high can this telehandler forklift lift?
A: 10m, 13.5m, or 17.5m depending on model. Choose based on your building height.
Q: How far forward can the boom reach?
A: Up to 5m (TS1035), 8.5m (TS1440), or 13m (TS1850). Reach over obstacles to place materials exactly where needed.
Q: What attachments are available?
A: Forks, rotary forks, bucket, gripper, hook, work platform, timber clamp, and more.
Q: Can it replace a forklift?
A: Yes for outdoor and construction use. For pure warehouse pallet work, a standard forklift may be more efficient.
Q: Is it easy to change attachments?
A: Yes. Quick-change system. Swap attachments in minutes without tools.
Q: What is the price of a telehandler forklift?
A: Price depends on model, lift height, and attachments. Contact us for a quote based on your needs.
Why Choose YG Telehandler Forklift?
YG has been making construction equipment for over 15 years. Our telehandler forklifts feature telescopic booms, 4WD, and multi-attachment compatibility. Each machine is tested before shipping.
We offer YG-TS1035, YG-TS1440, and YG-TS1850 models. Lift height from 10m to 17.5m. Load capacity from 3.5 to 5 tons.
YG telehandler forklifts have been exported to the United States, Australia, Russia, and many other countries. We offer customized configurations for different markets. Cold weather kits for Russia. Special attachments for specific industries.
Our factory sells directly. No middleman. Spare parts are kept in stock. We provide technical support and after-sales service.
